ITEM NUMBER
MR1217TL
Cylindrical Roller Bearing - Separable Inner Ring w/ One Rib, Outer Ring w/ Two Retaining Rings
d—Bore
D150,000 mmOutside diameter
B85,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for MR1217TL
Units
Technical Specifications
- Type
- Cylindrical Roller Bearing
- Bore Type
- Round
- Material
- Hardened Alloy Steel
- Cage Material
- Composite Steel
- Configuration
- One
- Tolerance
- ISO Class 0 (RBEC 1)
- Oil Hole
- w/o Oil Hole
- Radial Internal Clearance
- CN
- Static Load Rating
- 194000 N 43500 lbf
- Dynamic Load Rating
- 154000 N 34500 lbf
- Enclosure
- Open
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF

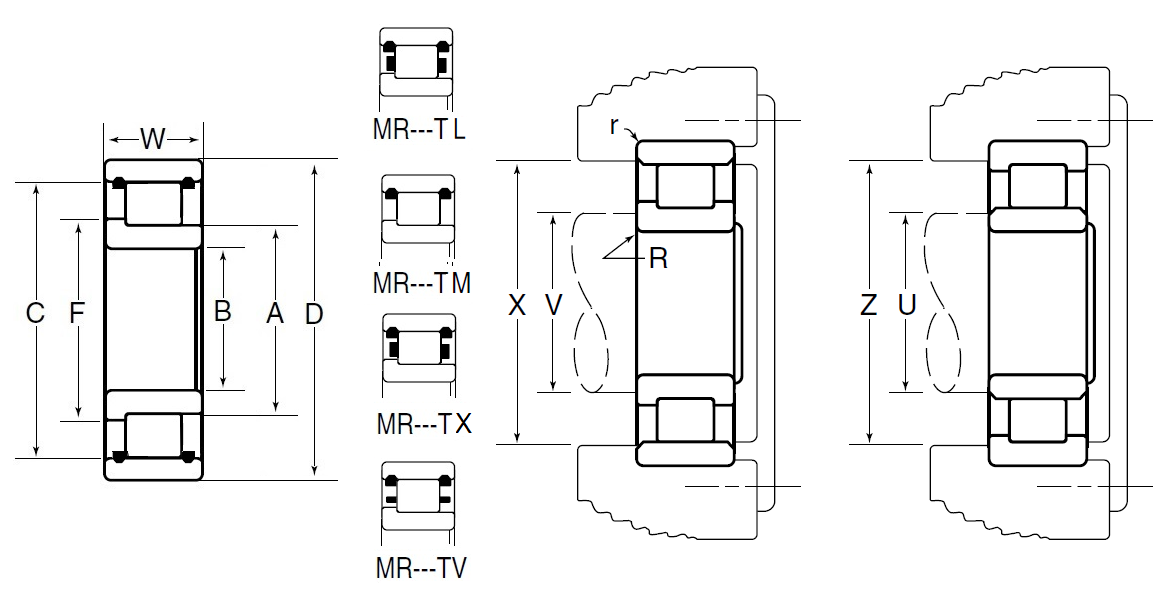

Dimensional Specifications
- B
- 85.000 mm 3.3465 in
- D
- 150.000 mm 5.9055 in
- W
- 28.000 mm 1.1024 in
- A
- 102.010 mm 4.0161 in
- C
- 134.210 mm 5.2839 in
- F
- 108.050 mm 4.2539 in
- R
- 3.180 mm 0.1252 in
- U (Plain Rings)
- 98.000 mm 3.8583 in
- V (Rib Rings)
- 101.900 mm 4.0118 in
- X (Plain Rings)
- 139.200 mm 5.4803 in
- Z (Rib Rings)
- 134.100 mm 5.2795 in
- r
- 2.030 mm 0.0799 in
