ITEM NUMBER
MU1209UGMR

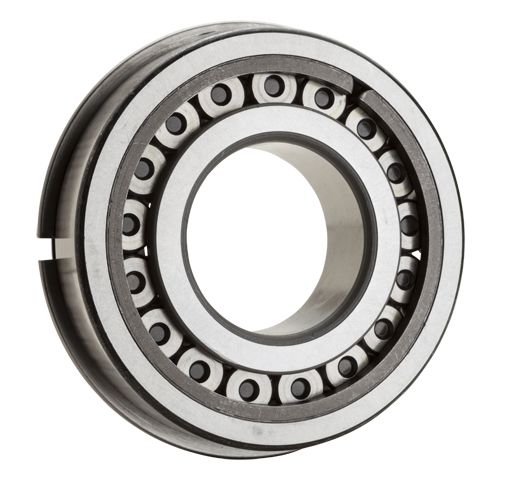

Non-Separable Type Bearing - Inner Ring w/ Two Ribs, Outer Ring w/ One Rib, Retaining Ring, Snap Ring
d—Bore
D85,000 mmOutside diameter
B45,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for MU1209UGMR
Units
Technical Specifications
- Type
- Cylindrical Roller Bearing
- Bore Type
- Round
- Material
- Hardened Alloy Steel
- Configuration
- One
- Tolerance
- ISO Class 0 (RBEC 1)
- Oil Hole
- w/o Oil Hole
- Radial Internal Clearance
- CN
- Static Load Rating
- 87000 N 19600 lbf
- Dynamic Load Rating
- 72000 N 16200 lbf
- Enclosure
- Open
- Weight
- 0.484 kg 1.067 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
Dimensional Specifications
- B
- 45.000 mm 1.7717 in
- D
- 85.000 mm 3.3465 in
- W
- 19.000 mm 0.7480 in
- C
- 74.980 mm 2.9520 in
- F
- 59.030 mm 2.3240 in
- H
- 71.810 mm 2.8272 in
- D1
- 81.810 mm 3.2209 in
- D2
- 91.290 mm 3.5941 in
- p
- 3.180 mm 0.1252 in
- f
- 1.650 mm 0.0650 in
- R
- 1.520 mm 0.0598 in
- U (Plain Rings)
- 52.800 mm 2.0787 in
- V (Rib Rings)
- 55.400 mm 2.1811 in
- X (Plain Rings)
- 78.200 mm 3.0787 in
- Z (Rib Rings)
- 74.900 mm 2.9488 in
- r
- 1.020 mm 0.0402 in
