Sealed-Spherical-Roller-Bearings-Tapered-Bore – MX-W22215EALLKD1C3

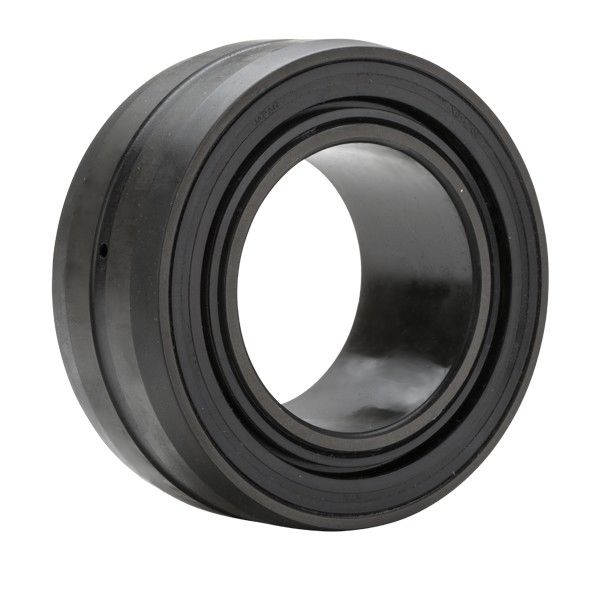

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNDouble Sealed

ITEM NUMBER

MX-W22215EALLKD1C3

Sealed Spherical Roller Bearings w/ Tapered Bore

d75,000 mmBore

D130,000 mmOutside diameter

B46,500 mmWidth

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for MX-W22215EALLKD1C3

Units

Technical Specifications

Type: Spherical Roller Bearing
Bore Type: Tapered
Material: Through Hardened Steel (IR/OR are phosphate coated)
Cage Type: Pressed
Cage Material: Steel
Limiting Speed - Grease: 2000 RPM
Taper: 1:12
Seal Material: Nitrile Rubber
Precision Rating: Standard
Ring Modification: Relube
Configuration: One
Radial Internal Clearance: C3
Static Load Rating: 249000 N
Dynamic Load Rating: 244000 N
Enclosure: Double Sealed
Weight: 2.059 kg
Operating Temperature Range: -40 to 200 ºC

Dimensional Specifications

d: 75.000 mm
D: 130.000 mm
B: 46.500 mm
r: 1.000 mm
W0: 7.000 mm
