Cylindrical-Roller-Bearing-Tapered-Bore-Inner-Ring-Two-Ribs-Plain-Outer-Ring – N1016KD1C1NAP4

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNIndustrial bearing

ITEM NUMBER

N1016KD1C1NAP4

Cylindrical Roller Bearing w/ Tapered Bore - Inner Ring w/ Two Ribs, Plain Outer Ring, Oil Hole

d80,000 mmBore

D125,000 mmOutside diameter

B22,000 mmWidth

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for N1016KD1C1NAP4

Units

Technical Specifications

Type: Cylindrical Roller Bearing
Bore Type: Tapered
Material: Hardened Alloy Steel
Cage Material: High Strength Machined Brass
Limiting Speed - Oil: 6700 RPM
Limiting Speed - Grease: 5700 RPM
Taper: 1:12
Bearing Design: Tapered Bore
Precision: ISO Class 4
Configuration: One
Oil Hole: w/ Oil Hole
Radial Internal Clearance: C1NA
Static Load Rating: 90500 N
Dynamic Load Rating: 72500 N
Weight: 0.960 kg
Operating Temperature Range: -40 to 120 ºC

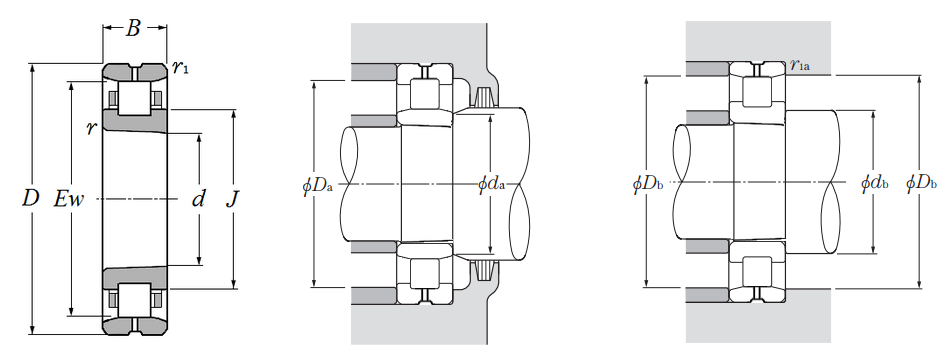

Dimensional Specifications

d: 80.000 mm
D: 125.000 mm
B: 22.000 mm
Ew: 113.500 mm
r: 1.100 mm
da min: 86.500 mm
db min: 114.000 mm
Db max: 118.500 mm
Db min: 114.000 mm
r1as max: 1.000 mm
