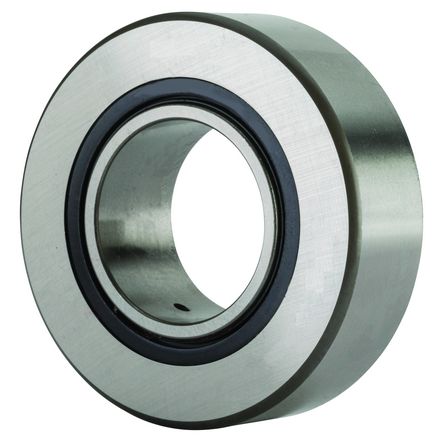

Roller-Follower-Yoke-Type-Track-Roller-Bearing-Inner-Ring-Double-Sealed-NA22-Type-Cylindrical-O.D – NA2203XLL

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNDouble Sealed

ITEM NUMBER

NA2203XLL

Roller Follower Yoke Type Track Roller Bearing w/ Inner Ring, Double Sealed, NA22 Type, Cylindrical O.D.

d17,000 mmBore

D—Outside diameter

B16,000 mmWidth

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for NA2203XLL

Units

Technical Specifications

Type: Yoke Type Track Roller
Roller Type: Needle
Bearing Type: Needle Roller Bearing
Material: High Carbon Chrome Steel
Cage Material: Steel
Outside Ring Type: Cylindrical
Limiting Speed - Grease: 7000 RPM
Enclosure: Double Sealed
Static Load Rating: 15600 N
Dynamic Load Rating: 10400 N
Load Rating of Track: 10900 N
Weight: 0.094 kg
Operating Temperature Range: -40 to 120 ºC

Dimensional Specifications

d: 17.000 mm
D (0/-0.050): 40.000 mm
F: 22.000 mm
e: 28.000 mm
C: 15.800 mm
B: 16.000 mm
r: 0.300 mm
