ITEM NUMBER
NKX20T2-1R17X20X20
Needle Roller Bearing with Thrust Ball Bearing - Open Type w/ Inner Ring
d17,000 mmBore
D30,000 mmOutside diameter
B20,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for NKX20T2-1R17X20X20
Units
Technical Specifications
- Type
- Complex Bearing
- Bore Type
- Round
- Configuration
- One
- Clearance
- CN
- Material
- High Carbon Chrome Steel
- Cage Material
- Nylon
- Limiting Speed - Oil
- 7500 RPM
- Limiting Speed - Grease
- 5200 RPM
- Precision
- ISO Class 0
- Enclosure
- Open
- Weight
- 0.100 kg 0.218 lb
- Axial Static Load Rating
- 24700 N 5550 lbf
- Axial Dynamic Load Rating
- 14200 N 3200 lbf
- Radial Static Load Rating
- 27100 N 6100 lbf
- Radial Dynamic Load Rating
- 16400 N 3700 lbf
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF

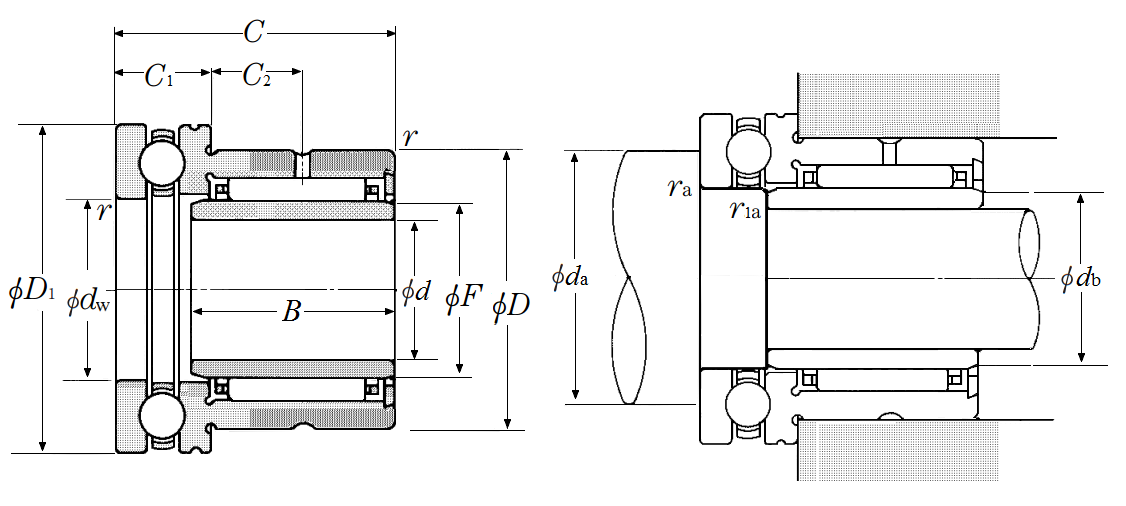

Dimensional Specifications
- d
- 17.000 mm 0.6690 in
- dw
- 20.000 mm 0.7874 in
- dw Tolerance
- 0.061/0.040 mm
- D
- 30.000 mm 1.1811 in
- D1
- 35.000 mm 1.3780 in
- B
- 20.000 mm 0.7874 in
- F
- 20.000 mm 0.7874 in
- C (0/-0.250)
- 30.000 mm 1.1811 in
- C1 (0/-0.20)
- 10.000 mm 0.3937 in
- C2
- 10.500 mm 0.4134 in
- r
- 0.300 mm 0.0118 in
- r1
- 0.300 mm 0.0118 in
- da min
- 29.000 mm 1.1417 in
- db min
- 19.000 mm 0.7480 in
- ras max
- 0.300 mm 0.0118 in
- r1as max
- 0.300 mm 0.0118 in
