ITEM NUMBER
PNA25-47R
Self-Aligning Needle Roller Bearing - w/ Inner Ring
d25,000 mmBore
D47,000 mmOutside diameter
B—Width
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for PNA25-47R
Units
Technical Specifications
- Type
- Self-Aligning Needle Roller Bearing
- Bore Type
- Round
- Material
- High Carbon Chrome Steel
- Cage Material
- Steel
- Limiting Speed - Oil
- 15000 RPM
- Limiting Speed - Grease
- 9000 RPM
- Precision
- ISO Class 0
- Configuration
- One
- Enclosure
- Open
- Bearing Design
- w/ Inner Ring
- Oil Hole
- w/ Oil Hole
- Radial Internal Clearance
- CN
- Static Load Rating
- 36000 N 8100 lbf
- Dynamic Load Rating
- 22900 N 5150 lbf
- Weight
- 0.157 kg 0.346 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF

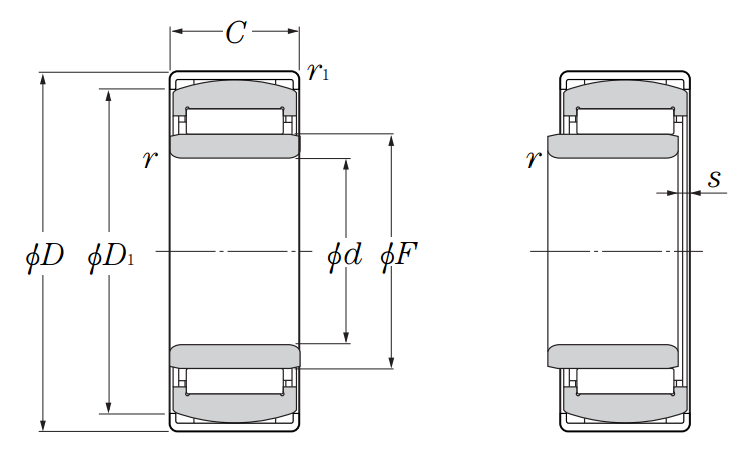

Dimensional Specifications
- d
- 25.000 mm 0.9843 in
- D
- 47.000 mm 1.8504 in
- F
- 30.000 mm 1.1811 in
- D1
- 42.000 mm 1.6535 in
- C
- 20.000 mm 0.7874 in
- s
- 0.500 mm 0.0197 in
- r
- 0.300 mm 0.0118 in
- r1
- 0.800 mm 0.0315 in
