Machined-Ring-Needle-Roller-Bearing-Inner-Ring-RNA48-RNA49-Series – RNA4828

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNOpen

ITEM NUMBER

RNA4828

Machined-Ring Needle Roller Bearing w/o Inner Ring - RNA48, RNA49 Series

d—Bore

D175,000 mmOutside diameter

B—Width

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for RNA4828

Units

Technical Specifications

Type: Needle Roller Bearing
Roller Type: Needle
Configuration: One
Material: High Carbon Chrome Steel
Cage Material: Steel
Limiting Speed - Oil: 2600.0 RPM
Limiting Speed - Grease: 1700 RPM
Precision: ISO Class 0
Enclosure: Open
Static Load Rating: 315000 N
Dynamic Load Rating: 121000 N
Weight: 1.020 kg
Operating Temperature Range: -40 to 120 ºC

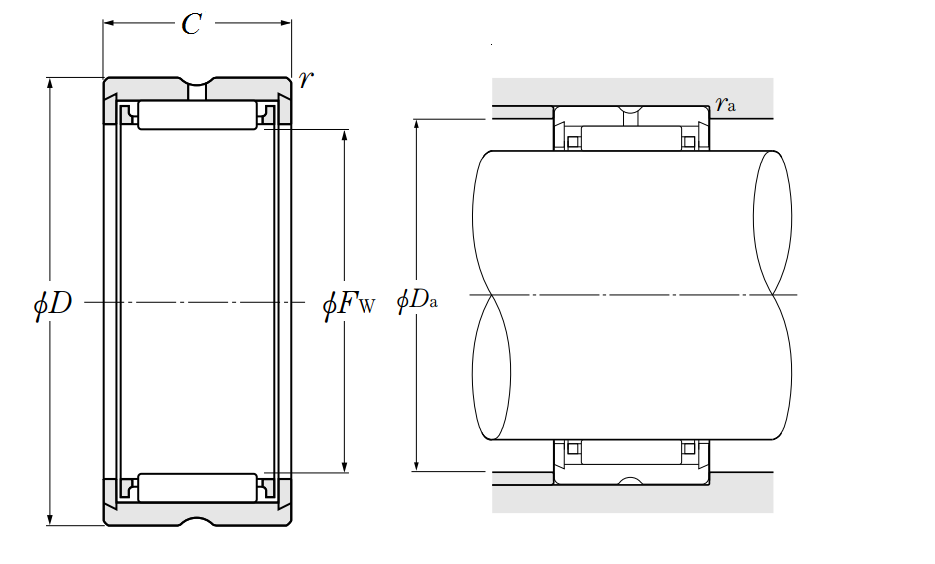

Dimensional Specifications

Fw: 155.000 mm
Fw Tolerance: 0.068/0.043 mm
D: 175.000 mm
C: 35.000 mm
r: 1.100 mm
Da max: 168.500 mm
ras max: 1.000 mm
