Machined-Ring-Needle-Roller-Bearing-Inner-Ring-RNA49-Series-Double-Sealed – RNA4902LL

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNDouble Sealed

ITEM NUMBER

RNA4902LL

Machined-Ring Needle Roller Bearing w/o Inner Ring - RNA49 Series, Double Sealed

d—Bore

D28,000 mmOutside diameter

B—Width

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for RNA4902LL

Units

Technical Specifications

Type: Needle Roller Bearing
Roller Type: Needle
Configuration: One
Material: High Carbon Chrome Steel
Cage Material: Steel
Limiting Speed - Grease: 10000 RPM
Precision: ISO Class 0
Enclosure: Double Sealed
Static Load Rating: 11200 N
Dynamic Load Rating: 8300 N
Weight: 0.022 kg
Operating Temperature Range: -40 to 120 ºC

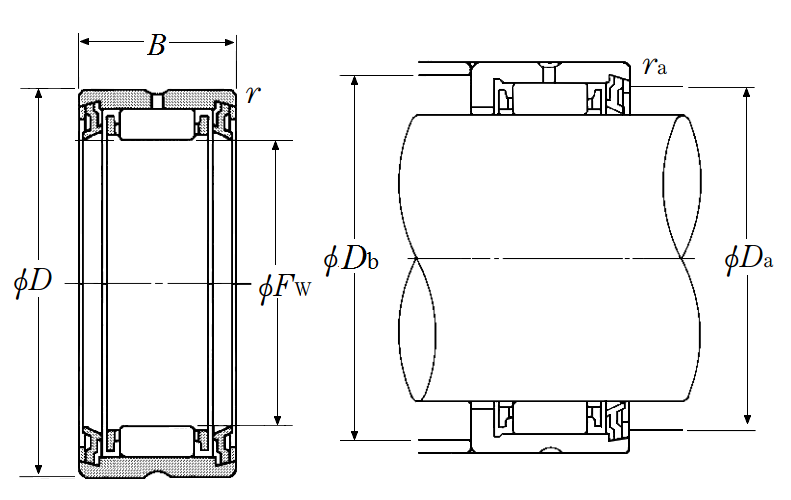

Dimensional Specifications

Fw: 20.000 mm
Fw Tolerance: 0.033/0.020 mm
D: 28.000 mm
C: 13.000 mm
r: 0.300 mm
Da max: 22.000 mm
Db max: 26.000 mm
ras max: 0.300 mm
