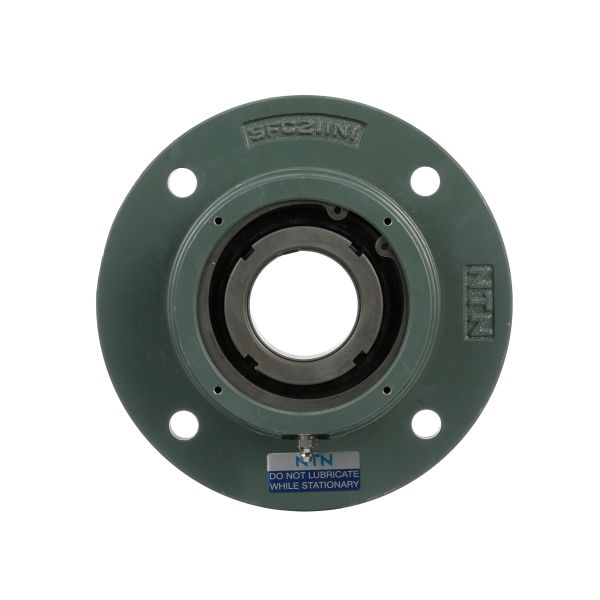

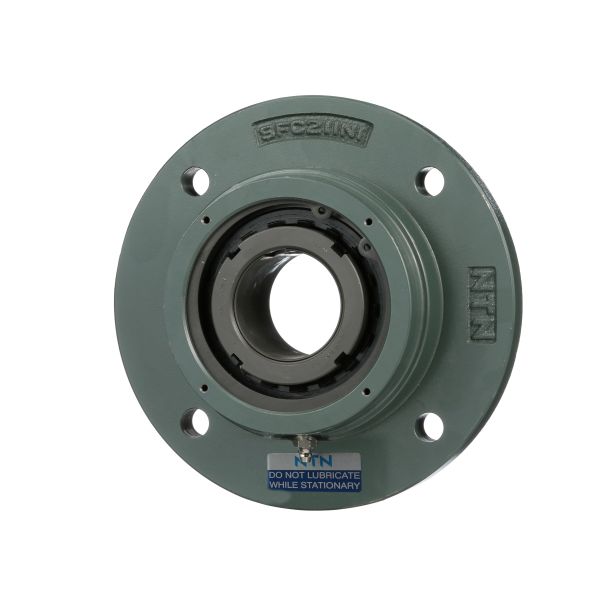

The image is shared by items with the same configuration; specifications on this page belong to this item.
ITEM NUMBER
SFCW2222-315N1
Sealed Spherical Flange Blocks, SFCW Type
d100,013 mmBore
D—Outside diameter
B—Width
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for SFCW2222-315N1
Units
Technical Specifications
- Type
- 4-Bolt Round Flanged Unit
- Bearing Type
- Spherical Roller Bearing
- Locking Device
- Adapter
- Seal Material
- Nitrile Rubber
- Bearing Number
- MX-W22222EALLKW33C3
- Housing Number
- SFC222N1
- Adapter Sleeve Number
- HA2322M1
- Housing Material
- Ductile Iron
- Housing Construction
- 1 Piece
- Performance
- Heavy Duty
- End Type
- Open
- Dynamic Load Rating
- 602000 N 135336 lbf
- Static Load Rating
- 643000 N 144553 lbf
- Rotational Speed [Max]
- 1400 RPM
- Operating Temperature Range
- -40 to 200 ºC -40 to 400 ºF
- Lubrication
- Relubricatable
Guidelines for Mounting
- Axial Displacement - Min.
- 0.030 in
- Axial Displacement - Max.
- 0.043 in
- Recommended Locknut Rotation
- 180 º
- Hydraulic Pressure - Min.
- 2650 lb/in²
- Hydraulic Pressure - Max.
- 3700 lb/in²
Shaft Tolerance
- Shaft Tolerance
- nominal to -87 µm nominal to .-003 in
Dimensional Specifications
- d
- 100.013 mm 3.9380 in
- a
- 365.0 mm 14.3701 in
- b
- 100.0 mm 3.9370 in
- c
- 32.0 mm 1.2598 in
- m
- 310.0 mm 12.2047 in
- f
- 255.0 mm 10.0000 in
- j
- 42.0 mm 1.6535 in
- s
- 20.0 mm 0.7874 in
- Notes
- Sales drawing reflects "Bore Size w/o Adapter". They do not show the "d"dimension, which is the bore size with adapter
