ITEM NUMBER
SUCT205-16

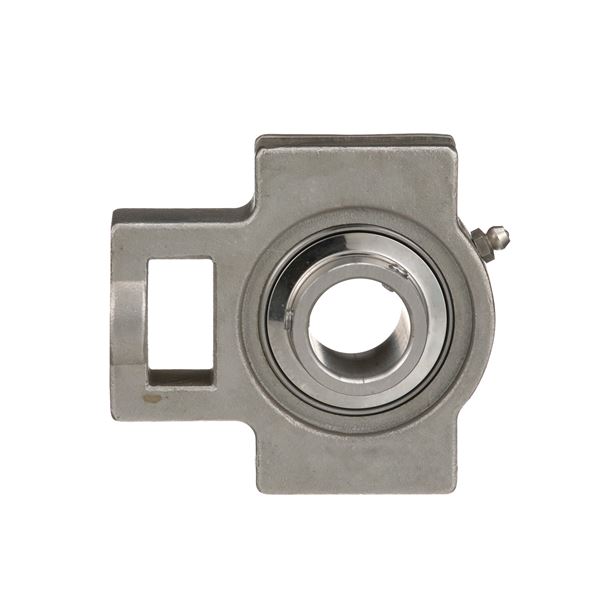

Take-Up Unit, Set Screw, Stainless Steel Housing, SUCT Type
d25,400 mmBore
D—Outside diameter
B34,100 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for SUCT205-16
Units
Technical Specifications
- Type
- Take-Up Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Set Screw
- Seal Type
- Contact
- Seal Material
- Silicone
- Bearing Number
- SUC205-16
- Housing Number
- ST205N
- Insert Material
- Stainless Steel
- Housing Material
- Stainless Steel
- Performance
- Normal Duty
- Dynamic Load Rating
- 11000 N 2473 lbf
- Static Load Rating
- 8000 N 1798 lbf
- Rotational Speed [Max]
- 5100 RPM
- Weight
- 0.960 kg 2.117 lb
- Operating Temperature Range
- -20 to 120 ºC -4 to 250 ºF
- Lubrication
- Outer Ring
Specifications
- Lubrication
- Outer Ring
- Ball Material
- Stainless Steel
- Outside Diameter
- 52.000 mm 2.0470 in
- Bore Type
- Cylindrical
- Outside Ring Width
- 17.000 mm 0.6690 in
- Inside Ring Width
- 34.100 mm 1.3430 in
- Clearance
- CN
- Cage Material
- Stainless Steel
- Precision Rating
- ISO Class 0
- Radial Dynamic Load Rating
- 11000 N 2473 lbf
- Radial Static Load Rating
- 8000 N 1798 lbf
- Rotational Speed [Max]-Grease
- 4800 RPM
Dimensional Specifications
- d
- 25.400 mm 1.0000 in
- L
- 97.0 mm 3.8100 in
- H
- 89.0 mm 3.5000 in
- H1
- 76.0 mm 3.0000 in
- H2
- 51.0 mm 2.0000 in
- L1
- 62.0 mm 2.4400 in
- L2
- 10.0 mm 0.3800 in
- L3
- 51.0 mm 2.0000 in
- N
- 19.0 mm 0.7500 in
- N1
- 16.0 mm 0.6300 in
- N2
- 32.0 mm 1.2500 in
- A
- 32.0 mm 1.2500 in
- A1
- 12.0 mm 0.4700 in
- A2
- 24.0 mm 0.9400 in
- B
- 34.100 mm 1.3425 in
- S
- 14.300 mm 0.5630 in
