ITEM NUMBER
UCC203D1
Cartridge Unit, Cast Housing, Set Screw, UCC Type
d17,000 mmBore
D—Outside diameter
B31,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for UCC203D1
Units
Technical Specifications
- Type
- Cylindrical Cartridge Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Set Screw
- Seal Type
- Contact
- Bearing Number
- UC203D1
- Housing Number
- C204D1
- Bearing Material
- Through Hardened Steel
- Housing Material
- Cast Iron
- Performance
- Light Duty
- Dynamic Load Rating
- 12800 N 2880 lbf
- Static Load Rating
- 6650 N 1500 lbf
- Rotational Speed [Max]
- 8000.0 RPM
- Weight
- 0.500 kg 1.100 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Relubricatable

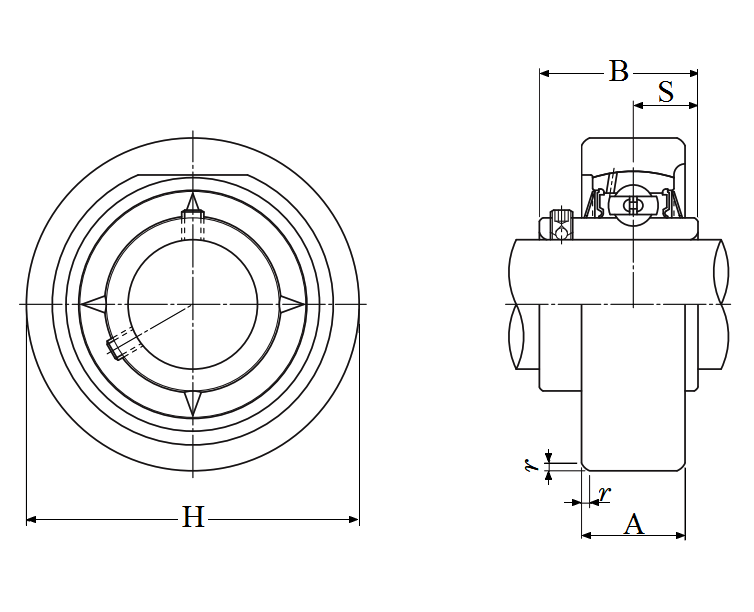

Dimensional Specifications
- d
- 17.000 mm 0.6693 in
- A
- 20.0 mm 0.7874 in
- H
- 72.0 mm 2.8346 in
- r
- 2.0 mm 0.0787 in
- B
- 31.000 mm 1.2205 in
- S
- 12.700 mm 0.5000 in
- F
- 4.700 mm 0.1850 in
