ITEM NUMBER
UCFA211-202D1

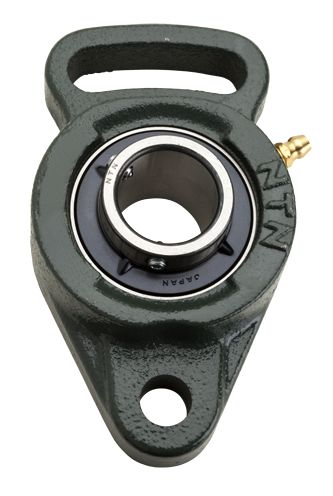

Two Bolt Rhombus Flanged Unit, Cast Housing, Set Screw, UCFA Type
d53,975 mmBore
D—Outside diameter
B55,600 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for UCFA211-202D1
Units
Technical Specifications
- Type
- 2-Bolt Rhombus Flanged Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Set Screw
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Bearing Number
- UC211-202D1
- Housing Number
- FA211D1
- Housing Material
- Cast Iron
- Housing Construction
- 1 Piece
- End Type
- Open
- Performance
- Light Duty
- Dynamic Load Rating
- 43500 N 9800 lbf
- Static Load Rating
- 29200 N 6550 lbf
- Rotational Speed [Max]
- 2900 RPM
- Weight
- 2.900 kg 6.400 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Relubricatable
Dimensional Specifications
- d
- 53.975 mm 2.1250 in
- H
- 216.0 mm 8.5000 in
- L
- 130.0 mm 5.1250 in
- L1
- 102.0 mm 4.0313 in
- J
- 182.0 mm 7.1562 in
- A
- 43.0 mm 1.6875 in
- A0
- 59.400 mm 2.3437 in
- A1
- 20.0 mm 0.7812 in
- A2
- 26.0 mm 1.0313 in
- N
- 17.0 mm 0.6719 in
- N1
- 85.0 mm 3.3437 in
- B
- 55.600 mm 2.1890 in
- S
- 22.200 mm 0.8740 in
- F
- 6.000 mm 0.2362 in
