ITEM NUMBER
UCFC212-205D1

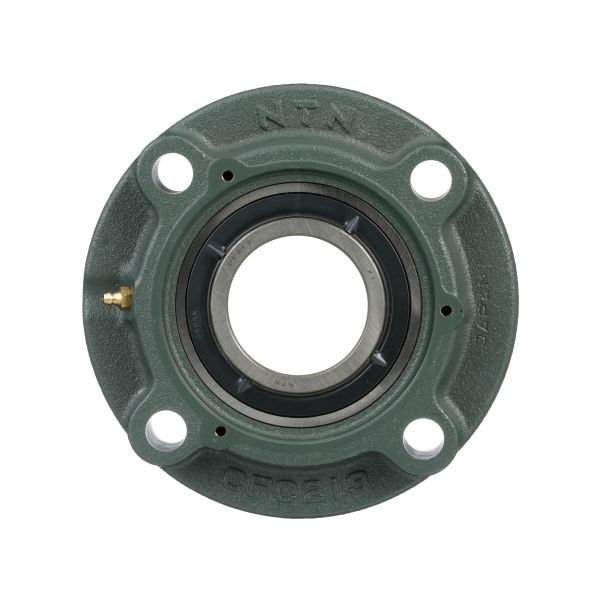

Four Bolt Round Flange Unit, Cast Housing, Set Screw, UCFC Type
d58,738 mmBore
D—Outside diameter
B65,100 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for UCFC212-205D1
Units
Technical Specifications
- Type
- 4-Bolt Round Flanged Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Set Screw
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Bearing Number
- UC212-205D1
- Housing Number
- FC212D1
- Housing Material
- Cast Iron
- Housing Construction
- 1 Piece
- End Type
- Open
- Performance
- Light Duty
- Dynamic Load Rating
- 52500 N 11800 lbf
- Static Load Rating
- 36000 N 8100 lbf
- Rotational Speed [Max]
- 2500.0 RPM
- Weight
- 5.160 kg 11.380 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Relubricatable

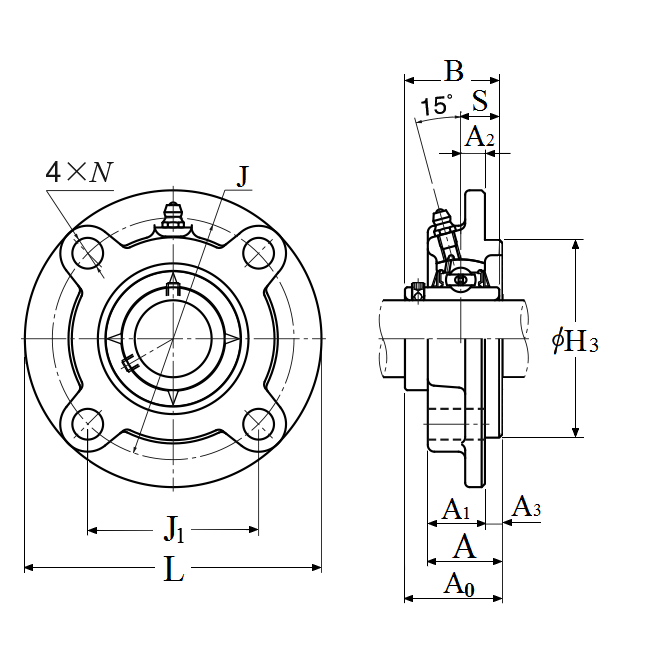

Dimensional Specifications
- d
- 58.738 mm 2.3125 in
- L
- 195.0 mm 7.6875 in
- J
- 160.0 mm 6.2969 in
- J1
- 113.1 mm 4.4531 in
- A
- 48.0 mm 1.8906 in
- A0
- 68.700 mm 2.7031 in
- A1
- 36.0 mm 1.4062 in
- A2
- 17.0 mm 0.6719 in
- A3
- 12.0 mm 0.4724 in
- H3
- 135.0 mm 5.3150 in
- N
- 19.0 mm 0.7500 in
- B
- 65.100 mm 2.5630 in
- S
- 25.400 mm 1.0000 in
- F
- 6.200 mm 0.2441 in
