ITEM NUMBER
UCFLU-1-13-16
Ultra-Class Two Bolt Flanged Unit, Set Screw, UCFLU Type
d46,038 mmBore
D—Outside diameter
B51,600 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for UCFLU-1-13-16
Units
Technical Specifications
- Type
- 2-Bolt Rhombus Flanged Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Set Screw
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Bearing Number
- A-UC210-113D1
- Housing Number
- FLU209D1V50
- Housing Material
- Cast Iron
- Housing Construction
- 1 Piece
- End Type
- Open
- Finish/Coating
- Black Oxide
- Performance
- Light Duty
- Dynamic Load Rating
- 35000 N 7850 lbf
- Static Load Rating
- 23200 N 5200 lbf
- Max Tightening Torque
- 69 lb·in
- Rotational Speed [Max]
- 3100.0 RPM
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Relubricatable

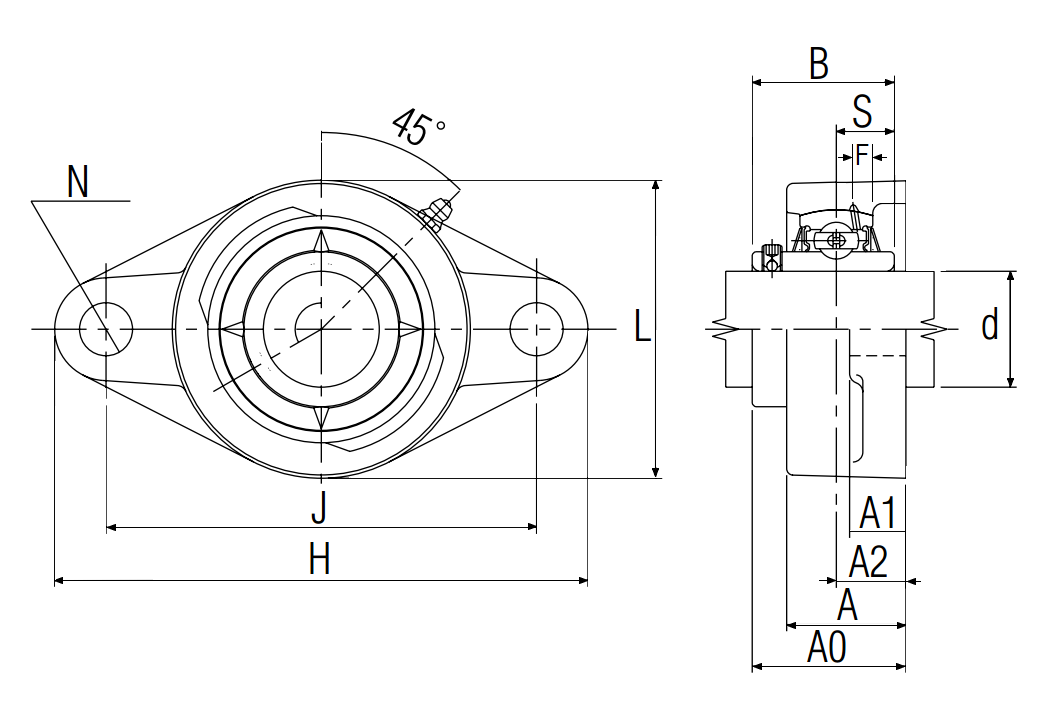

Dimensional Specifications
- d
- 46.038 mm 1-13/16 in
- H
- 180.2 mm 7.0938 in
- L
- 111.1 mm 4.3750 in
- J
- 148.4 mm 5.8438 in
- A
- 39.7 mm 1.5625 in
- A0
- 60.700 mm 2.3906 in
- A1
- 18.3 mm 0.7188 in
- A2
- 23.8 mm 0.9375 in
- N
- 13.1 mm 0.5156 in
- B
- 51.600 mm 2.0315 in
- S
- 19.000 mm 0.7480 in
- F
- 5.900 mm 0.2323 in
