ITEM NUMBER
UCHB206-102D1

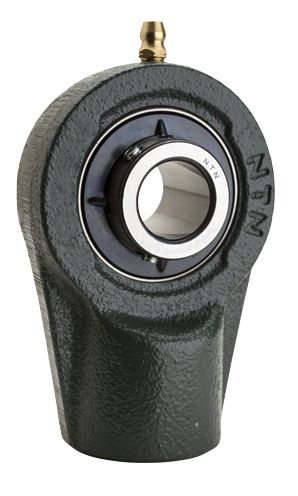

Hanger Unit, Cast Housing, Set Screw, UCHB Type
d28,575 mmBore
D40,000 mmOutside diameter
B38,100 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for UCHB206-102D1
Units
Technical Specifications
- Type
- Hanger Bearing Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Set Screw
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Bearing Number
- UC206-102D1
- Housing Number
- HB206D1
- Housing Material
- Cast Iron
- Performance
- Light Duty
- Dynamic Load Rating
- 19500 N 4400 lbf
- Static Load Rating
- 11300 N 2540 lbf
- Rotational Speed [Max]
- 4900 RPM
- Weight
- 0.800 kg 1.800 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Relubricatable
Dimensional Specifications
- d
- 28.575 mm 1.1250 in
- L
- 78.0 mm 3.0625 in
- H
- 64.0 mm 2.5156 in
- H1
- 103.0 mm 4.0625 in
- A
- 28.0 mm 1.0937 in
- D
- 40.0 mm 1.5625 in
- N
- Rp 3/4
- j
- 19.0 mm 0.7500 in
- c
- 0.0 mm 0 in
- B
- 38.100 mm 1.5000 in
- S
- 15.900 mm 0.6260 in
- F
- 4.600 mm 0.1811 in
