The image is shared by items with the same configuration; specifications on this page belong to this item.
ITEM NUMBER
UCL207-30D1
Stretcher Unit, Set Screw, UCL Type
d35,000 mmBore
D—Outside diameter
B42,900 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for UCL207-30D1
Units
Technical Specifications
- Type
- Stretcher Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Set Screw
- Bearing Number
- UC207D1
- Frame Number
- L207-30
- Performance
- Light Duty
- Dynamic Load Rating
- 25700 N 5800 lbf
- Static Load Rating
- 15300 N 3450 lbf
- Max. Recommended Load
- 4210 N 945 lbf
- Rotational Speed [Max]
- 4200 RPM
- Weight
- 9.200 kg 20.283 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Relubricatable

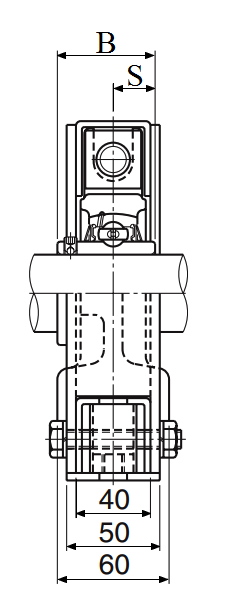

Dimensional Specifications
- d
- 35.000 mm 1.3780 in
- H
- 92.0 mm 3.6220 in
- H1
- 176.0 mm 6.9291 in
- L
- 660.0 mm 25.9843 in
- L1
- 550.0 mm 21.6535 in
- J
- 600.0 mm 23.6220 in
- J1
- 150.0 mm 5.9055 in
- J2
- 300.0 mm 11.8110 in
- B
- 42.900 mm 1.6890 in
- S
- 17.500 mm 0.6890 in
- F
- 4.600 mm 0.1811 in
