Bearing-Insert-Set-Screw-Wide-Inner-Ring-Cylindrical -OD – UCS312-206D1

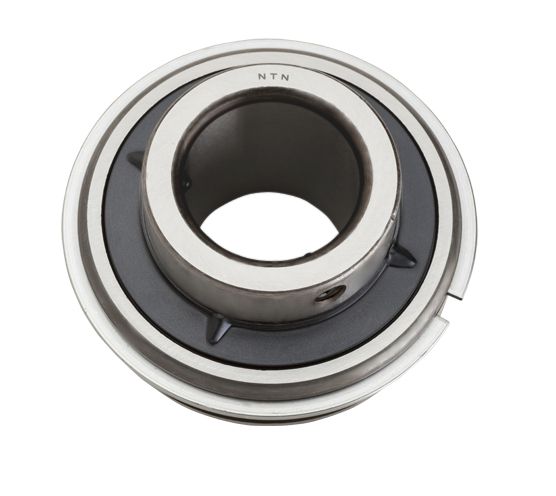

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNDouble Sealed

ITEM NUMBER

UCS312-206D1

Bearing Insert w/ Set Screw, Wide Inner Ring - Cylindrical O.D.

d60,325 mmBore

D130,000 mmOutside diameter

B71,000 mmWidth

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for UCS312-206D1

Units

Technical Specifications

Type: Insert Bearing
Bore Type: Round
Bearing Type: Ball Bearing
Material: Through Hardened Steel
Ball Material: Steel
Limiting Speed - Grease: 2400 RPM
Seal Type: Contact
Seal Material: Nitrile Rubber
Performance: Heavy Duty
Locking Device: 2 -120° Set Screw
Lubrication: Re-Lubricatable
Static Load Rating: 52000 N
Dynamic Load Rating: 82000 N
Enclosure: Double Sealed
Weight: 2.672 kg
Operating Temperature Range: -40 to 120 ºC

Dimensional Specifications

d: 60.325 mm
D: 130.000 mm
C: 36.000 mm
B: 71.000 mm
r: 2.500 mm
ds: 1/2-20 UNF
G: 12.000 mm
d4: 82.700 mm
S1: 45.000 mm
S: 26.000 mm
