ITEM NUMBER
UELS205-013D1NR
Bearing Insert w/ Eccentric Locking Collar, Wide Inner Ring - Cylindrical O.D., Snap Ring
d20,638 mmBore
D52,000 mmOutside diameter
B34,900 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for UELS205-013D1NR
Units
Technical Specifications
- Type
- Insert Bearing
- Bore Type
- Round
- Bearing Type
- Ball Bearing
- Material
- Through Hardened Steel
- Ball Material
- Steel
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Performance
- Standard Duty
- Locking Device
- Eccentric Locking Collar
- Lubrication
- Relubricatable
- Collar Number
- EL205
- Basic Outer Ring
- 205
- Radial Internal Clearance
- CN
- Static Load Rating
- 7850 N 1760 lbf
- Dynamic Load Rating
- 14000 N 3150 lbf
- Enclosure
- Double Sealed
- Weight
- 0.272 kg 0.600 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF

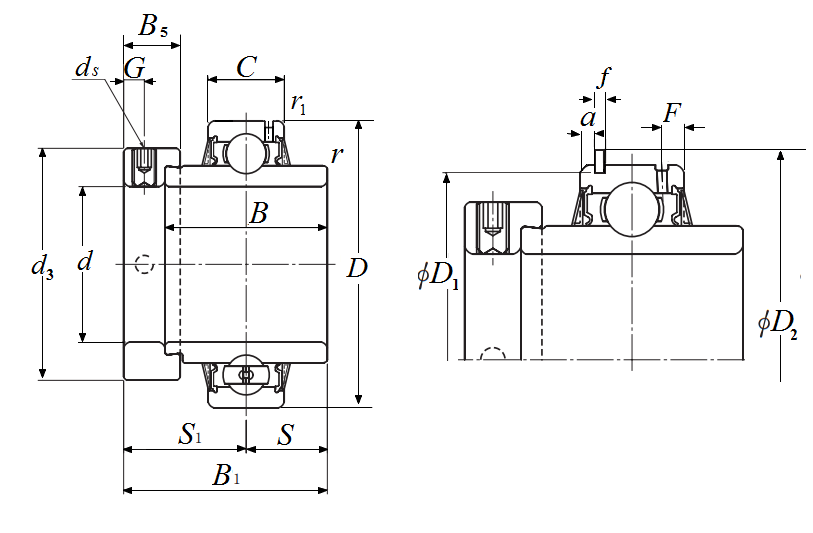

Dimensional Specifications
- d
- 20.638 mm 0.8125 in
- D
- 52.000 mm 2.0472 in
- C
- 17.000 mm 0.6693 in
- B
- 34.900 mm 1.3740 in
- B1
- 43.700 mm 1.7205 in
- r
- 0.600 mm 0.0236 in
- ds
- 1/4-28 UNF
- G
- 4.800 mm 0.1890 in
- d3
- 38.000 mm 1.4961 in
- B5
- 13.500 mm 0.5315 in
- S1
- 26.900 mm 1.0591 in
- S
- 17.500 mm 0.6890 in
- F
- 4.100 mm 0.1614 in
- r1
- 1.000 mm 0.0394 in
- a
- 3.200 mm 0.1260 in
- D1
- 49.730 mm 1.9579 in
- D2
- 57.9 mm 2.2795 in
- f
- 1.500 mm 0.0591 in
