ITEM NUMBER
UKFLX05D1-WHEN-USED-WITH-H2305X

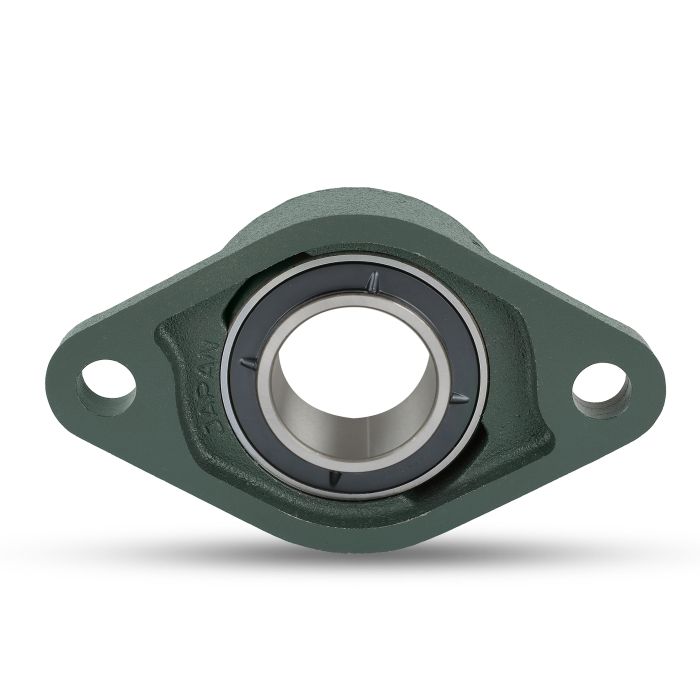

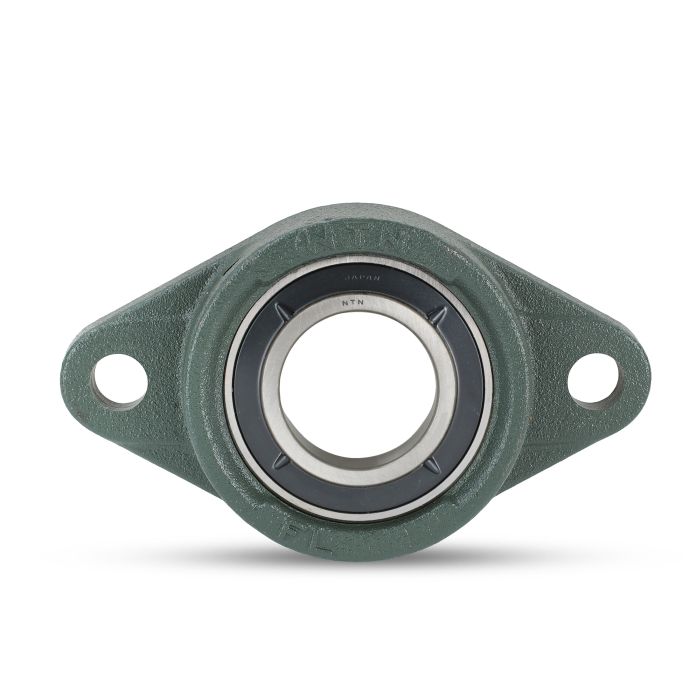

Two Bolt Rhombus Flanged Unit, Cast Housing, Adapter, UKFL Type
d20,000 mmBore
D—Outside diameter
B—Width
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for UKFLX05D1-WHEN-USED-WITH-H2305X
Units
Technical Specifications
- Type
- 2-Bolt Rhombus Flanged Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Adapter
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Bearing Number
- UKX05D1
- Housing Number
- FLX05D1
- Housing Material
- Cast Iron
- Housing Construction
- 1 Piece
- End Type
- Open
- Performance
- Medium Duty
- Dynamic Load Rating
- 19500 N 4400 lbf
- Static Load Rating
- 11300 N 2540 lbf
- Weight
- 1.000 kg 2.200 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Relubricatable

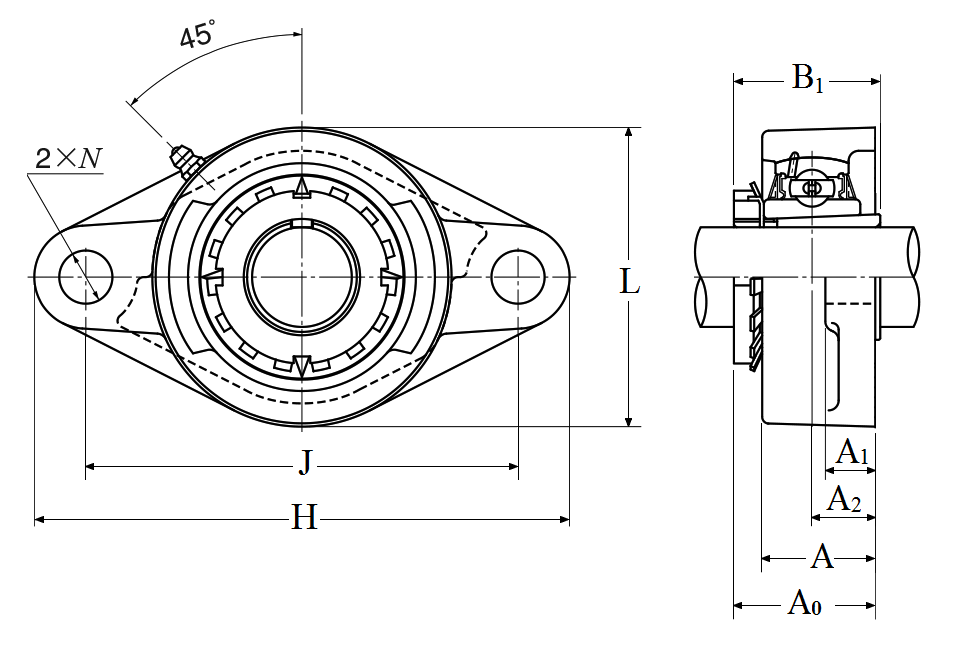

Dimensional Specifications
- d
- 20.000 mm 0.7874 in
- H
- 141.0 mm 5.5625 in
- L
- 83.0 mm 3.2812 in
- J
- 117.0 mm 4.6094 in
- A
- 30.0 mm 1.1875 in
- A0
- 39.000 mm 1.5312 in
- A1
- 13.0 mm 0.5000 in
- A2
- 18.0 mm 0.7031 in
- N
- 12.0 mm 0.4687 in
- B1
- 35.000 mm 1.4960 in
- F
- 4.600 mm 0.1811 in
- Notes
- Sales drawing reflects "Bore Size w/o Adapter". They do not show the "d"dimension, which is the bore size with adapter
