ITEM NUMBER
ZUCP207-20
Pillow Block Unit, Stainless Steel Housing, Set Screw, ZUCP Type
d31,750 mmBore
D—Outside diameter
B42,900 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for ZUCP207-20
Units
Technical Specifications
- Type
- Pillow Block Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Set Screw
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Bearing Number
- ZUC207-20FG
- Housing Number
- SP207N
- Insert Material
- Zinc Plated Through Hardened Steel
- Housing Material
- Stainless Steel
- Housing Construction
- 1 Piece
- Performance
- Light Duty
- End Type
- Open
- Dynamic Load Rating
- 25800 N 5800 lbf
- Static Load Rating
- 15200 N 3417 lbf
- Weight
- 1.920 kg 4.234 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Relubricatable

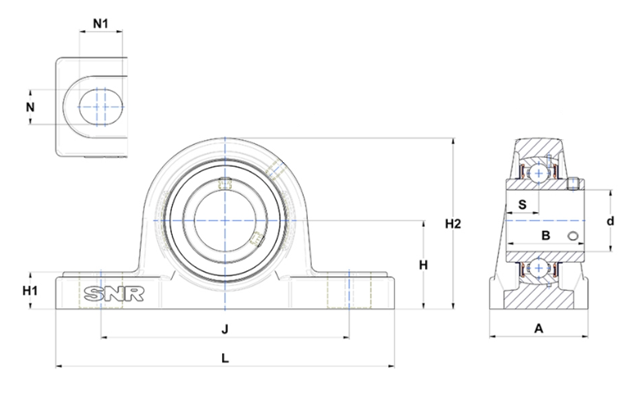

Dimensional Specifications
- d
- 31.750 mm 1.2500 in
- J
- 127.0 mm 5.0000 in
- L
- 167.0 mm 6.5700 in
- A
- 48.0 mm 1.8900 in
- H
- 47.6 mm 1.8700 in
- H1
- 19.0 mm 0.7500 in
- H2
- 94.0 mm 3.7000 in
- N
- 17.0 mm 0.6700 in
- N1
- 21.0 mm 0.8300 in
- B
- 42.900 mm 1.6890 in
- S
- 17.500 mm 0.6890 in
