ITEM NUMBER
ZUCPPL205-16

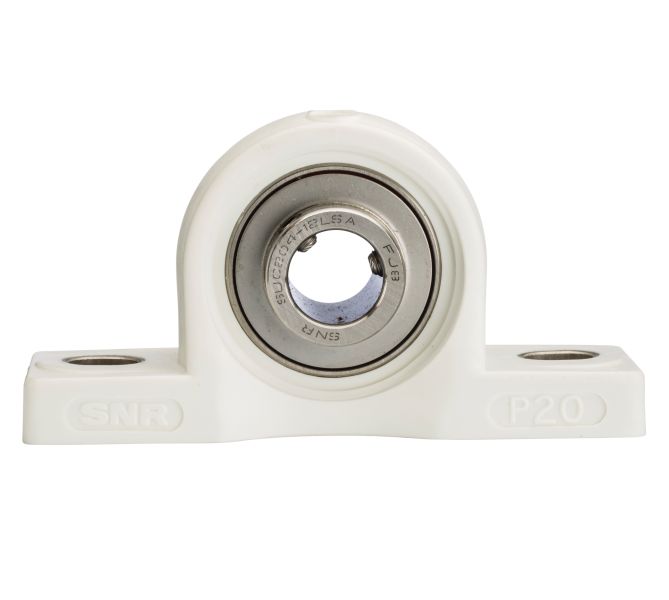

Pillow Block Unit, Thermoplastic Housing, Set Screw, ZUCPPL Type
d25,400 mmBore
D—Outside diameter
B34,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for ZUCPPL205-16
Units
Technical Specifications
- Type
- Pillow Block Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Set Screw
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Bearing Number
- ZUC205-16FG
- Housing Number
- WPPL205
- Insert Material
- Zinc Plated Through Hardened Steel
- Housing Material
- Thermoplastic
- Housing Construction
- 1 Piece
- Performance
- Light Duty
- End Type
- Open
- Dynamic Load Rating
- 14000 N 3147 lbf
- Static Load Rating
- 7900 N 1776 lbf
- Weight
- 0.320 kg 0.706 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Relubricatable
Dimensional Specifications
- d
- 25.400 mm 1.0000 in
- J
- 105.0 mm 4.1300 in
- L
- 140.0 mm 5.5100 in
- A
- 38.0 mm 1.5000 in
- H
- 36.5 mm 1.4400 in
- H1
- 14.5 mm 0.5700 in
- H2
- 71.0 mm 2.8000 in
- N
- 11.0 mm 0.4300 in
- N1
- 14.0 mm 0.5500 in
- B
- 34.000 mm 1.3386 in
- S
- 14.300 mm 0.5630 in
