PRODUCT INFORMATION
Description and selection guidance

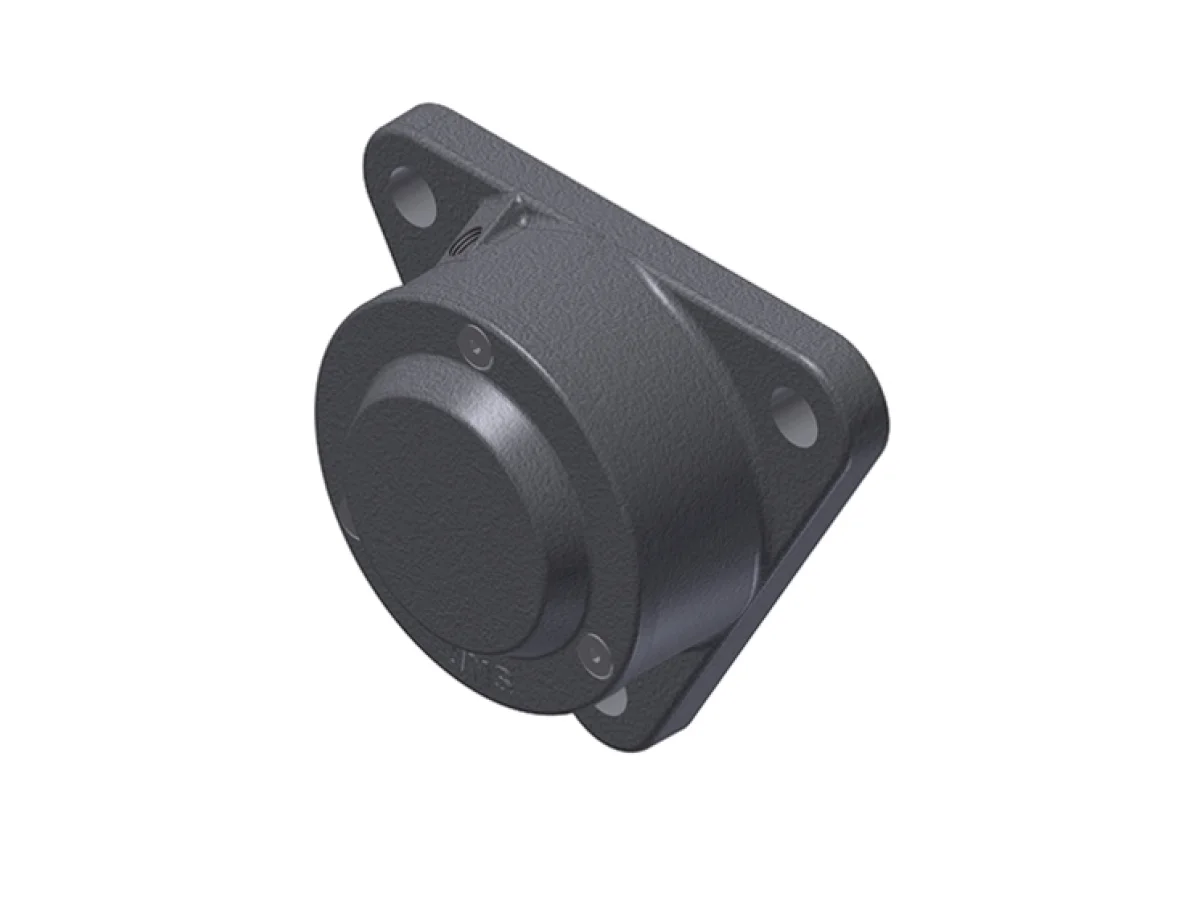

Flanged housing made of ductile cast iron for through or end shaft
722510 DA specifications
PRODUCT DEFINITION
- Brand
- SNR
- d - Shaft diameter
- 45 mm
- D1 - Outer diameter cover
- 118 mm
- a - Housing length
- 180 mm
- c - Housing foot height
- 12 mm
- h - Bearing center height
- 60 mm
- h1 - Housing height
- 160 mm
- l1 - Housing width over covers
- 68,5 mm
- m - Mounting hole/punches distance (length)
- 160 mm
- N - Mounting hole diameter
- 14 mm
- D - Bearing seat diameter
- 90 mm
- W2 - Base to shaft end distance
- 60 mm
- Mass
- 3 kg
- Material of Housing
- grey cast
BOLTS
- G - Fixing bolts
- M12
- Recommended torque fixing bolts
- 65 N-m
- Cover bolts
- M6x20
- Recommended torque cover bolts
- 7 N-m
ASSOCIATED COMPONENTS - GENERAL
- Feltstrip
- FS 6 x 5 x 180
ASSOCIATED COMPONENTS - OPTION 1
- Bearing
- 1210 K C3
- Adapter sleeve
- H210
- Fixing ring (x1)
- FR90x5x3
ASSOCIATED COMPONENTS - OPTION 2
- Bearing
- 2210 K C3
- Adapter sleeve
- H310
- Fixing ring (x1)
- FE90x80x2
ASSOCIATED COMPONENTS - OPTION 3
- Bearing
- 22210 K
- Adapter sleeve
- H310
- Fixing ring (x1)
- FE90x80x2
