PRODUCT INFORMATION
Description and selection guidance

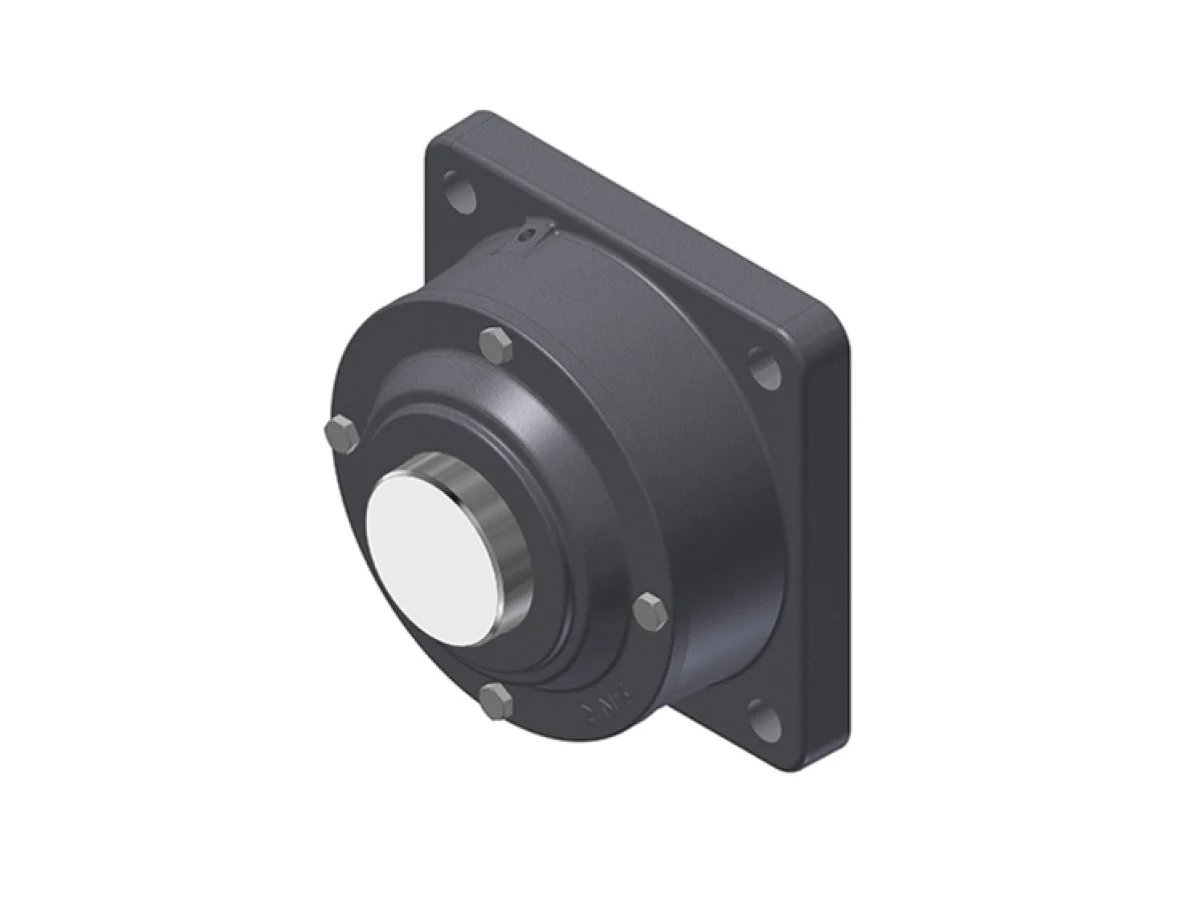

Flanged housing made of ductile cast iron for through or end shaft
722515 B specifications
PRODUCT DEFINITION
- Brand
- SNR
- d - Shaft diameter
- 65 mm
- D1 - Outer diameter cover
- 168 mm
- a - Housing length
- 190 mm
- c - Housing foot height
- 25 mm
- h - Bearing center height
- 95 mm
- l1 - Housing width over covers
- 104 mm
- m - Mounting hole/punches distance (length)
- 152 mm
- N - Mounting hole diameter
- 17,5 mm
- D - Bearing seat diameter
- 130 mm
- Mass
- 9,4 kg
- Material of Housing
- grey cast
BOLTS
- G - Fixing bolts
- M16
- Recommended torque fixing bolts
- 150 N-m
- Cover bolts
- M8x25
- Recommended torque cover bolts
- 17 N-m
ASSOCIATED COMPONENTS - GENERAL
- Feltstrip
- FS 8 x 6,5 x 260
ASSOCIATED COMPONENTS - OPTION 1
- Bearing
- 1215 K C3
- Adapter sleeve
- H215
- Fixing ring (x2)
- FR130x8x4
ASSOCIATED COMPONENTS - OPTION 2
- Bearing
- 2215 K C3
- Adapter sleeve
- H315
- Fixing ring (x1)
- FR130x10x4
ASSOCIATED COMPONENTS - OPTION 3
- Bearing
- 22215 K
- Adapter sleeve
- H315
- Fixing ring (x1)
- FR130x10x4
