Images and specifications are matched to the NTN-SNR item number; Cat Son verifies the configuration before quotation.
PRODUCT INFORMATION
Description and selection guidance
Flanged housing made of ductile cast iron for through or end shaft

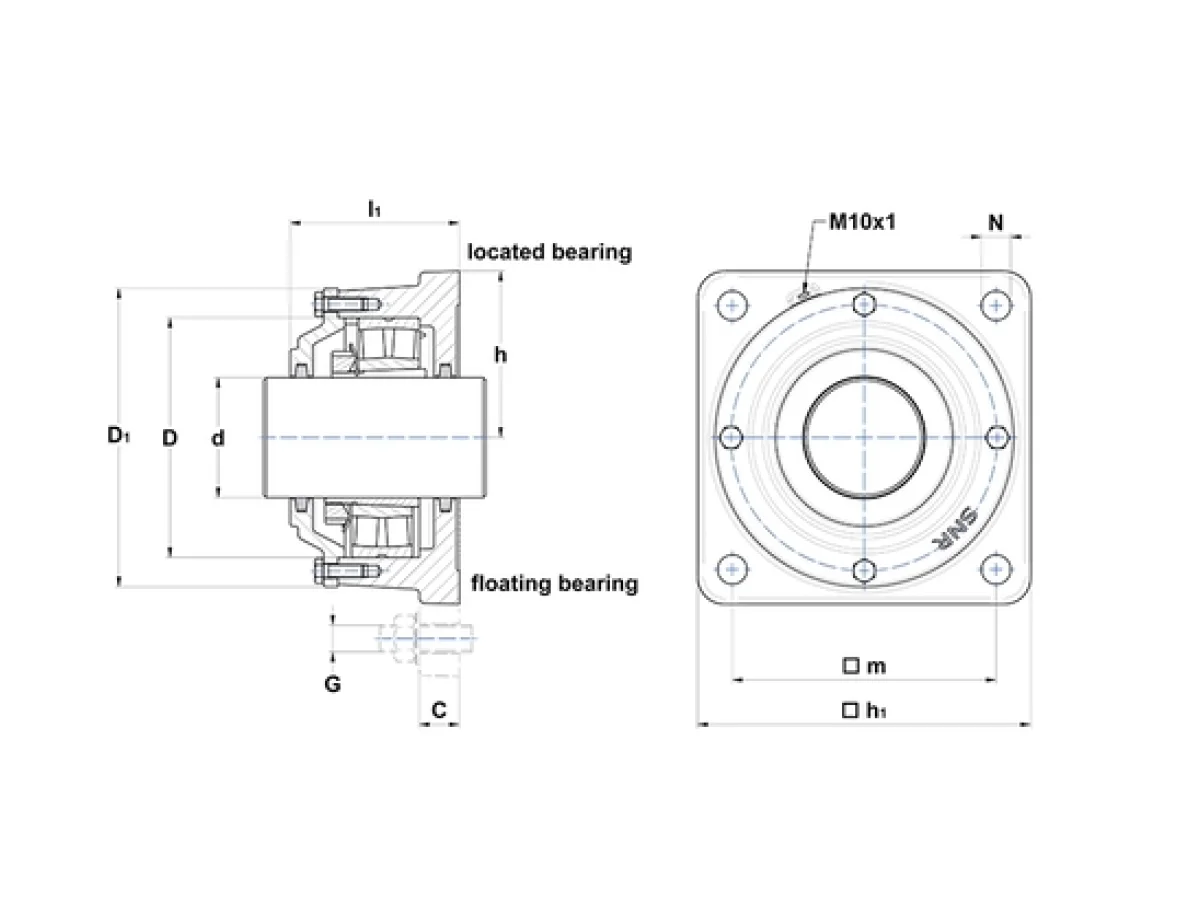

722518 B specifications
PRODUCT DEFINITION
- Brand
- SNR
- d - Shaft diameter
- 80 mm
- D1 - Outer diameter cover
- 198 mm
- a - Housing length
- 210 mm
- c - Housing foot height
- 25 mm
- h - Bearing center height
- 105 mm
- l1 - Housing width over covers
- 118 mm
- m - Mounting hole/punches distance (length)
- 170 mm
- N - Mounting hole diameter
- 18 mm
- D - Bearing seat diameter
- 160 mm
- Mass
- 12,5 kg
- Material of Housing
- grey cast
BOLTS
- G - Fixing bolts
- M16
- Recommended torque fixing bolts
- 150 N-m
- Cover bolts
- M8x25
- Recommended torque cover bolts
- 17 N-m
ASSOCIATED COMPONENTS - GENERAL
- Feltstrip
- FS 9 x 7,5 x 315
ASSOCIATED COMPONENTS - OPTION 1
- Bearing
- 1218 K C3
- Adapter sleeve
- H218
- Fixing ring (x2)
- FR160x10x5
ASSOCIATED COMPONENTS - OPTION 2
- Bearing
- 2218 K C3
- Adapter sleeve
- H318
- Fixing ring (x1)
- FR160x10x5
ASSOCIATED COMPONENTS - OPTION 3
- Bearing
- 22218 K
- Adapter sleeve
- H318
- Fixing ring (x1)
- FR160x10x5
