PRODUCT INFORMATION
Description and selection guidance

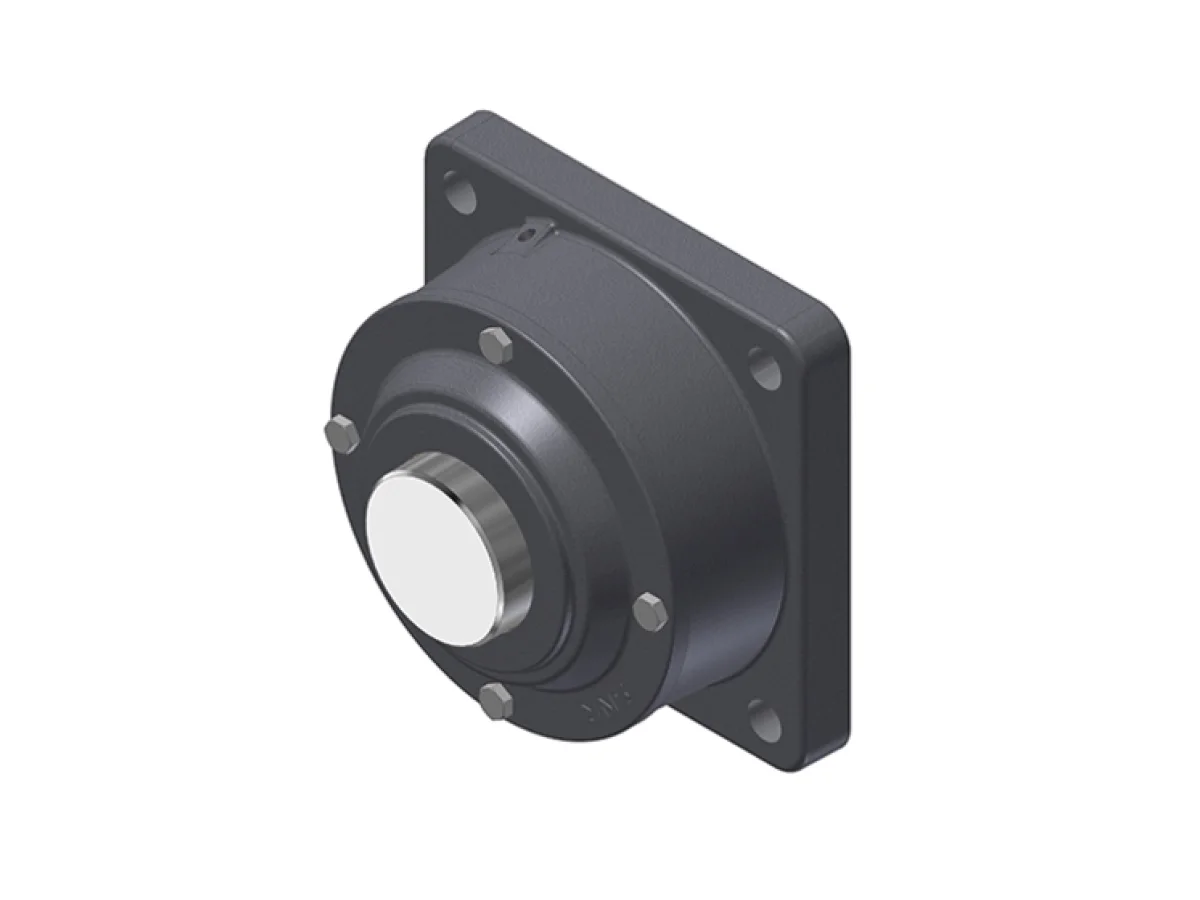

Flanged housing made of ductile cast iron for through or end shaft
722520 B specifications
PRODUCT DEFINITION
- Brand
- SNR
- d - Shaft diameter
- 90 mm
- D1 - Outer diameter cover
- 224 mm
- a - Housing length
- 250 mm
- c - Housing foot height
- 30 mm
- h - Bearing center height
- 125 mm
- l1 - Housing width over covers
- 127 mm
- m - Mounting hole/punches distance (length)
- 198 mm
- N - Mounting hole diameter
- 22 mm
- D - Bearing seat diameter
- 180 mm
- Mass
- 18 kg
- Material of Housing
- grey cast
BOLTS
- G - Fixing bolts
- M20
- Recommended torque fixing bolts
- 290 N-m
- Cover bolts
- M10x30
- Recommended torque cover bolts
- 35 N-m
ASSOCIATED COMPONENTS - GENERAL
- Feltstrip
- FS 10 x 8,5 x 350
ASSOCIATED COMPONENTS - OPTION 1
- Bearing
- 1220 K C3
- Adapter sleeve
- H220
- Fixing ring (x1)
- FR180x10x5+180x12x5
ASSOCIATED COMPONENTS - OPTION 2
- Bearing
- 2220 K C3
- Adapter sleeve
- H320
- Fixing ring (x1)
- FR180x10x5
ASSOCIATED COMPONENTS - OPTION 3
- Bearing
- 22220 K
- Adapter sleeve
- H320
- Fixing ring (x1)
- FR180x10x5
