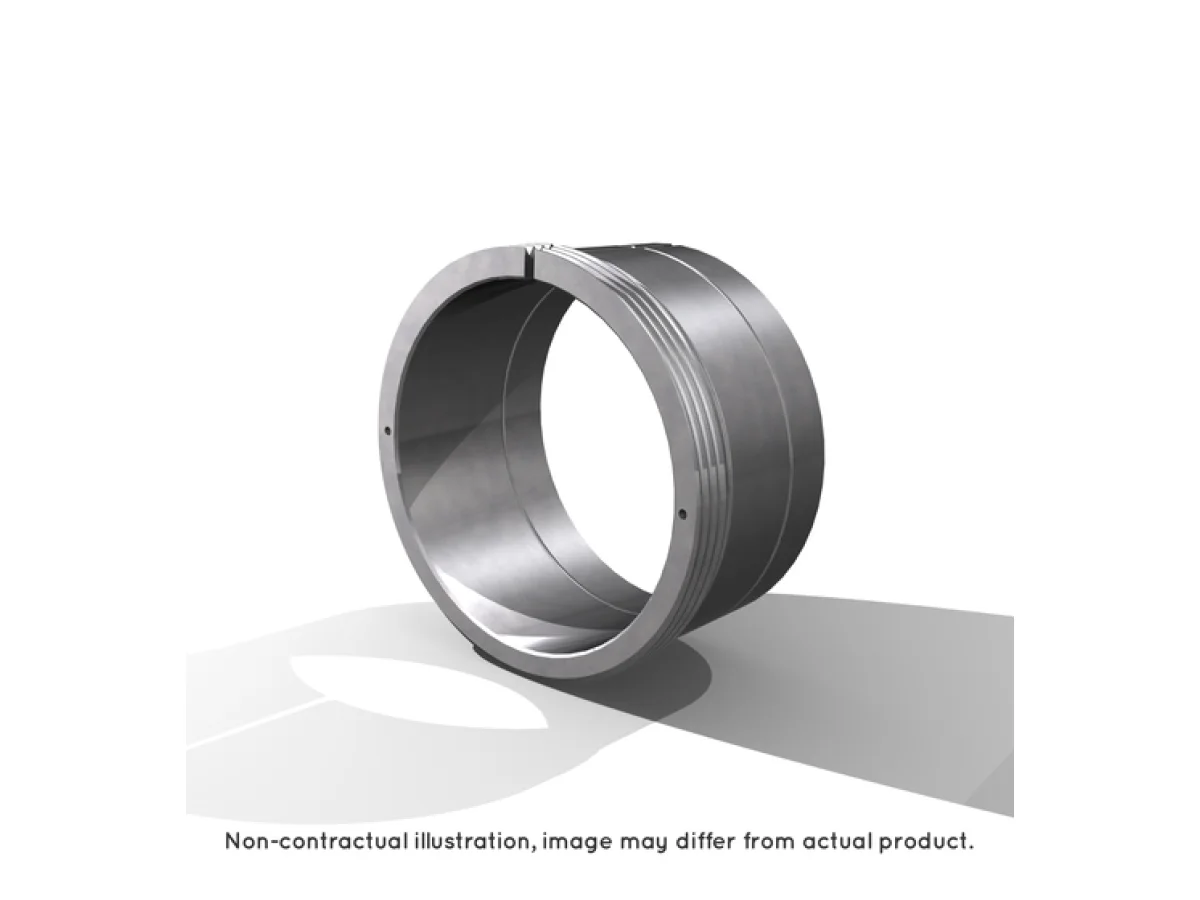

NTN-SNR Withdrawal Sleeve AOHX32/560 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.
AOHX32/560 specifications
PRODUCT DEFINITION
- Brand
- SNR
- d1 - Sleeve bore diameter
- 530 mm
- d - Internal diameter
- 560 mm
- B1 - Sleeve length
- 422 mm
- B4 - Overall dismantling length
- 434 mm
- G - Thread designation
- Tr600X6
- lG - Sleeve thread length
- 57 mm
- G1 - Designation of tapping holes for oil injection
- G1/4
- lG1 - Tapping length of oil injection holes
- 15 mm
- a - Distance to bore of oil injection hole
- 11 mm
- Mass
- 140 kg
TECHNICAL CHARACTERISTICS
- Associated bearing
- 232/560
- Bore
- Conique 1:12
CROSS SELLING
- Designation of the associated nut
- HM31/600
- Designation of the associated blocking device
- MS30/530
- Designation of the nut
- HM30/530
- Designation of the associated hydraulic nut
- HMV120 EBF
