Images and specifications are matched to the NTN-SNR item number; Cat Son verifies the configuration before quotation.
PRODUCT INFORMATION
Description and selection guidance
NTN-SNR Withdrawal Sleeve AOHX3292G is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.
AOHX3292G specifications
PRODUCT DEFINITION
- Brand
- SNR

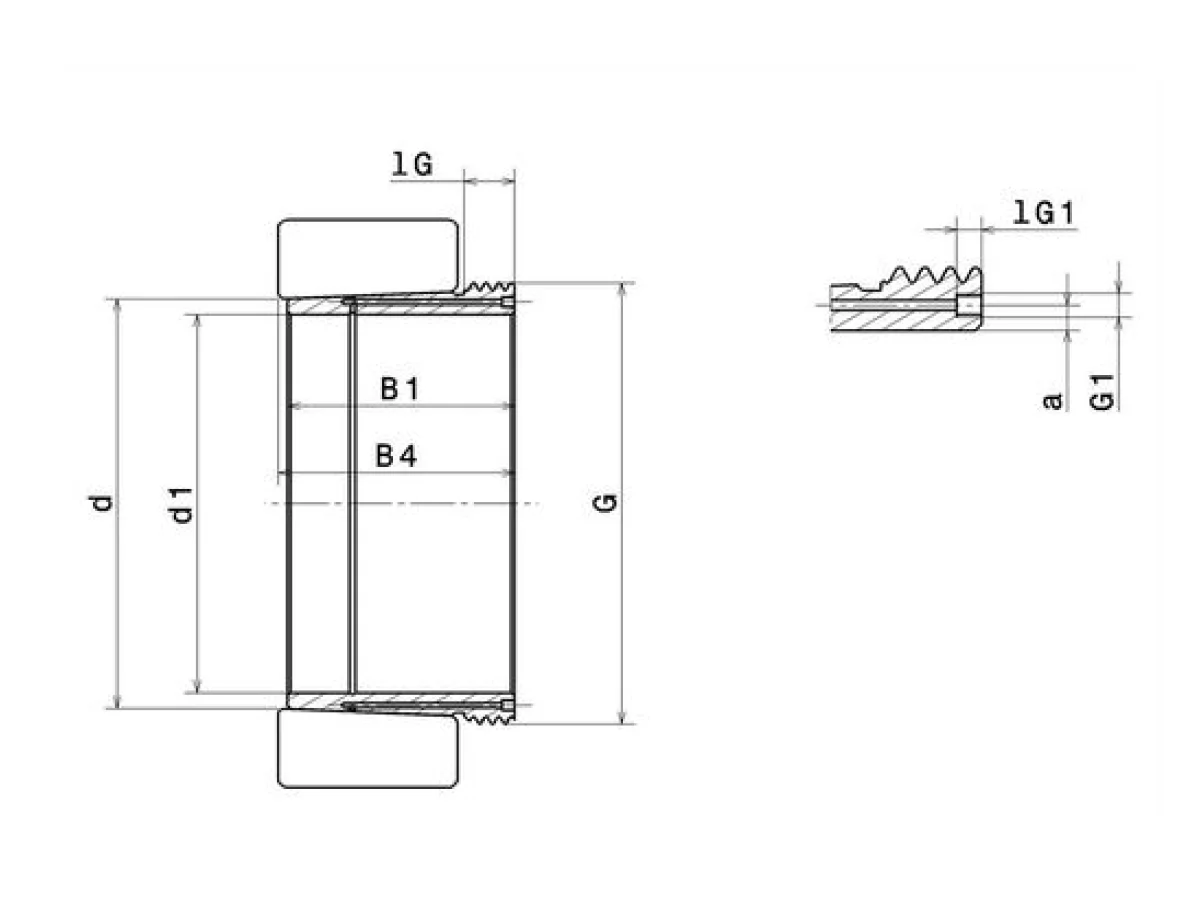

- d1 - Sleeve bore diameter
- 440 mm
- d - Internal diameter
- 460 mm
- B1 - Sleeve length
- 349 mm
- B4 - Overall dismantling length
- 360 mm
- G - Thread designation
- Tr480X5
- lG - Sleeve thread length
- 50 mm
- G1 - Designation of tapping holes for oil injection
- G1/4
- lG1 - Tapping length of oil injection holes
- 15 mm
- a - Distance to bore of oil injection hole
- 9 mm
- Mass
- 66,3 kg
TECHNICAL CHARACTERISTICS
- Associated bearing
- 23292
- Bore
- Conique 1:12
CROSS SELLING
- Designation of the associated nut
- HM3196
- Designation of the associated blocking device
- MS3088
- Designation of the nut
- HM3088
- Designation of the associated hydraulic nut
- HMV96 EBF
NTN-SNR ITEM SUPPORT
Send the current item and operating conditions.
Cat Son can compare dimensions, design and mounting conditions before quotation.
