Images and specifications are matched to the NTN-SNR item number; Cat Son verifies the configuration before quotation.
PRODUCT INFORMATION
Description and selection guidance
Super ball bushings are characterized by the ability to compensate misalignments of up to ± 0.5 °. Super ball bushings are available in closed and open versions.

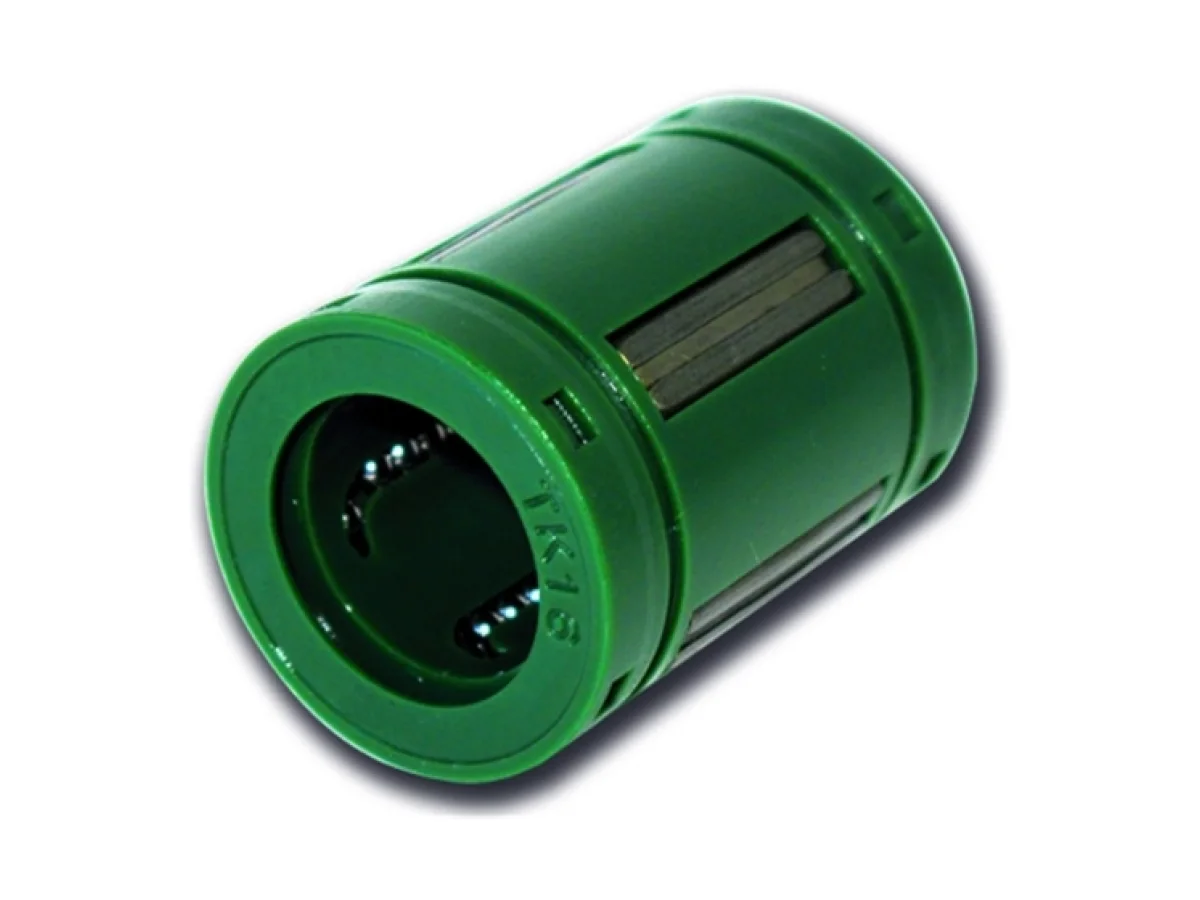

BBET16UU specifications
PRODUCT DEFINITION
- Brand
- SNR
- Design type
- BBET
- Ball bushings category
- Super ball bushings, closed
- Standard
- ISO dimension
- Number of seals
- 2
- Material outer cylinder or steel segments
- 100Cr6
- Material Cage
- PA
- Initial greasing
- Non/No
- Re-lubricable
- Oui/Yes
- d - Internal diameter
- 16 mm
- d - Internal diameter tolerance
- 0,009/-0,001
- D - External diameter
- 26 mm
- L - Length
- 36 mm
- L - Length tolerance
- 0,2/-0,2
- L1
- 24,9 mm
- L1 tolerance
- 0/-0,2
- D1 - Diameter
- 24,9 mm
- L2
- 1,3 mm
- Diameter F H11
- 3 mm
- J
- 1 mm
- Number of ball rows
- 5
- Mass
- 0,043 kg
PRODUCT PERFORMANCE
- Cmin
- 1250000 mN
- Cmax
- 1829000 mN
- C0min
- 1550000 mN
- C0max
- 2268000 mN
- Tmin - Min operating temperature
- 253,15 °K
- Tmax - Max operating temperature
- 353,15 °K
NTN-SNR ITEM SUPPORT
Send the current item and operating conditions.
Cat Son can compare dimensions, design and mounting conditions before quotation.
