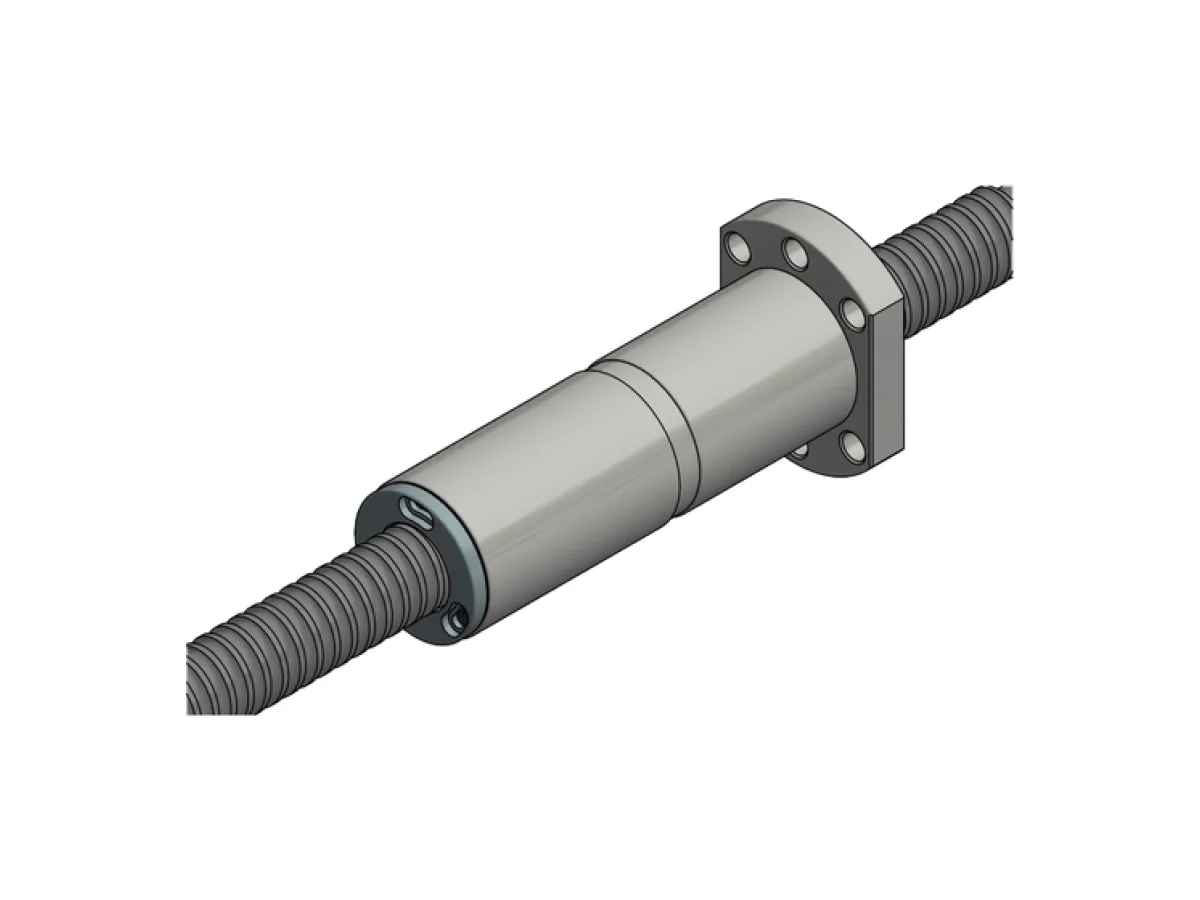

NTN-SNR Ball Screw BNU03210RDCLL3B-B0 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.
BNU03210RDCLL3B-B0 specifications

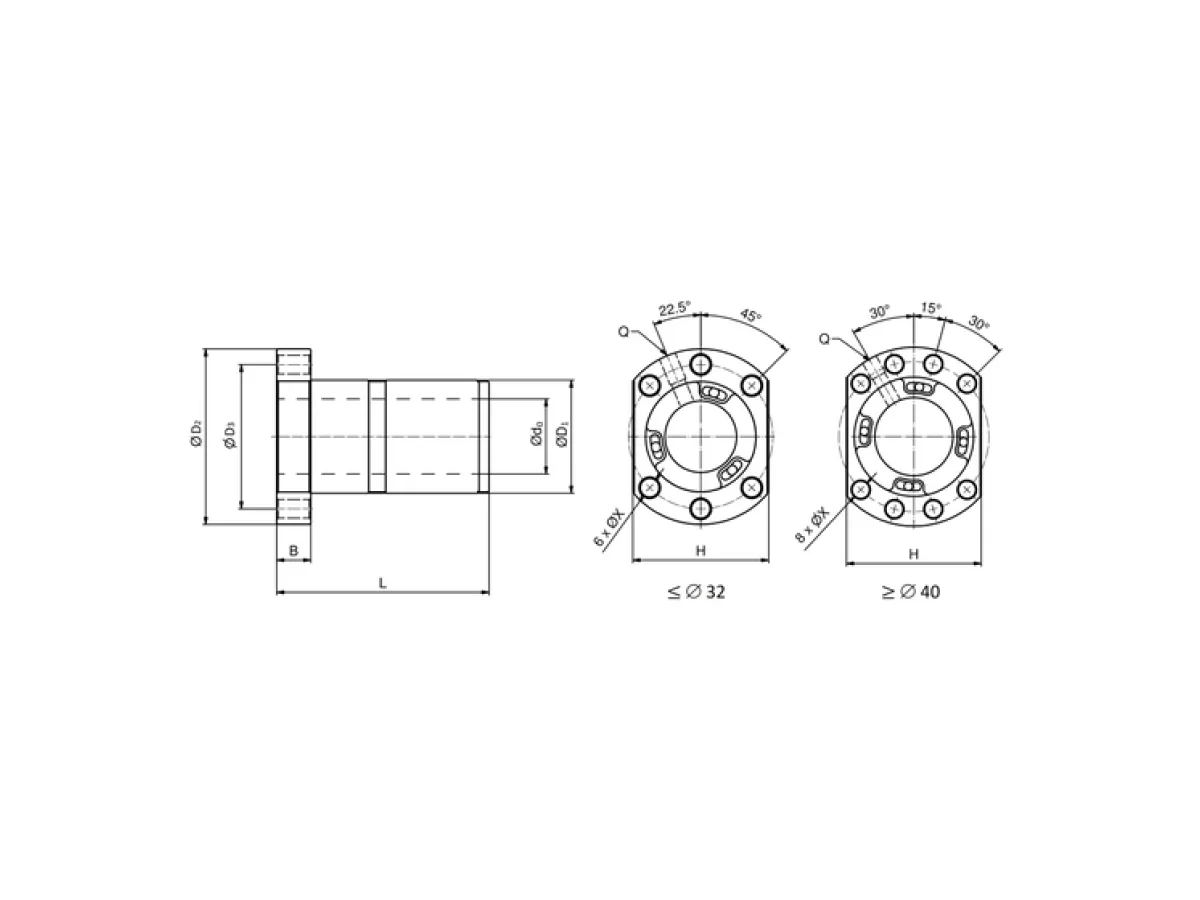

PRODUCT DEFINITION
- Designation
- BNU03210RDCLL3B-B0
- Brand
- SNR
- Series
- BNU
- d0
- 32 mm
- Pitch P
- 10 mm
- Pitch direction
- Right
- Nut type
- DC - Compact double nut with flange (DIN 69051)
- Flange type
- Type B - double cut flange
- Sealing
- LL - Labyrinth seal on both sides
- Material
- Carbon steel
- Dw
- 3,969 mm
- D1 g6
- 50 mm
- D2
- 80 mm
- B - Flange width
- 12 mm
- L - Length
- 115 mm
- D3
- 65 mm
- H
- 62 mm
- X
- 9 mm
- Q
- 0 mm
- Number of circuits
- 3,8 x 1
- Mass
- 1,1 kg
PRODUCT PERFORMANCE
- DN value for P5
- 100000 mmpm
- Ca for T7
- 19539000 mN
- C0a for T7
- 57636000 mN
- Ca for P5
- 21710000 mN
- C0a for P5
- 64040000 mN
- Kn
- 735 N/µm
