PRODUCT INFORMATION
Description and selection guidance

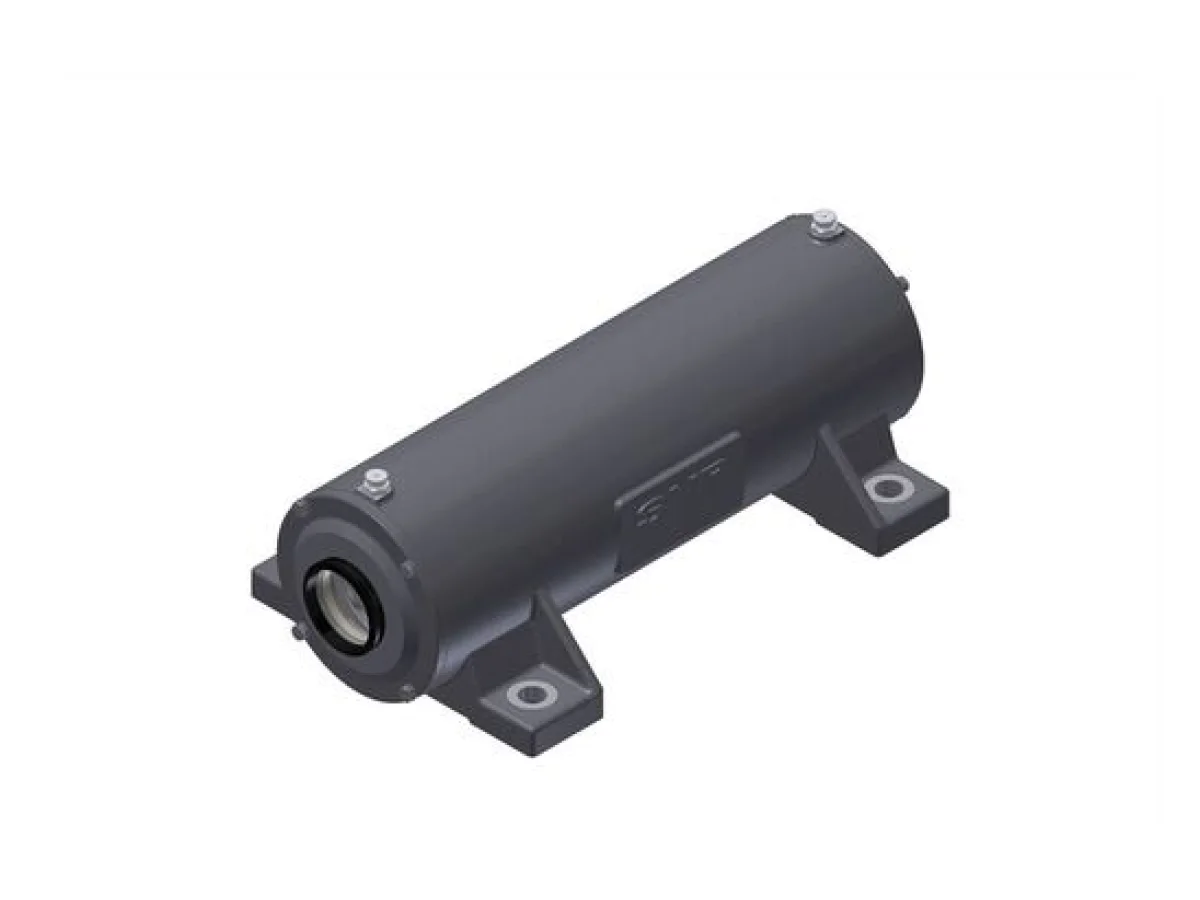

Multiple bearing housings, that allow the usage of different bearing combinations.
DLG 314 AE specifications

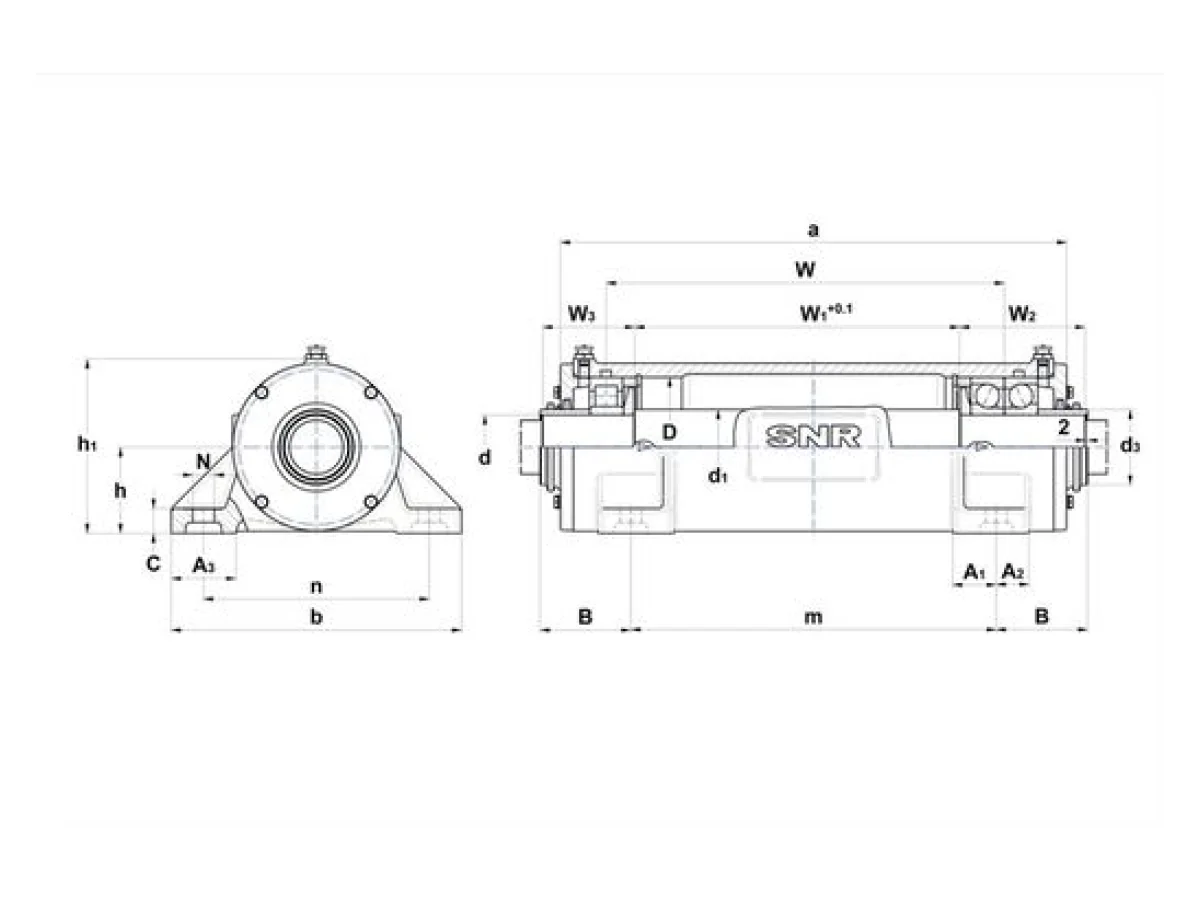

PRODUCT DEFINITION
- Brand
- SNR
- d - Shaft diameter
- 70 mm
- d1 - Shaft diameter between bearings
- 80 mm
- d3 - Outer diameter sleeve
- 80 mm
- a - Housing length
- 517 mm
- b - Housing foot width
- 290 mm
- c - Housing foot height
- 25 mm
- h - Bearing center height
- 95 mm
- h1 - Housing height
- 190 mm
- m - Mounting hole/punches distance (length)
- 380 mm
- n - Mounting hole distance (width)
- 230 mm
- N - Mounting hole diameter
- 20 mm
- B - Distance mounting hole to shaft step
- 83,5 mm
- W - Bearing distance
- 408,5 mm
- W1 - Central shaft length
- 334 mm
- W2 - Right shaft end length
- 124 mm
- W3 - Left shaft end length
- 89 mm
- A1
- 45 mm
- A2
- 35 mm
- A3 - ZLG foot width
- 60 mm
- D - Bearing seat diameter
- 150 mm
- Mass
- 37 kg
- Material of Housing
- grey cast
BOLTS
- G - Fixing bolts
- M16
- Recommended torque fixing bolts
- 150 N-m
- Cover bolts
- M8x25
- Recommended torque cover bolts
- 17 N-m
