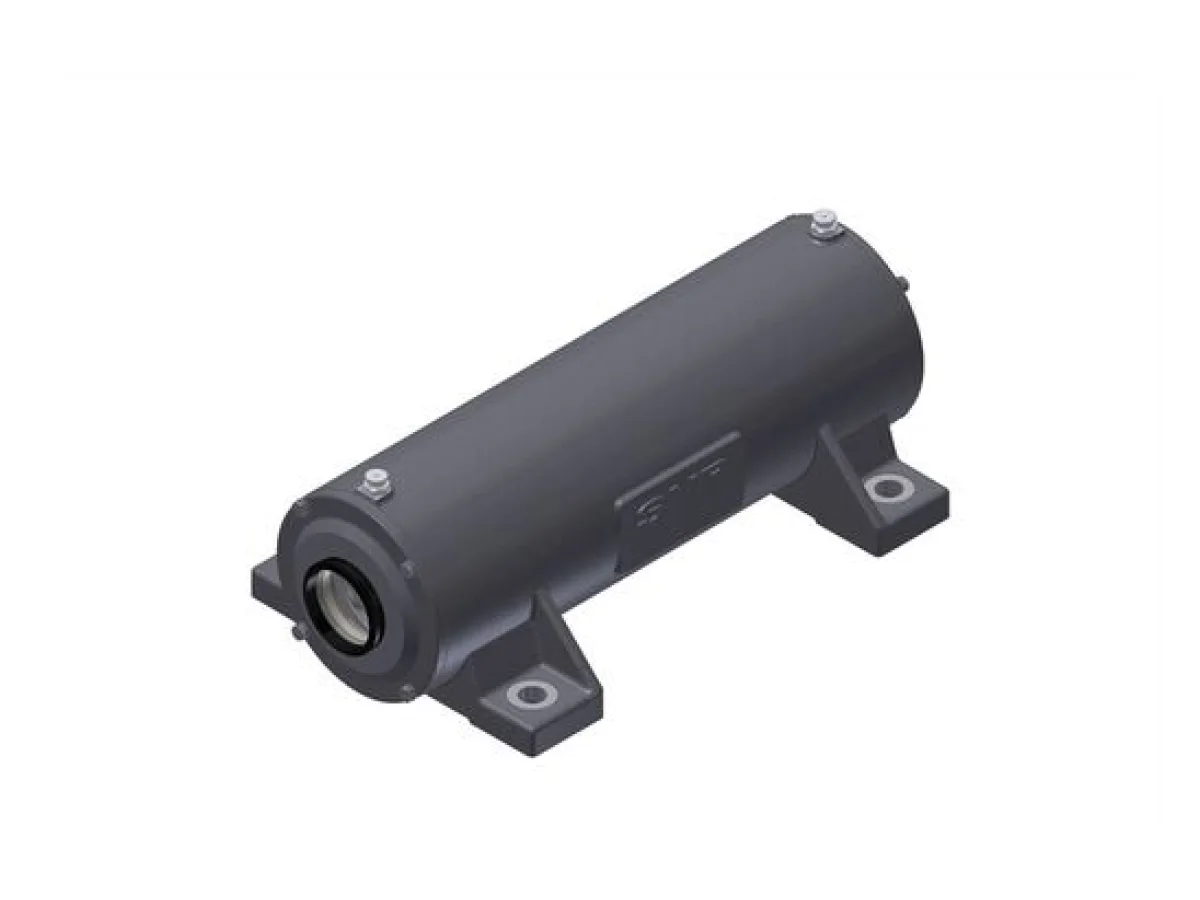

Multiple bearing housings, that allow the usage of different bearing combinations.
DLG 315 AD specifications

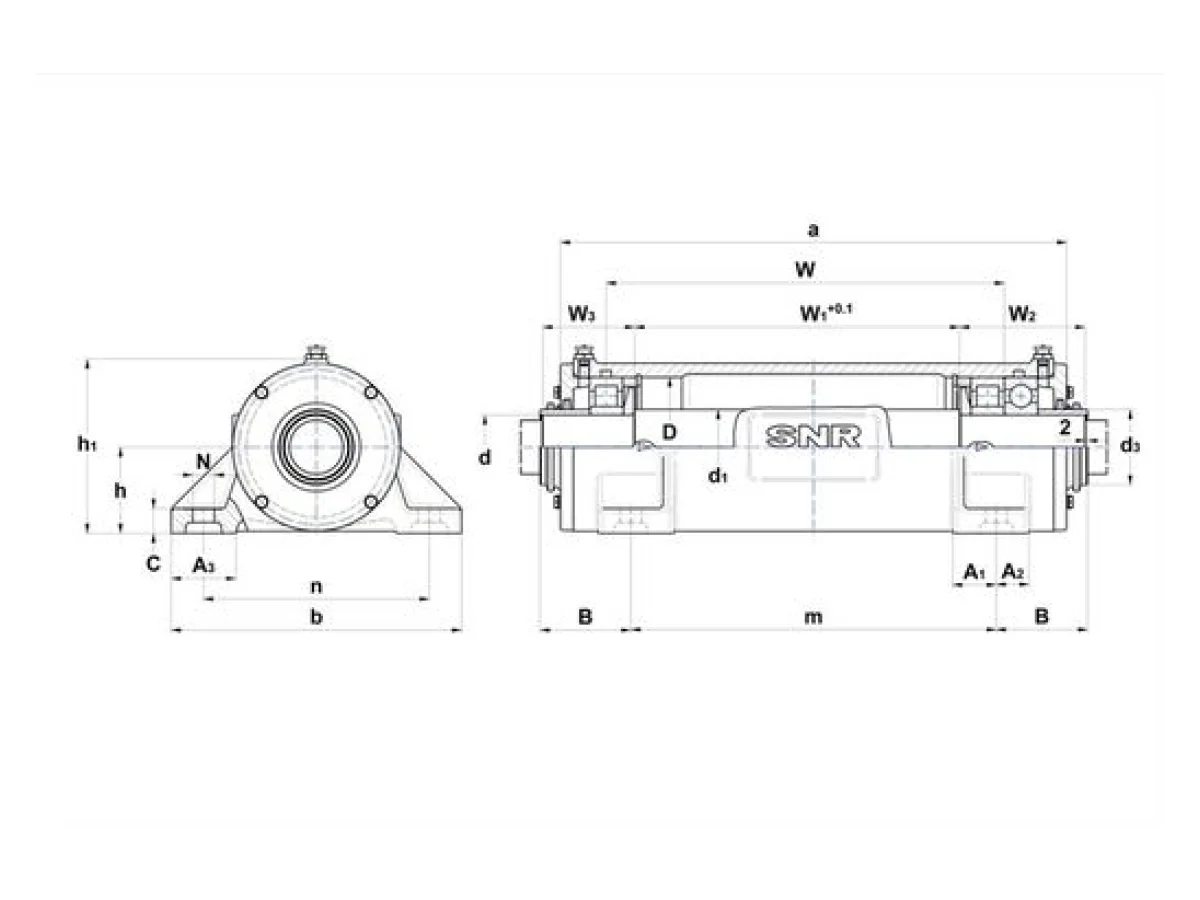

PRODUCT DEFINITION
- Brand
- SNR
- d - Shaft diameter
- 75 mm
- d1 - Shaft diameter between bearings
- 90 mm
- d3 - Outer diameter sleeve
- 90 mm
- a - Housing length
- 553 mm
- b - Housing foot width
- 330 mm
- c - Housing foot height
- 28 mm
- h - Bearing center height
- 100 mm
- h1 - Housing height
- 200 mm
- m - Mounting hole/punches distance (length)
- 400 mm
- n - Mounting hole distance (width)
- 260 mm
- N - Mounting hole diameter
- 20 mm
- B - Distance mounting hole to shaft step
- 91,5 mm
- W - Bearing distance
- 438,5 mm
- W1 - Central shaft length
- 359 mm
- W2 - Right shaft end length
- 130,5 mm
- W3 - Left shaft end length
- 93,5 mm
- A1
- 45 mm
- A2
- 35 mm
- A3 - ZLG foot width
- 70 mm
- D - Bearing seat diameter
- 160 mm
- Mass
- 47 kg
- Material of Housing
- grey cast
BOLTS
- G - Fixing bolts
- M16
- Recommended torque fixing bolts
- 150 N-m
- Cover bolts
- M8x25
- Recommended torque cover bolts
- 17 N-m
