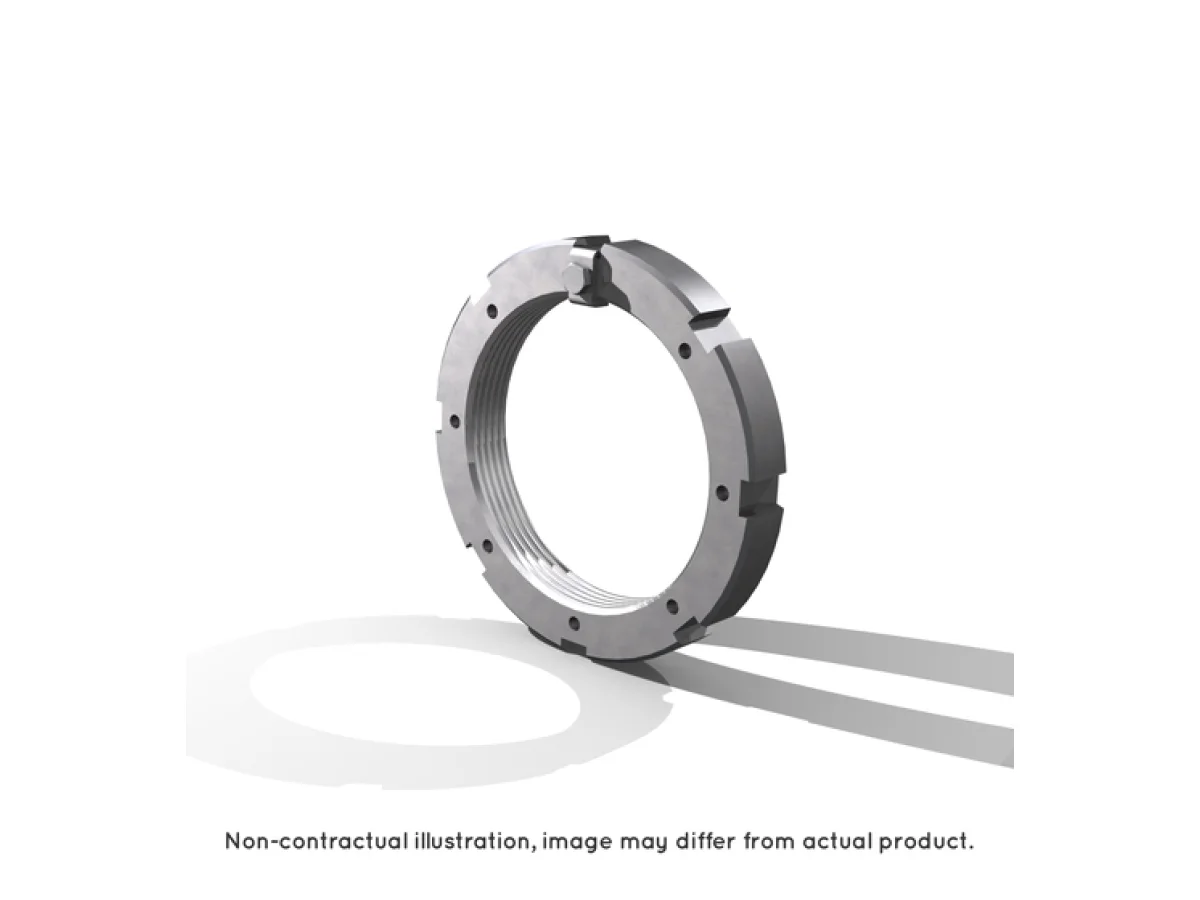

NTN-SNR Nut HM31/900 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

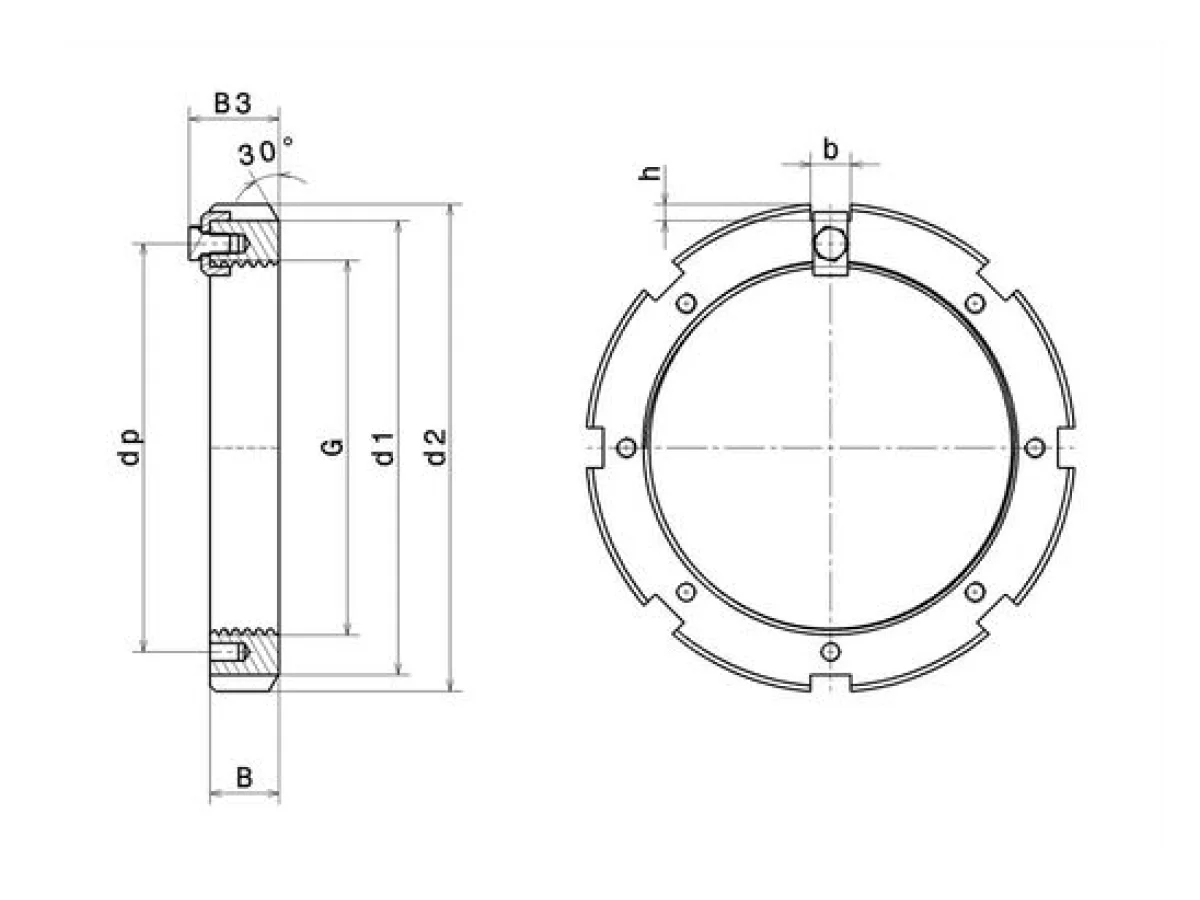

HM31/900 specifications
PRODUCT DEFINITION
- Brand
- SNR
- G - Thread designation
- Tr900X7
- d2 - Outer diameter of locknut
- 1120 mm
- B - Nut width
- 125 mm
- d1 - Outer diameter of the locking surface of the nut
- 1030 mm
- Chamfer angle of the nut
- 30 °
- b - Notch width
- 70 mm
- h - Notch depth
- 38 mm
- Mass
- 293 kg
TECHNICAL CHARACTERISTICS
- Designation of the associated blocking device
- MS31/900
