Description and selection guidance

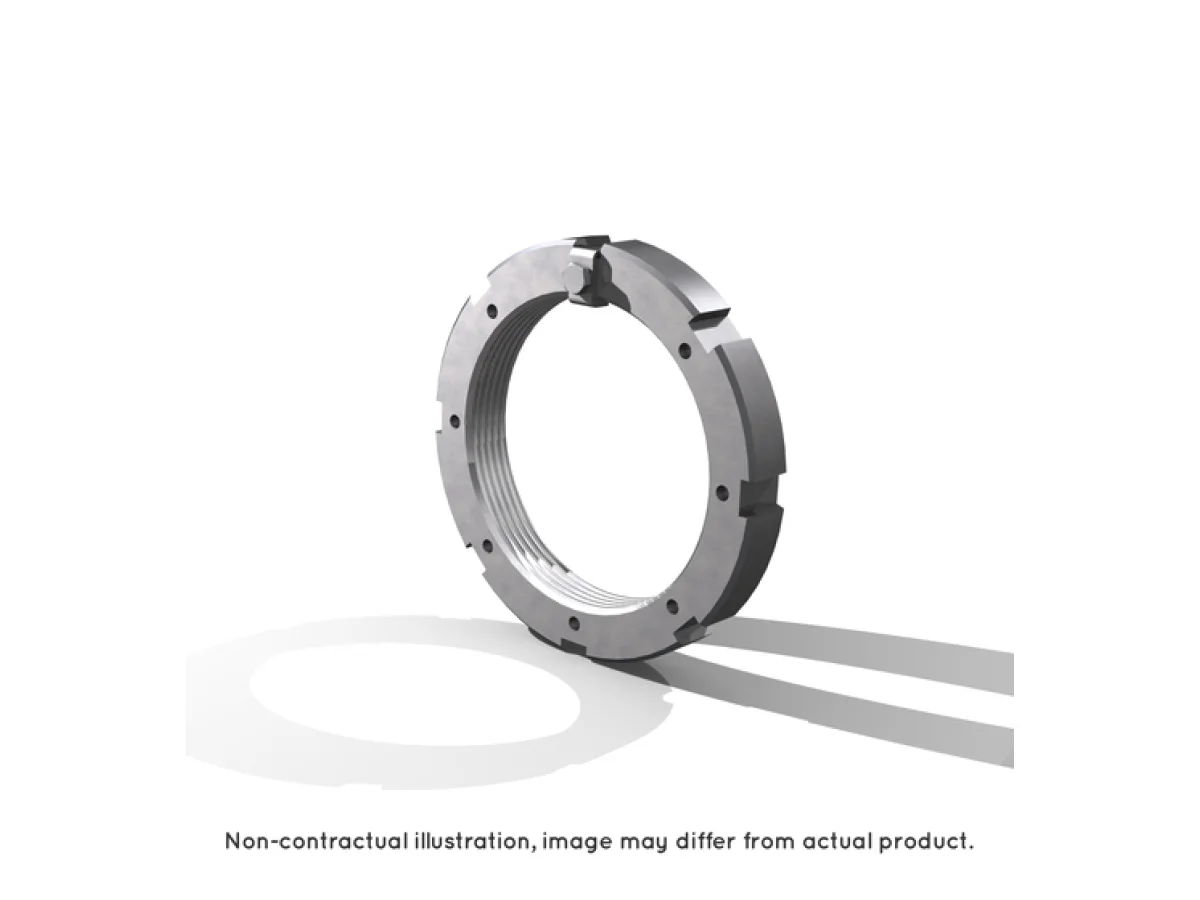

NTN-SNR Nut HM3188 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

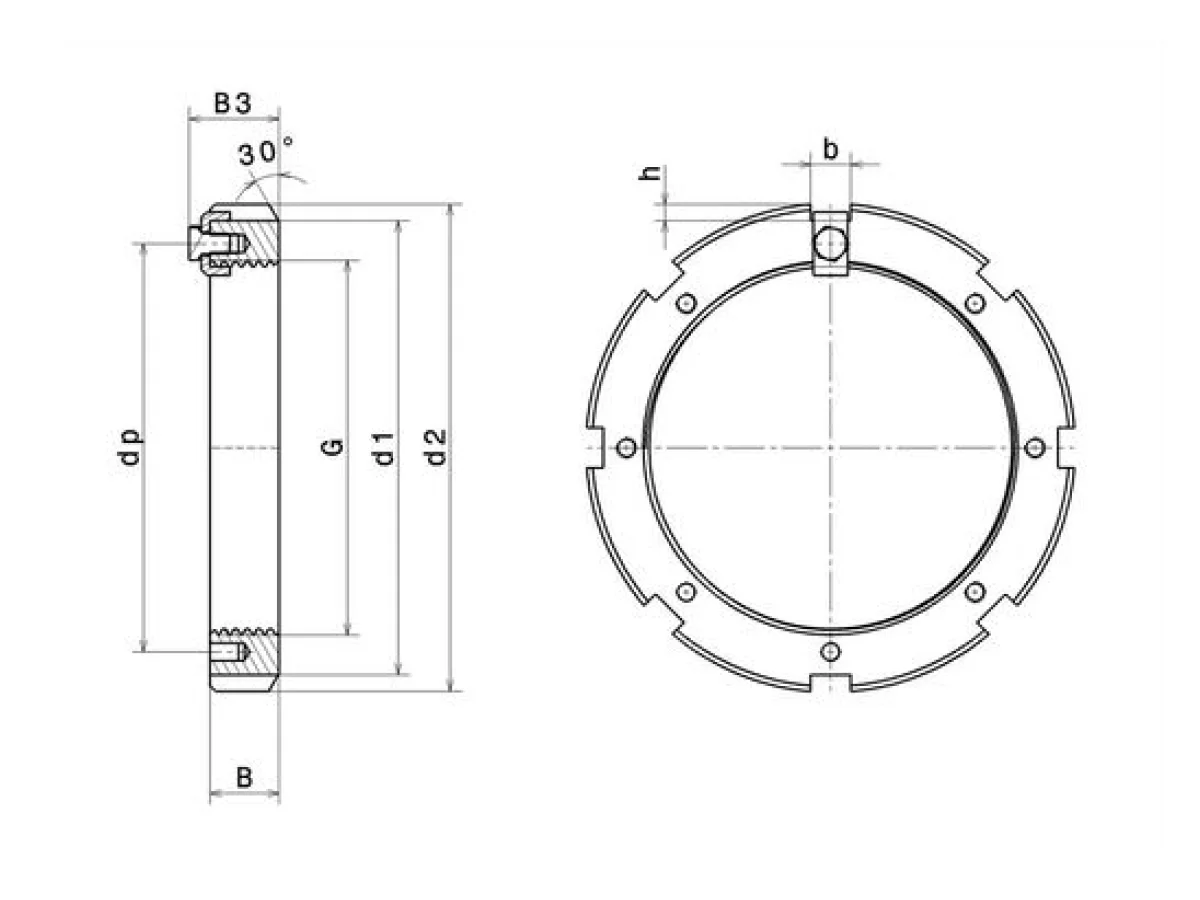

HM3188 specifications
PRODUCT DEFINITION
- Brand
- SNR
- G - Thread designation
- Tr440X5
- d2 - Outer diameter of locknut
- 560 mm
- B - Nut width
- 70 mm
- d1 - Outer diameter of the locking surface of the nut
- 510 mm
- Chamfer angle of the nut
- 30 °
- b - Notch width
- 36 mm
- h - Notch depth
- 20 mm
- dP - Diameter of locating holes for clamping bracket
- 478 mm
- Mass
- 45,1 kg
TECHNICAL CHARACTERISTICS
- Designation of the associated blocking device
- MS3188
