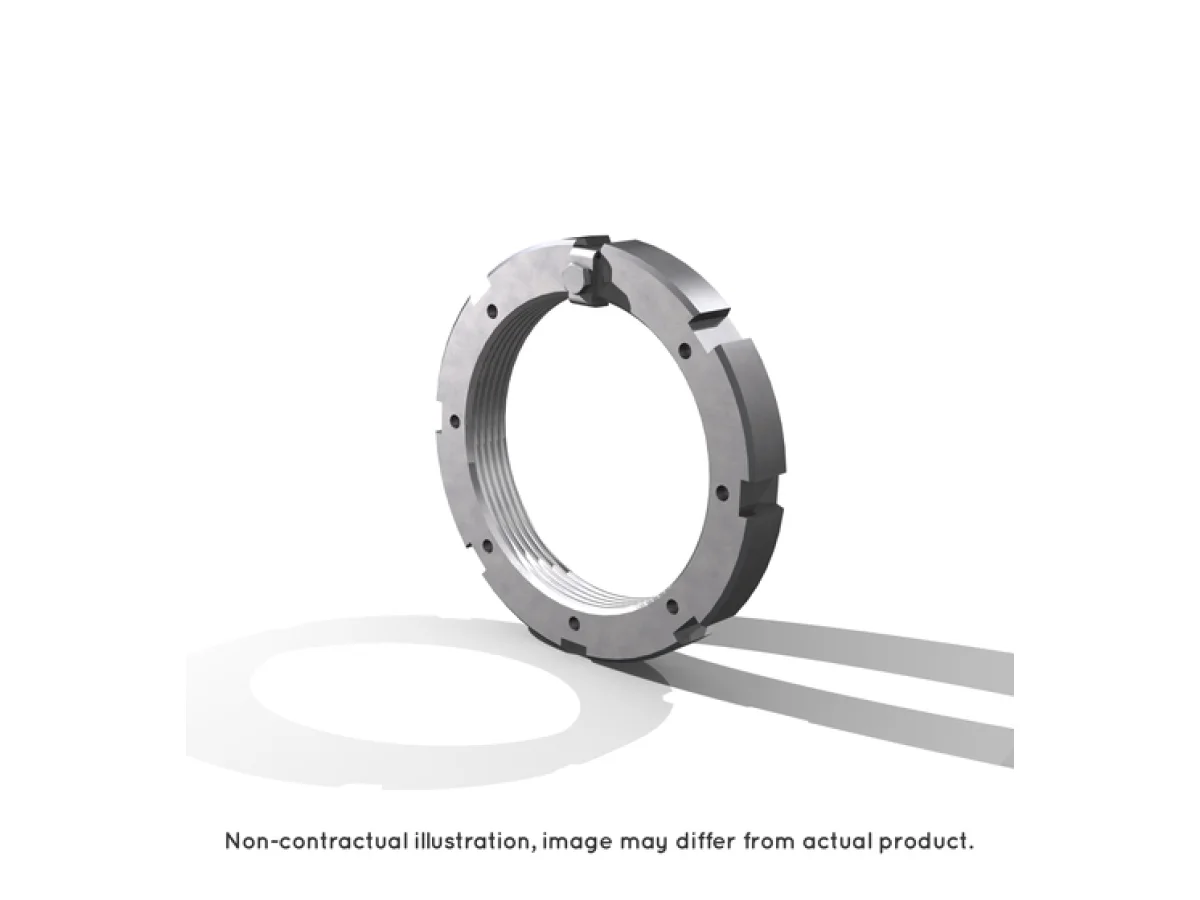

NTN-SNR Nut HM3196 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

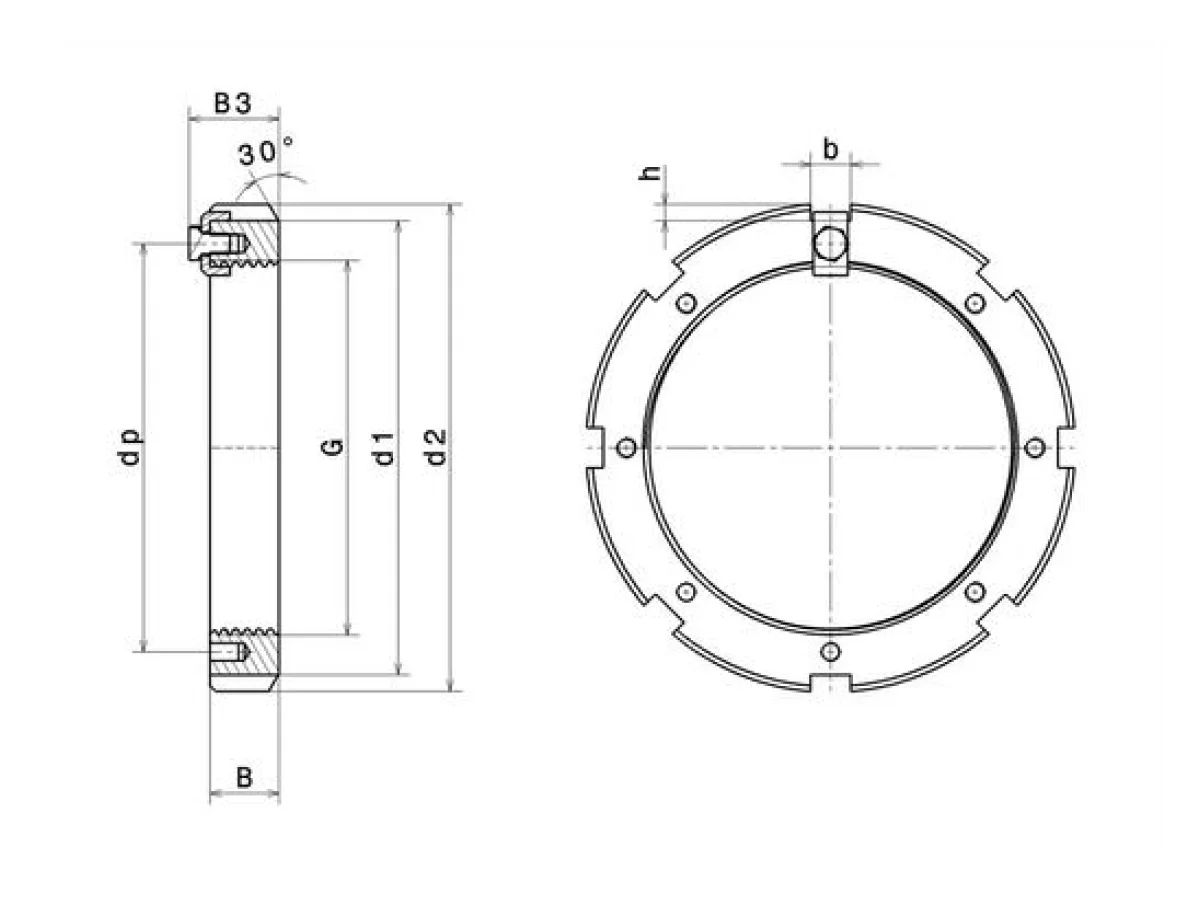

HM3196 specifications
PRODUCT DEFINITION
- Brand
- SNR
- G - Thread designation
- Tr480X5
- d2 - Outer diameter of locknut
- 620 mm
- B - Nut width
- 75 mm
- d1 - Outer diameter of the locking surface of the nut
- 560 mm
- Chamfer angle of the nut
- 30 °
- b - Notch width
- 36 mm
- h - Notch depth
- 20 mm
- dP - Diameter of locating holes for clamping bracket
- 528 mm
- Mass
- 62 kg
TECHNICAL CHARACTERISTICS
- Designation of the associated blocking device
- MS3196
NTN-SNR ITEM SUPPORT
Send the current item and operating conditions.
Cat Son can compare dimensions, design and mounting conditions before quotation.
