Images and specifications are matched to the NTN-SNR item number; Cat Son verifies the configuration before quotation.
PRODUCT INFORMATION
Description and selection guidance

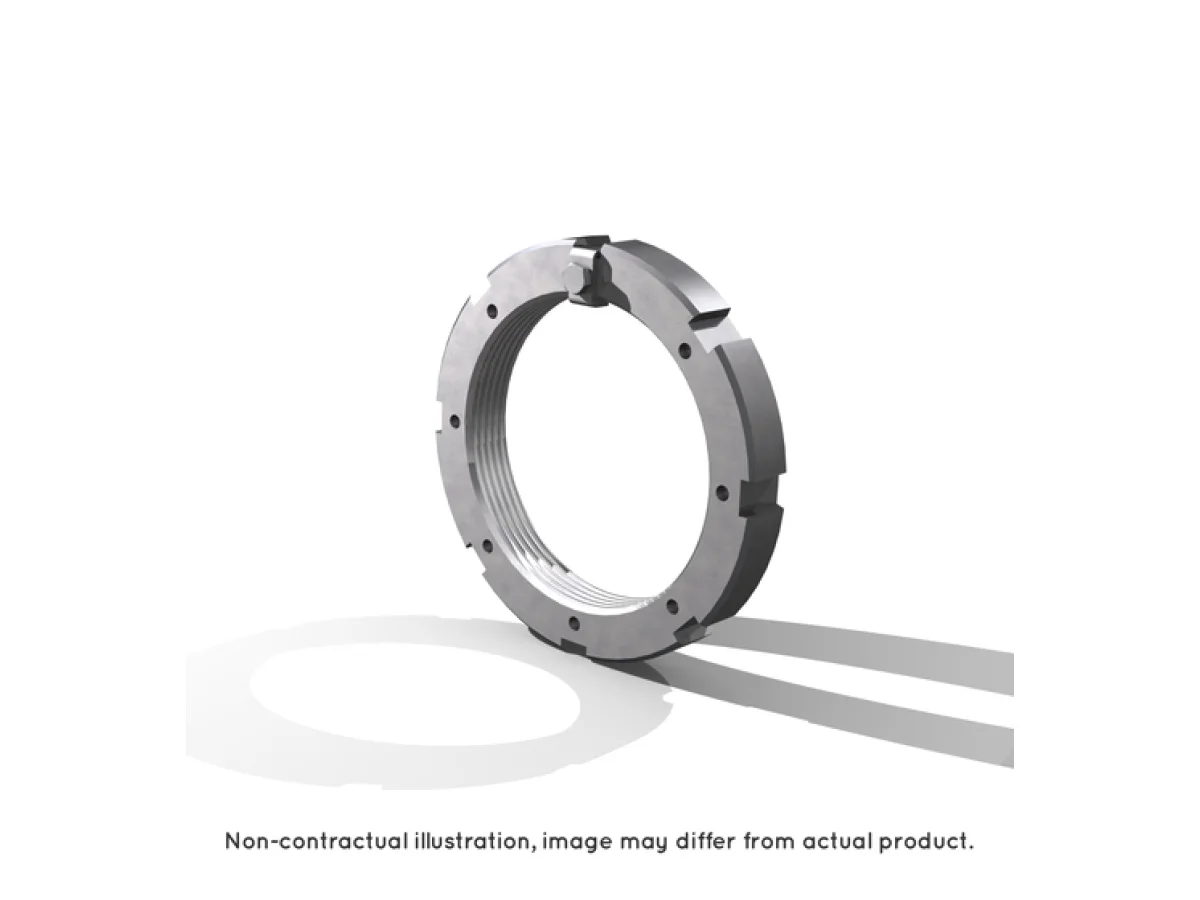

NTN-SNR Nut HML41T is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

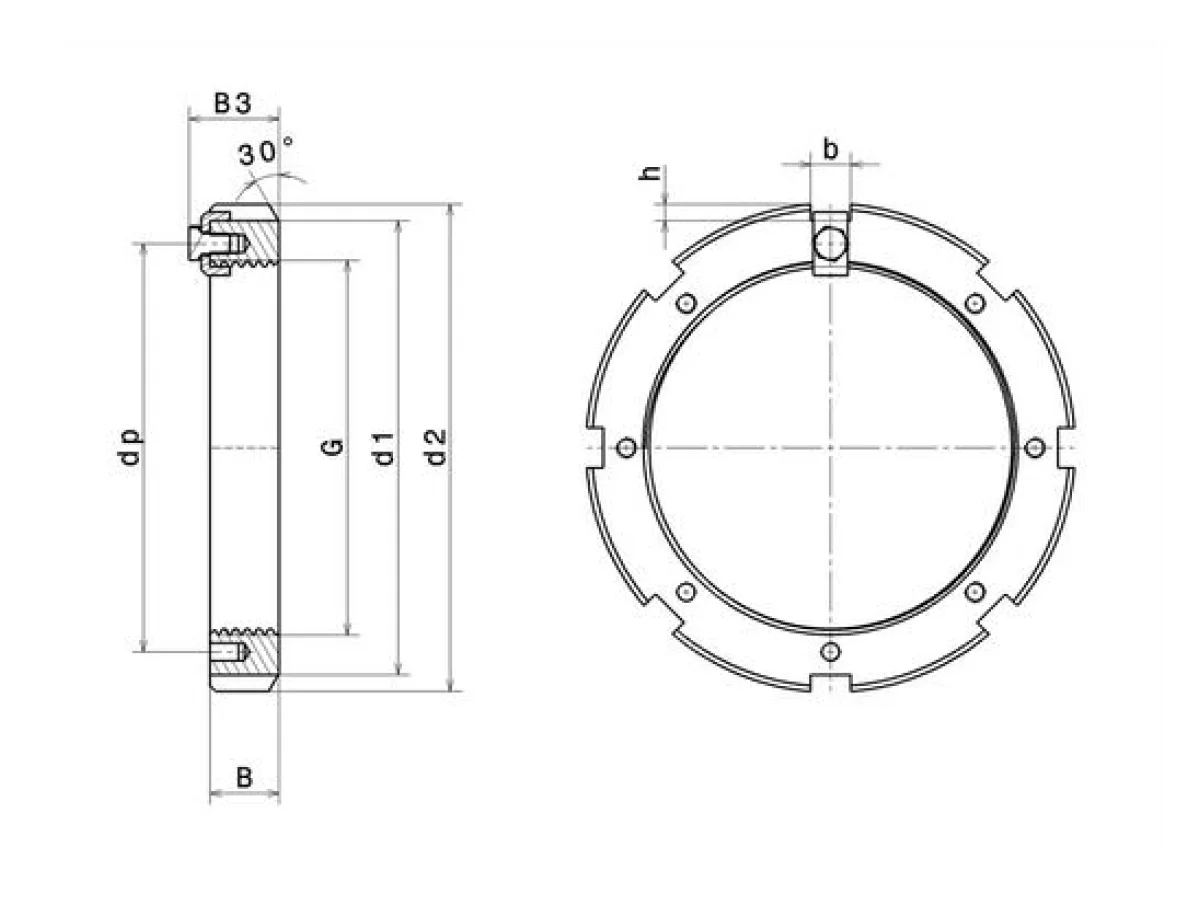

HML41T specifications
PRODUCT DEFINITION
- Brand
- SNR
- G - Thread designation
- Tr205x4
- d2 - Outer diameter of locknut
- 250 mm
- B - Nut width
- 30 mm
- d1 - Outer diameter of the locking surface of the nut
- 232 mm
- Chamfer angle of the nut
- 30 °
- b - Notch width
- 18 mm
- h - Notch depth
- 8 mm
- Mass
- 3,43 kg
TECHNICAL CHARACTERISTICS
- Designation of the associated blocking device
- 0
