Images and specifications are matched to the NTN-SNR item number; Cat Son verifies the configuration before quotation.
PRODUCT INFORMATION
Description and selection guidance

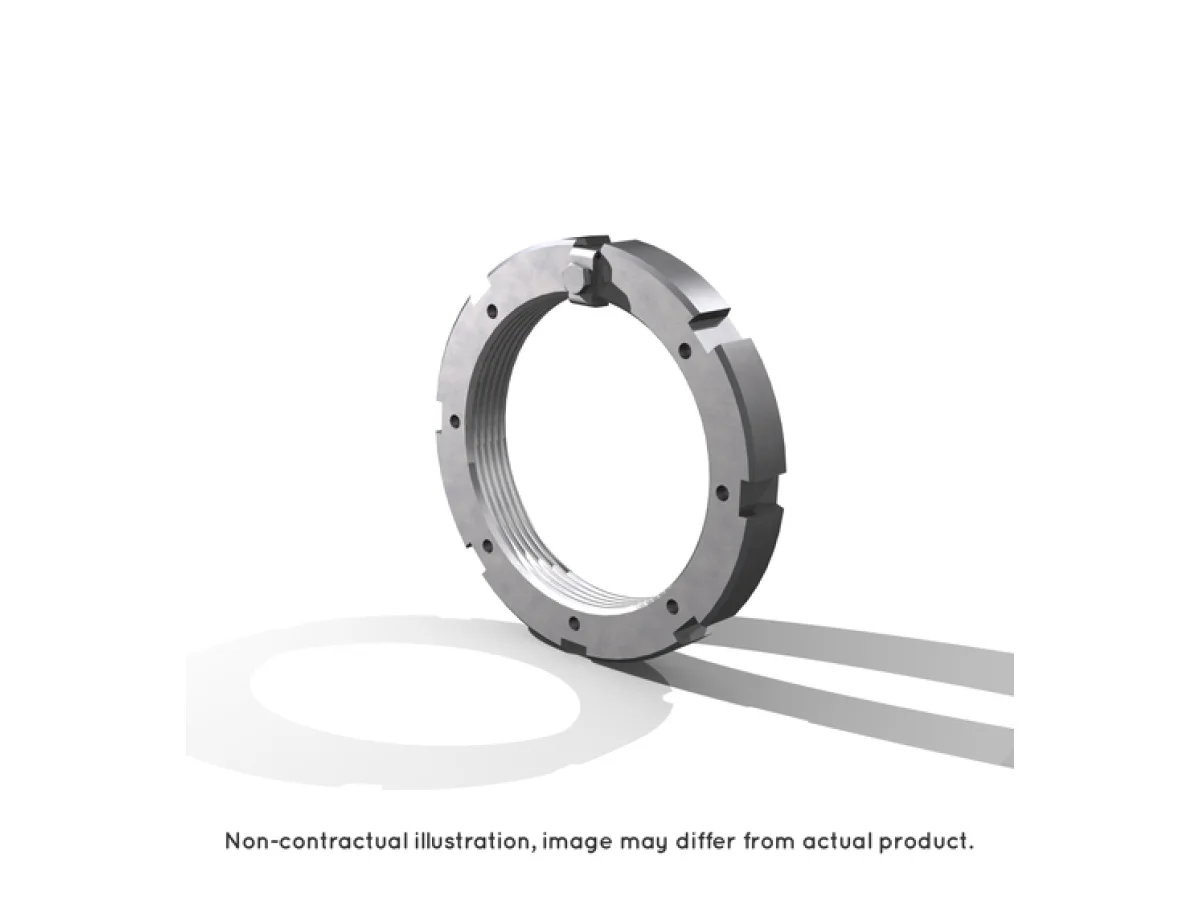

NTN-SNR Nut HML43T is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.
HML43T specifications
PRODUCT DEFINITION
- Brand
- SNR

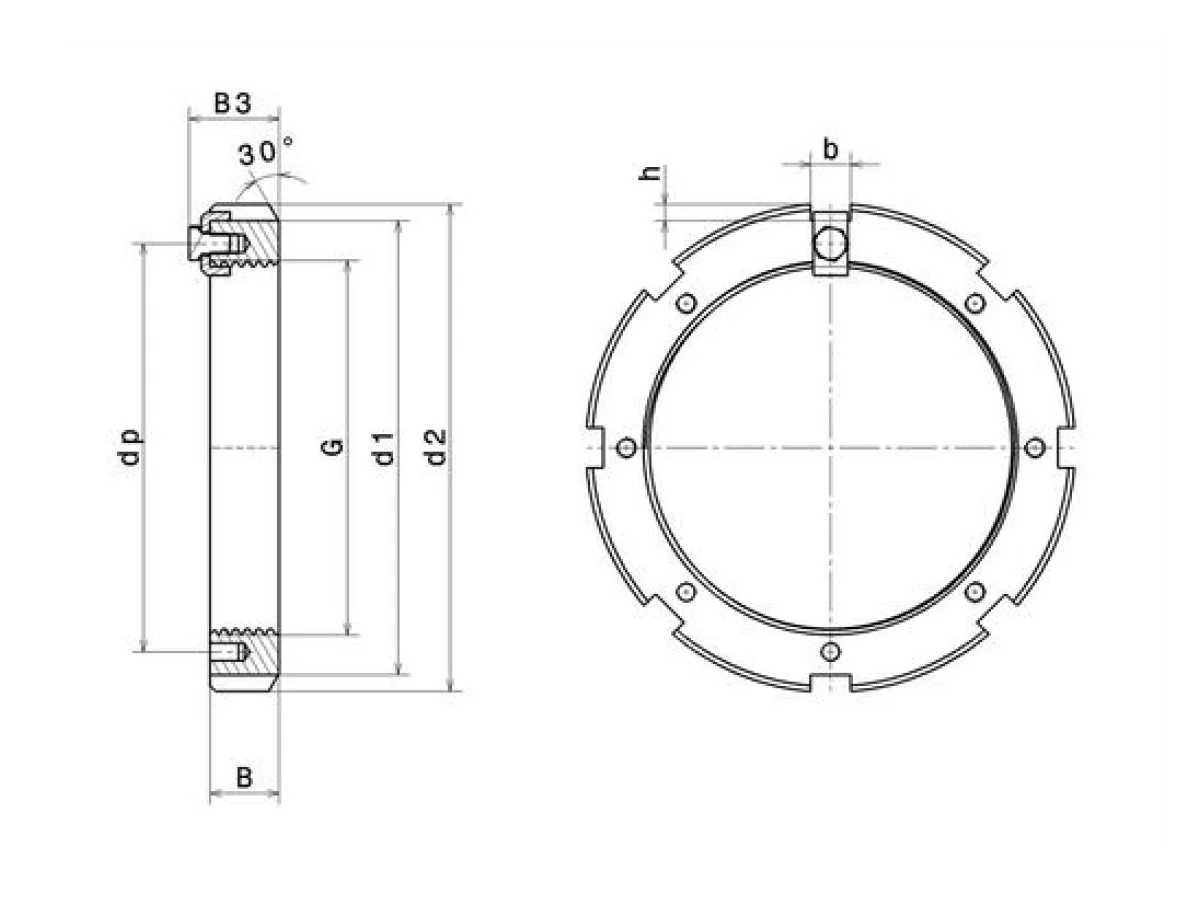

- G - Thread designation
- Tr215x4
- d2 - Outer diameter of locknut
- 260 mm
- B - Nut width
- 30 mm
- d1 - Outer diameter of the locking surface of the nut
- 242 mm
- Chamfer angle of the nut
- 30 °
- b - Notch width
- 20 mm
- h - Notch depth
- 9 mm
- Mass
- 3,72 kg
TECHNICAL CHARACTERISTICS
- Designation of the associated blocking device
- 0
NTN-SNR ITEM SUPPORT
Send the current item and operating conditions.
Cat Son can compare dimensions, design and mounting conditions before quotation.
