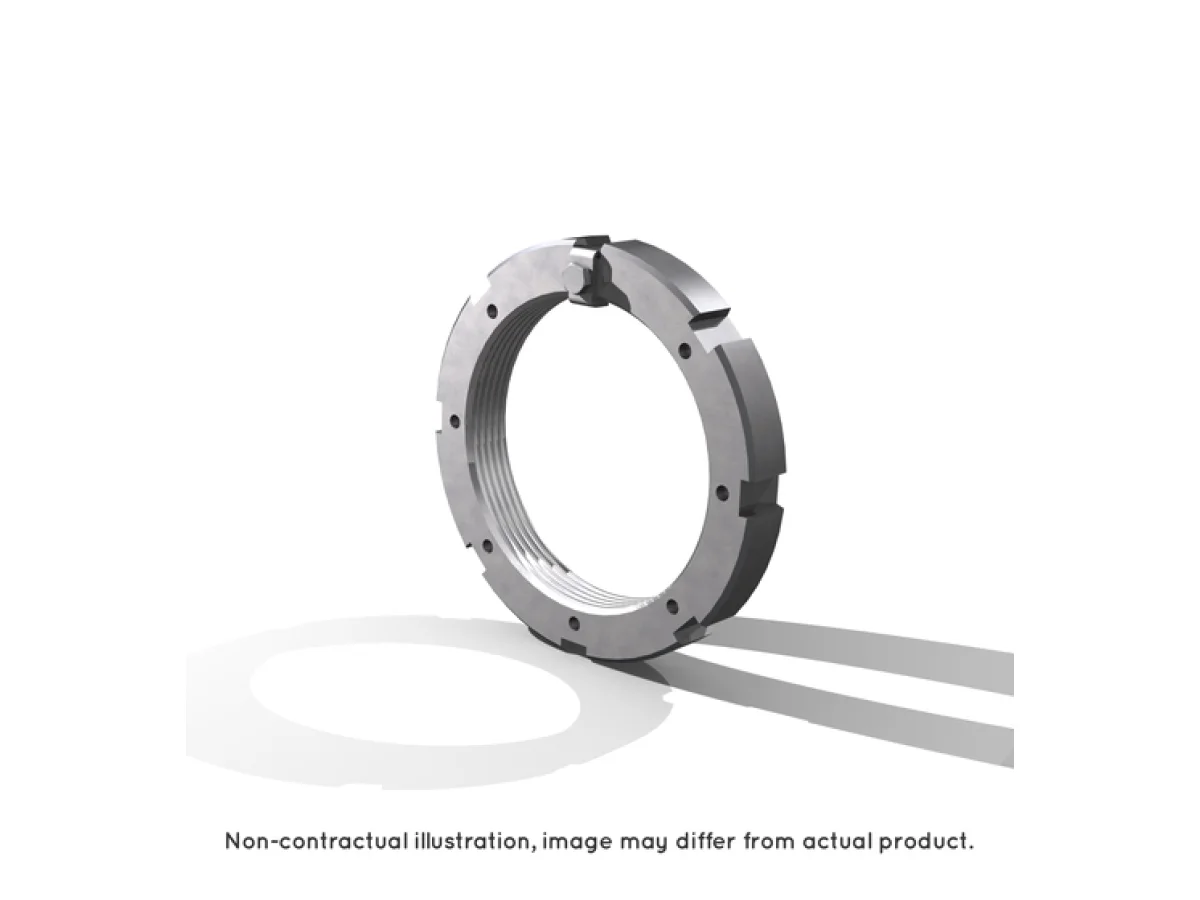

NTN-SNR Nut HMLL92T is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

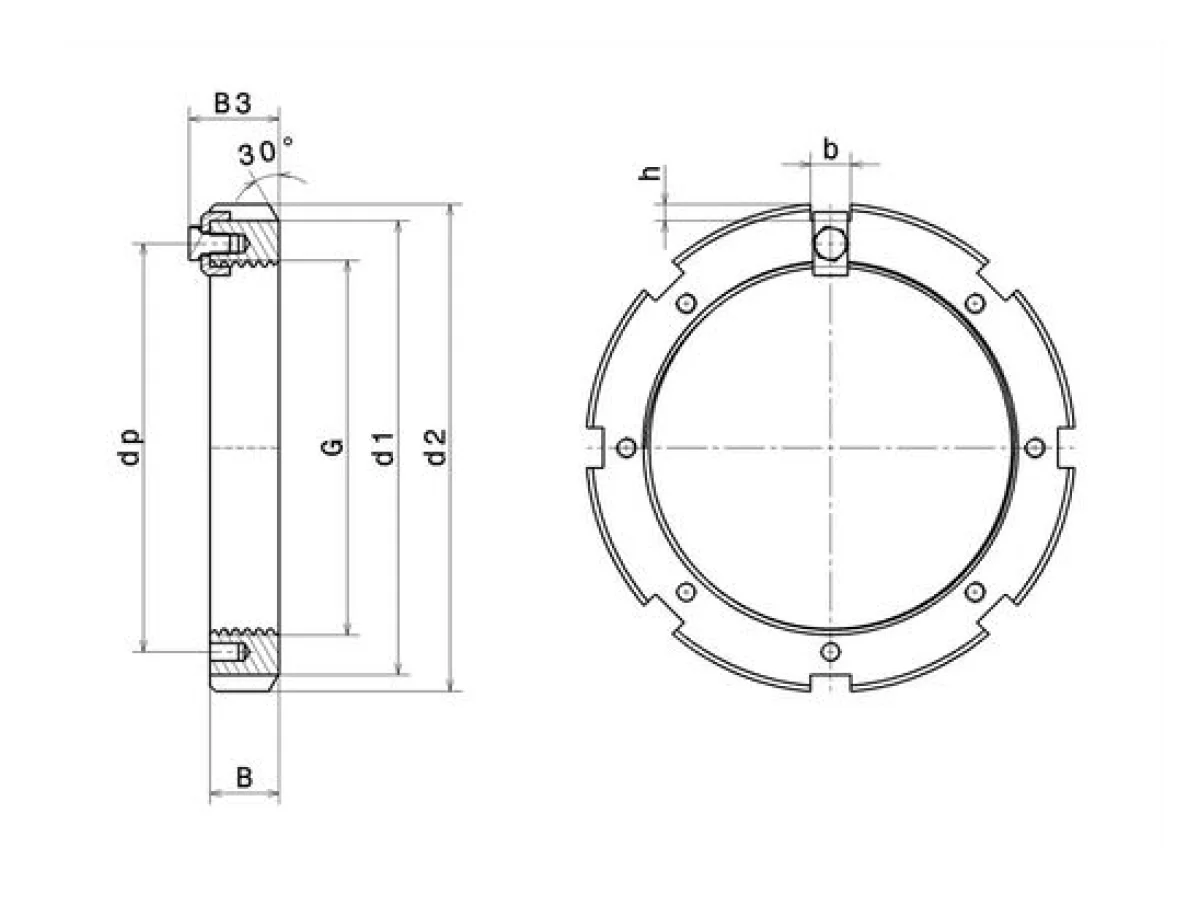

HMLL92T specifications
PRODUCT DEFINITION
- Brand
- SNR
- G - Thread designation
- Tr460x5
- d2 - Outer diameter of locknut
- 530 mm
- B - Nut width
- 33 mm
- d1 - Outer diameter of the locking surface of the nut
- 504 mm
- Chamfer angle of the nut
- 30 °
- b - Notch width
- 28 mm
- h - Notch depth
- 13 mm
- Mass
- 13,5 kg
TECHNICAL CHARACTERISTICS
- Designation of the associated blocking device
- 0
