Images and specifications are matched to the NTN-SNR item number; Cat Son verifies the configuration before quotation.
PRODUCT INFORMATION
Description and selection guidance

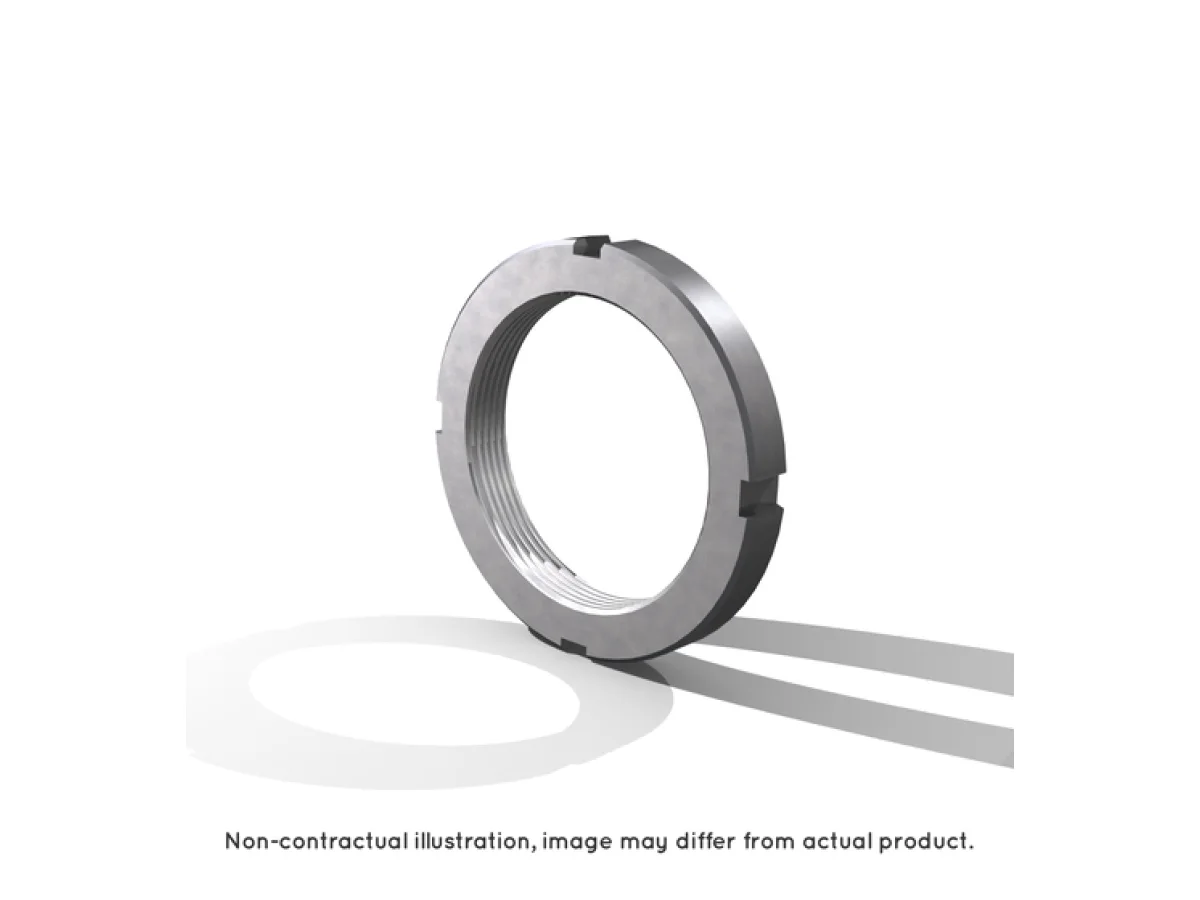

NTN-SNR Nut KM10 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

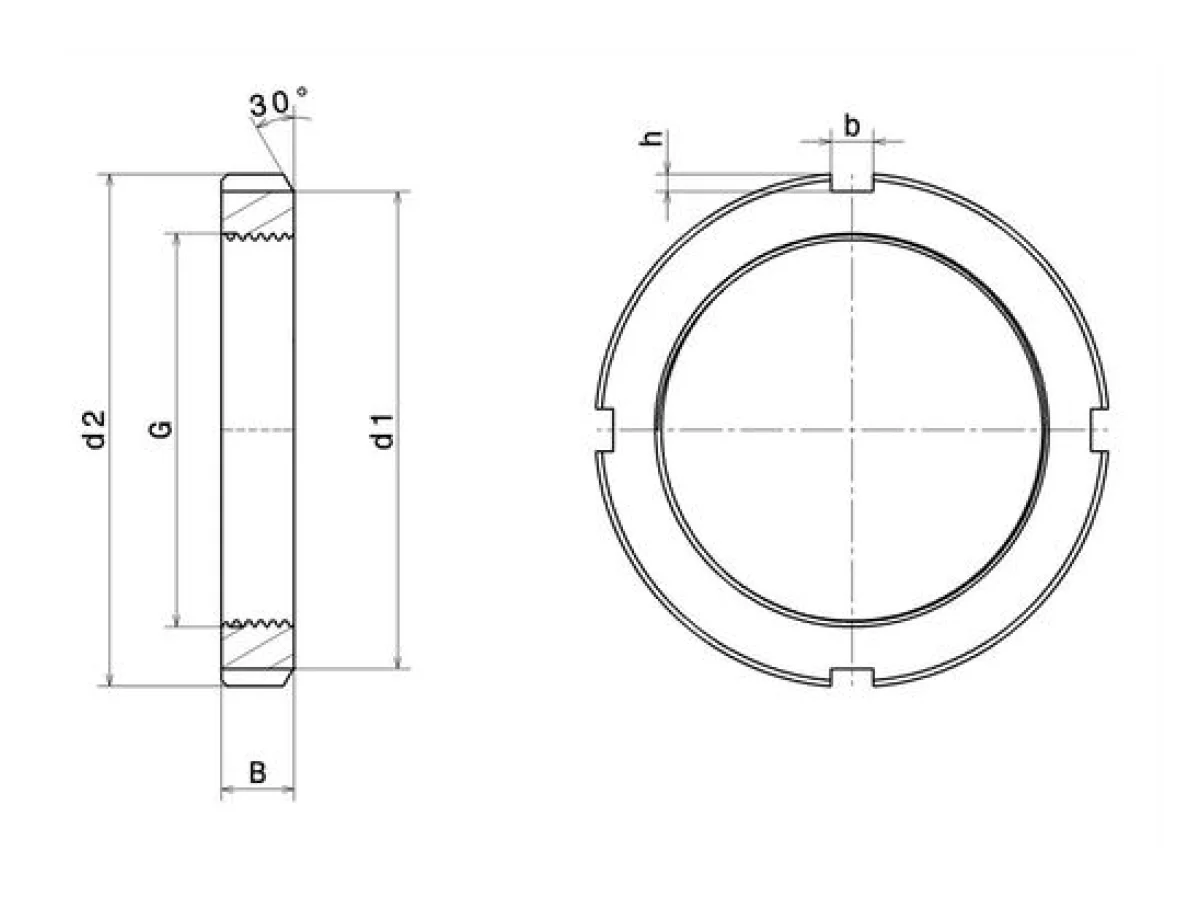

KM10 specifications
PRODUCT DEFINITION
- Brand
- SNR
- G - Thread designation
- M50X1.5
- d2 - Outer diameter of locknut
- 70 mm
- B - Nut width
- 11 mm
- d1 - Outer diameter of the locking surface of the nut
- 61 mm
- Chamfer angle of the nut
- 30 °
- b - Notch width
- 6 mm
- h - Notch depth
- 2,5 mm
- Mass
- 0,15 kg
TECHNICAL CHARACTERISTICS
- Designation of the associated blocking device
- MB10
NTN-SNR ITEM SUPPORT
Send the current item and operating conditions.
Cat Son can compare dimensions, design and mounting conditions before quotation.
