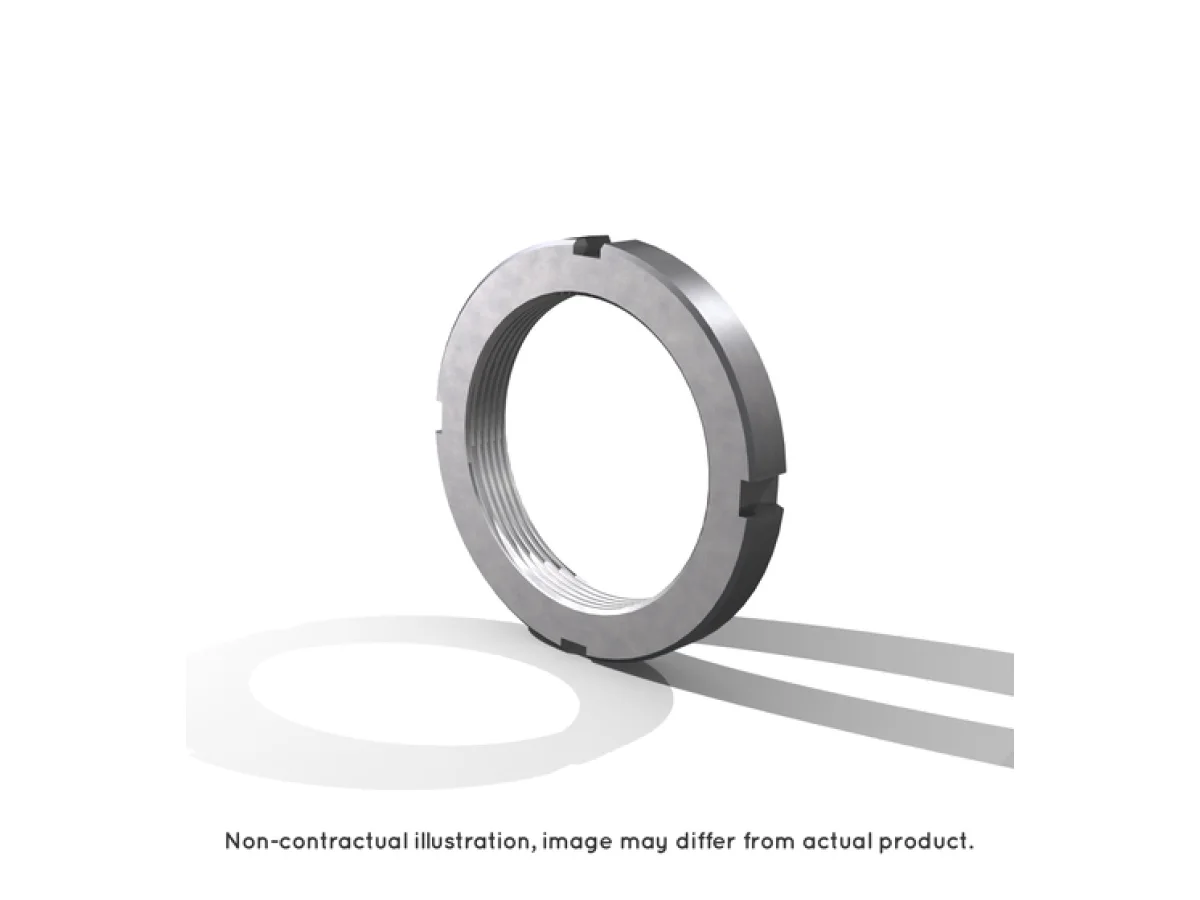

NTN-SNR Nut KM13 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

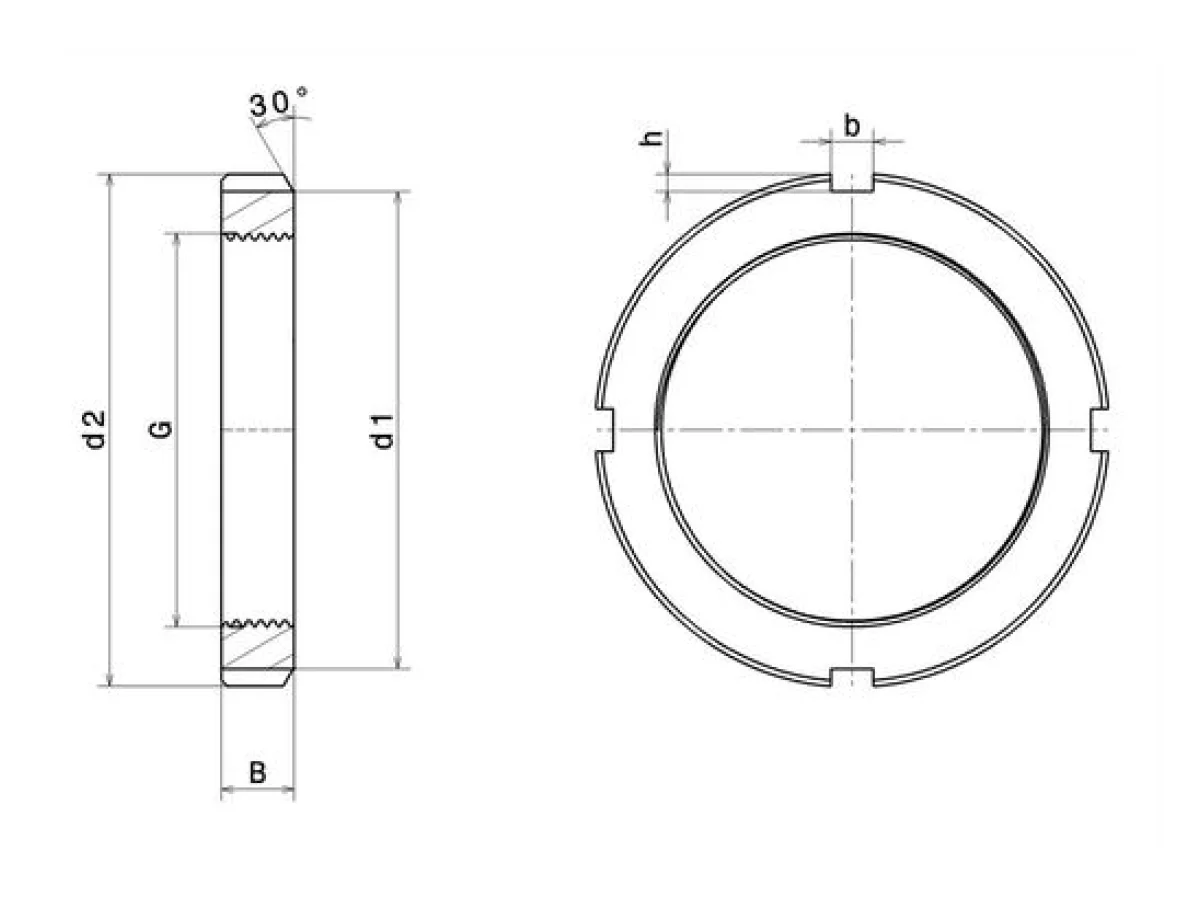

KM13 specifications
PRODUCT DEFINITION
- Brand
- SNR
- G - Thread designation
- M65X2
- d2 - Outer diameter of locknut
- 85 mm
- B - Nut width
- 12 mm
- d1 - Outer diameter of the locking surface of the nut
- 79 mm
- Chamfer angle of the nut
- 30 °
- b - Notch width
- 7 mm
- h - Notch depth
- 3 mm
- Mass
- 0,2 kg
TECHNICAL CHARACTERISTICS
- Designation of the associated blocking device
- MB13
