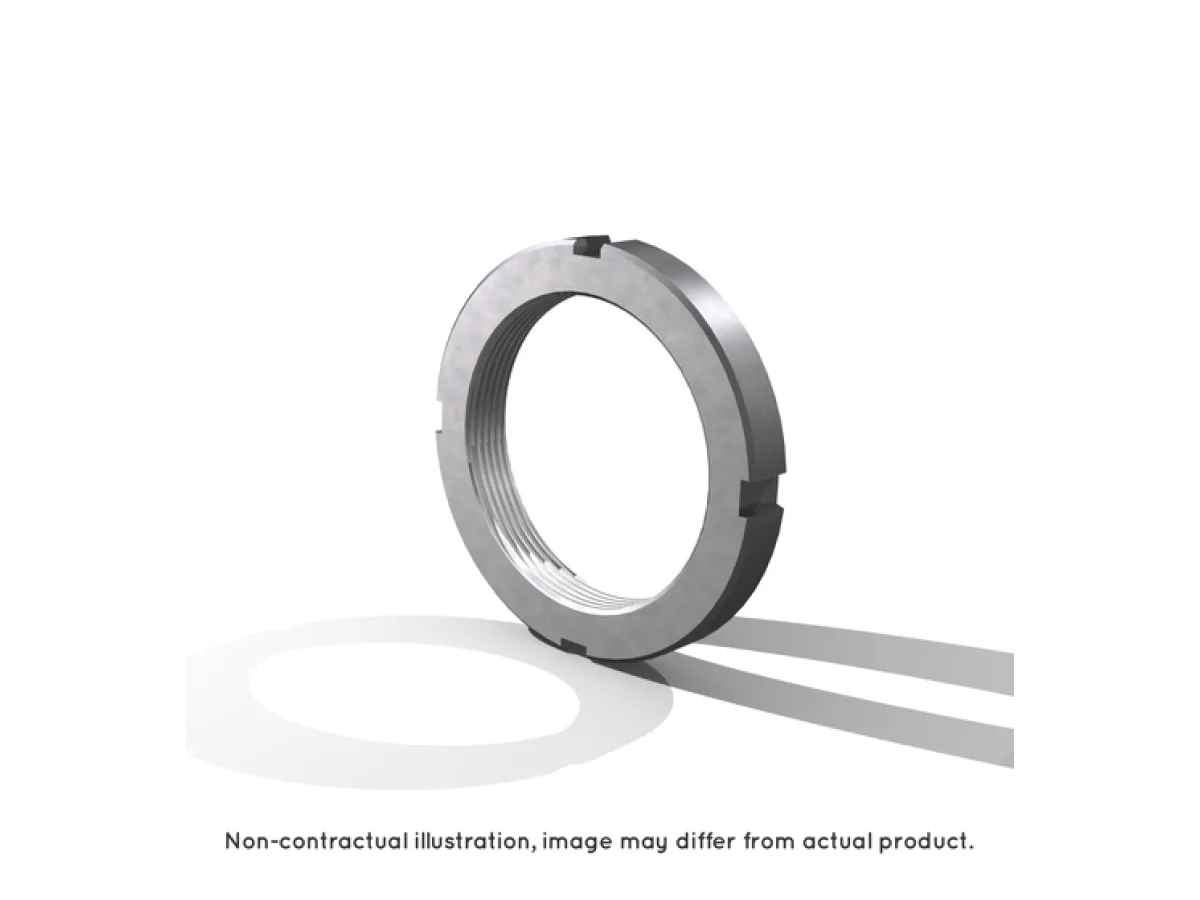

NTN-SNR Nut KME7 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

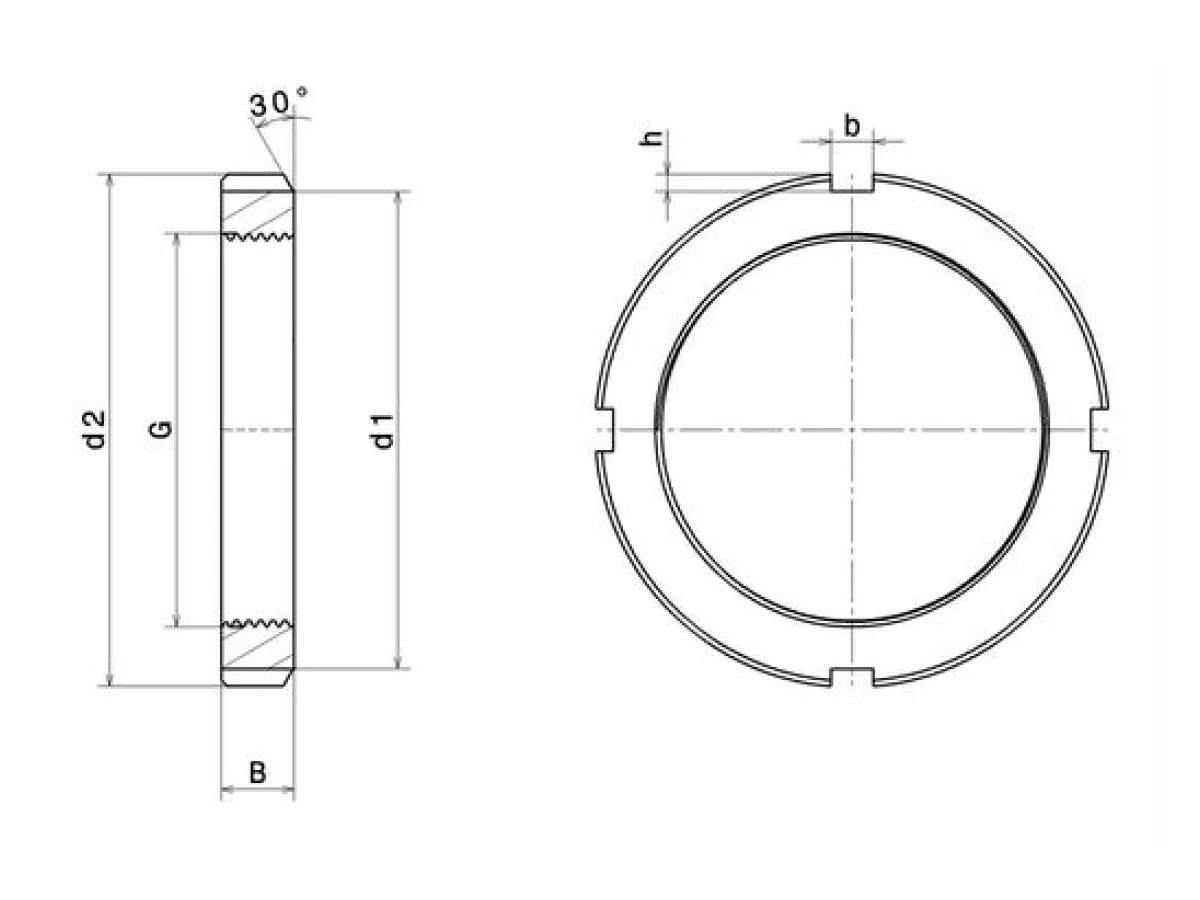

KME7 specifications
PRODUCT DEFINITION
- Brand
- SNR
- G - Thread designation
- M35x1.5
- d2 - Outer diameter of locknut
- 52 mm
- B - Nut width
- 11,5 mm
- d1 - Outer diameter of the locking surface of the nut
- 42,6 mm
- Chamfer angle of the nut
- 0 °
- b - Notch width
- 5 mm
- h - Notch depth
- 2 mm
- Mass
- 0,08 kg
TECHNICAL CHARACTERISTICS
- Designation of the associated blocking device
- MB7
