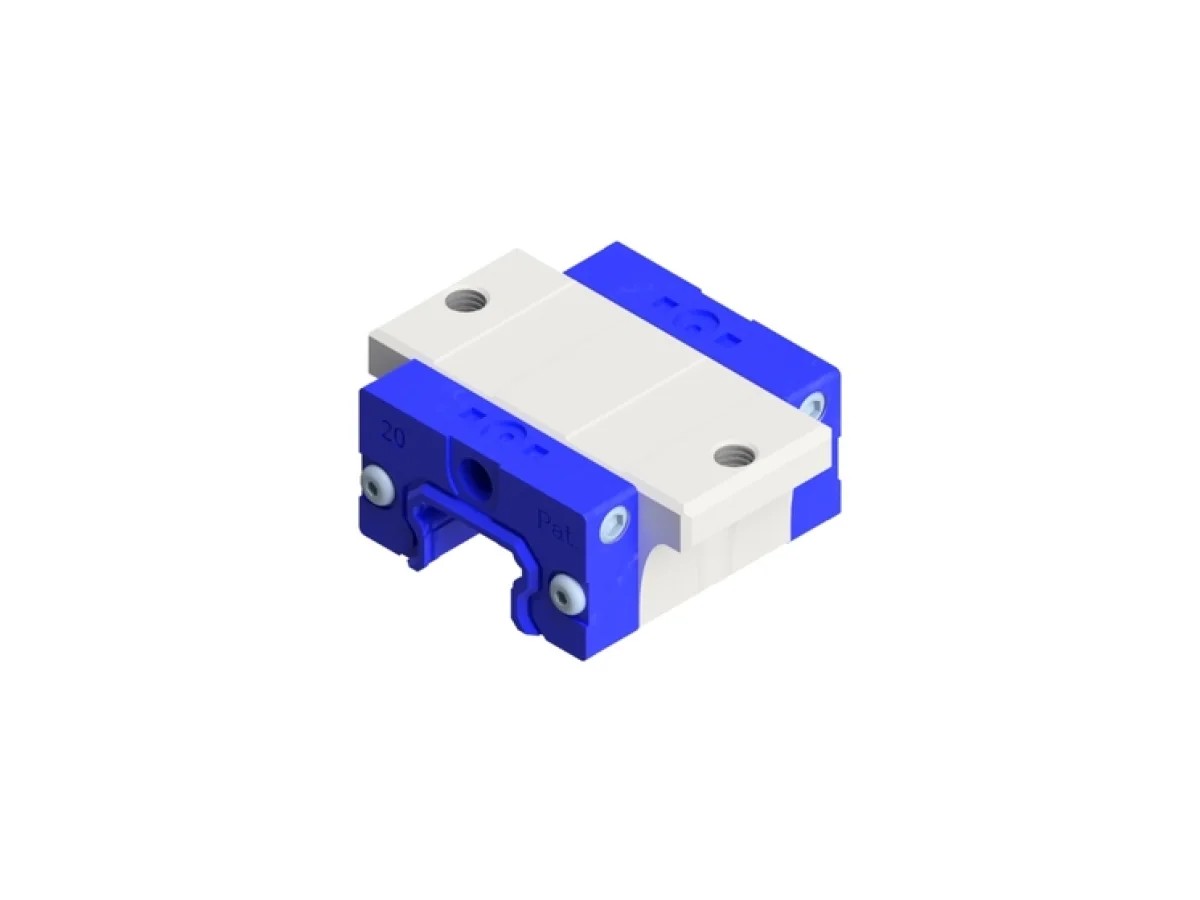

NTN-SNR Linear Guide LGBXS15FSSSNZ2-N is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

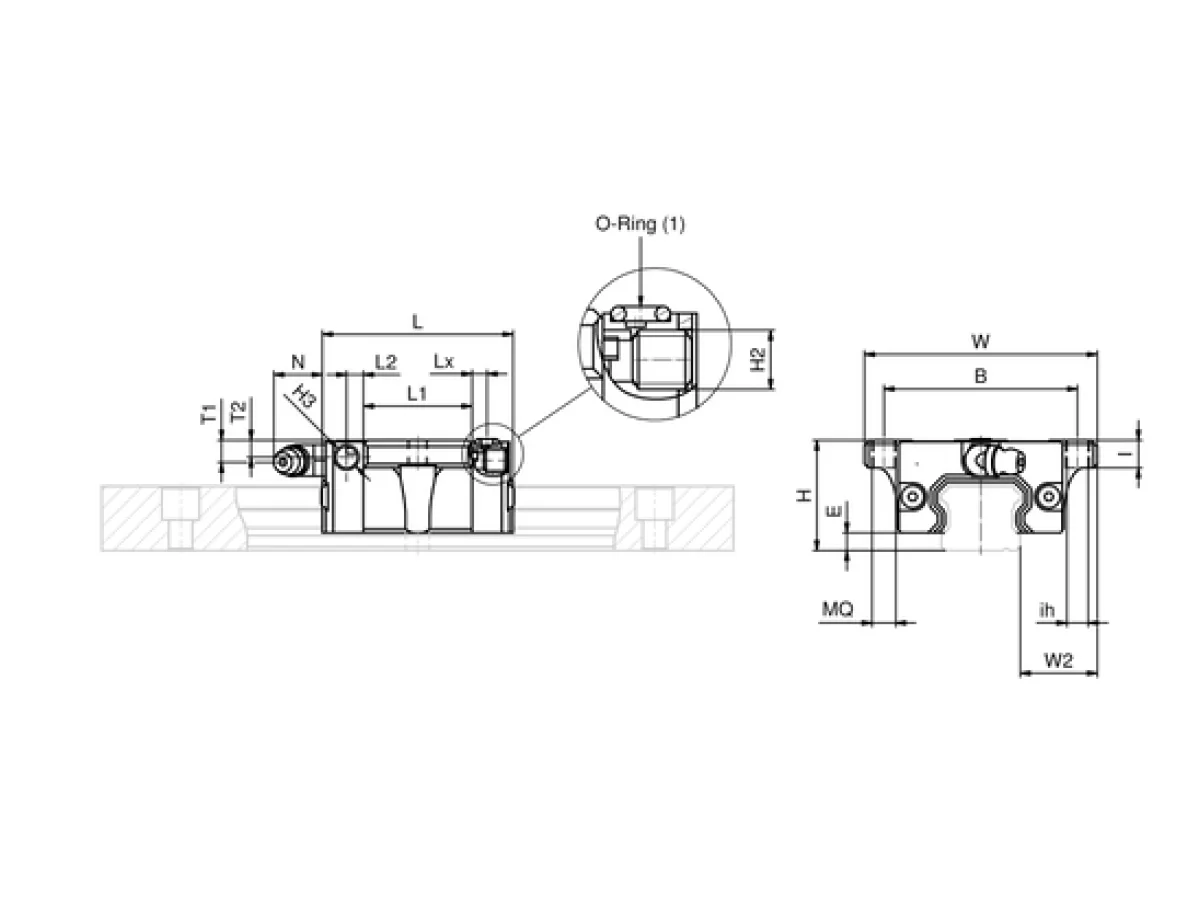

LGBXS15FSSSNZ2-N specifications
PRODUCT DEFINITION
- Brand
- SNR
- Series
- LGB
- Carriage version
- X
- Carriage Height
- S
- Size
- 15
- Design type
- FS
- Sealing
- SS - End seals on both sides, inner and side seals
- Precision class
- N
- Preload class
- Z2
- Material
- Carbon steel
- Special options
- N - Standard
- Lubrication connection
- 02 - Cup head grease nipple 0°
- Lubricant
- A - SNR LUB HEAVY DUTY
- H
- 24 mm
- W
- 52 mm
- W2
- 18,5 mm
- E
- 3,3 mm
- L - Length
- 40,6 mm
- B - Flange width
- 41 mm
- MQ
- M 5
- ih
- 4,4 mm
- l
- 7,5 mm
- L1
- 22,2 mm
- H2
- M 4
- T1
- 5,5 mm
- N
- 5,7 mm
- T2
- 4,5 mm
- L2
- 4,2 mm
- H3
- M 4
- Lx
- 3 mm
- Mass
- 0,12 kg
PRODUCT PERFORMANCE
- C50
- 4700000 mN
- C100
- 3730000 mN
- C0
- 9900000 mN
- Mx
- 0,069 kN-m
- My
- 0,032 kN-m
- Mz
- 0,032 kN-m
