NTN-SNR Linear Guide LGBXS25BSSSNZ0-N is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.
LGBXS25BSSSNZ0-N specifications
PRODUCT DEFINITION
- Brand
- SNR
- Series
- LGB
- Carriage version
- X
- Carriage Height
- S
- Size
- 25
- Design type
- BS
- Sealing
- SS - End seals on both sides, inner and side seals
- Precision class
- N
- Preload class
- Z0
- Material
- Carbon steel
- Special options
- N - Standard
- Lubrication connection
- 00 - Hydraulic type grease nipple 67°
- Lubricant
- A - SNR LUB HEAVY DUTY

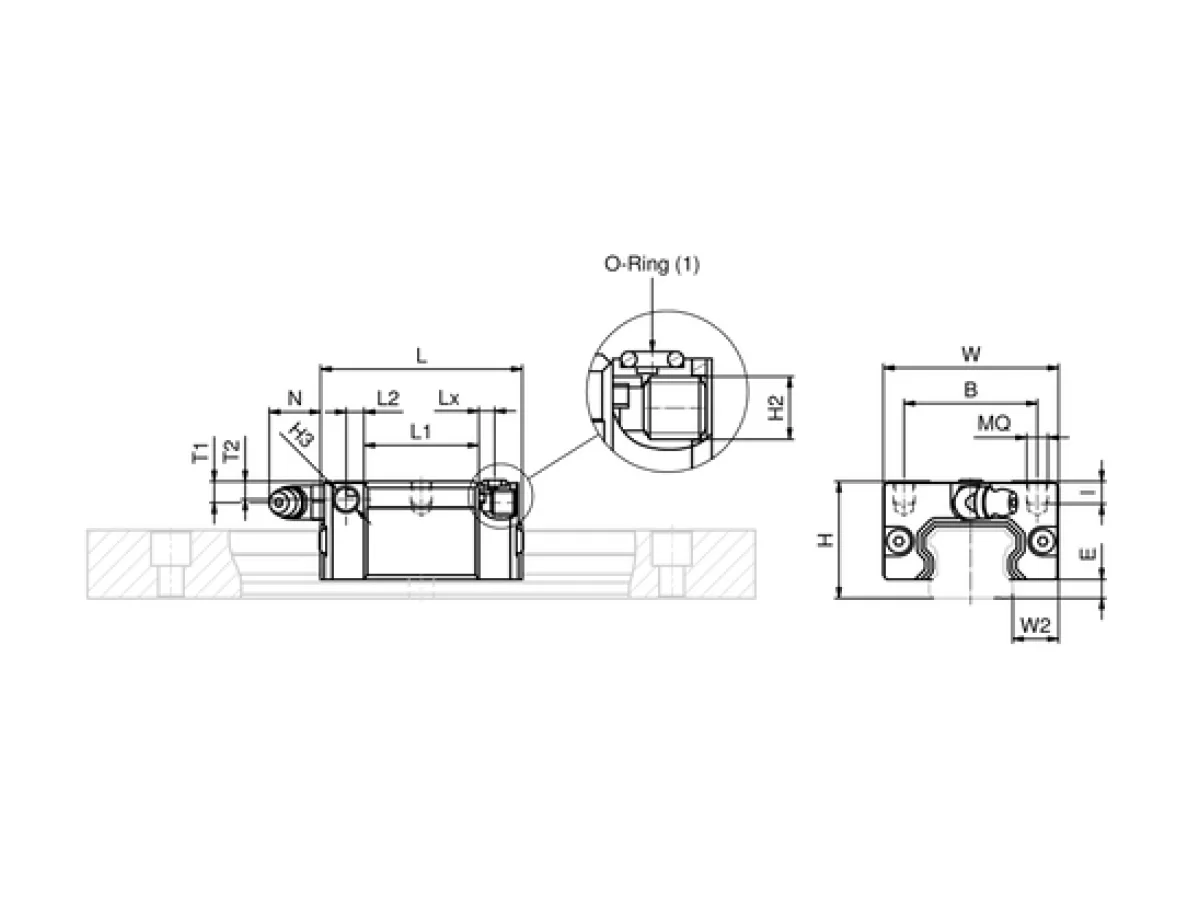

- H
- 33 mm
- W
- 48 mm
- W2
- 12,5 mm
- E
- 5,8 mm
- L - Length
- 54,5 mm
- B - Flange width
- 35 mm
- MQ
- M 6
- l
- 6,8 mm
- L1
- 32,3 mm
- H2
- M 6
- T1
- 7,2 mm
- N
- 12,2 mm
- T2
- 6,4 mm
- L2
- 4,65 mm
- H3
- M 6
- Lx
- 5 mm
- Mass
- 0,21 kg
PRODUCT PERFORMANCE
- C50
- 10450000 mN
- C100
- 8290000 mN
- C0
- 21340000 mN
- Mx
- 0,23 kN-m
- My
- 0,103 kN-m
- Mz
- 0,103 kN-m
