NTN-SNR Linear Guide LGBXX25BNSSNZ2-N is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.
LGBXX25BNSSNZ2-N specifications
PRODUCT DEFINITION
- Brand
- SNR
- Series
- LGB
- Carriage version
- X
- Carriage Height
- X
- Size
- 25
- Design type
- BN
- Sealing
- SS - End seals on both sides, inner and side seals
- Precision class
- N
- Preload class
- Z2
- Material
- Carbon steel
- Special options
- N - Standard
- Lubrication connection
- 00 - Hydraulic type grease nipple 67°
- Lubricant
- A - SNR LUB HEAVY DUTY

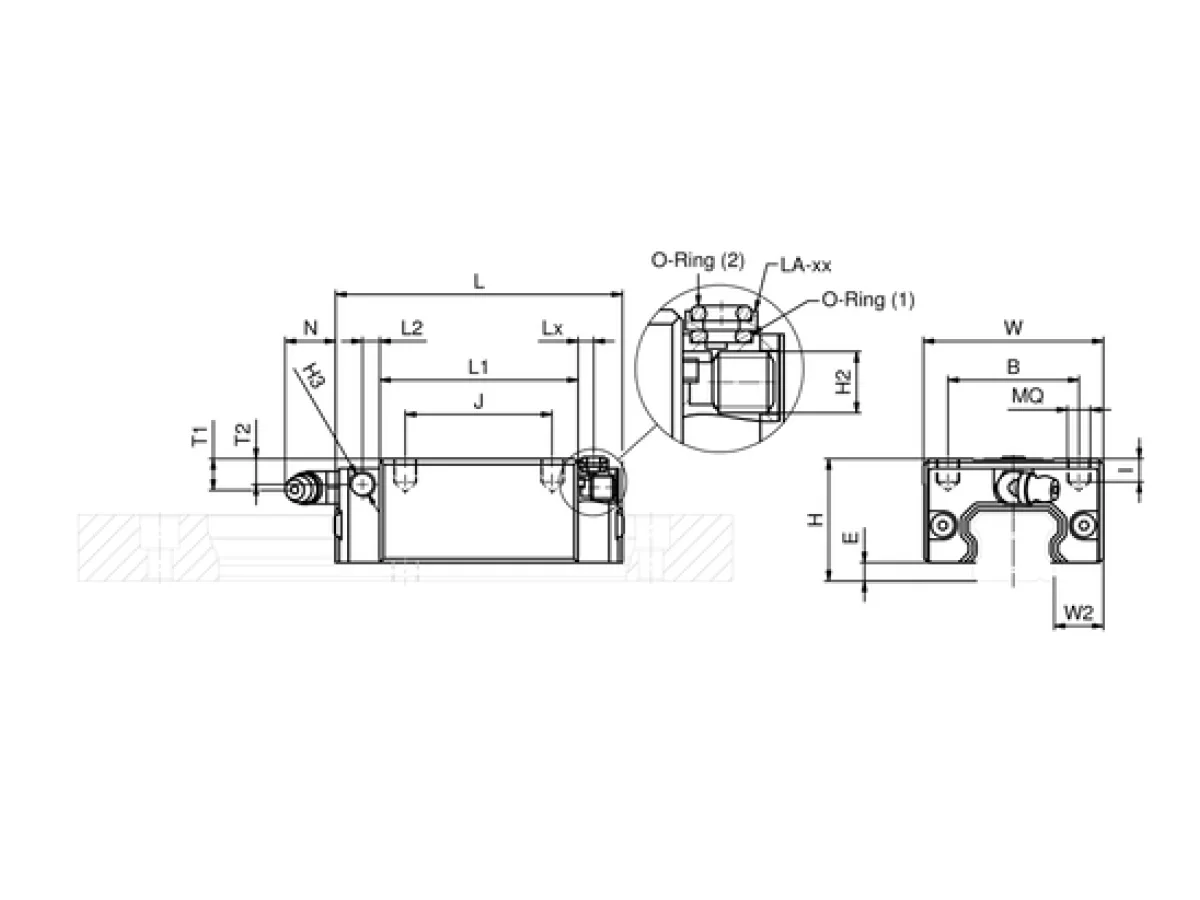

- H
- 36 mm
- W
- 48 mm
- W2
- 12,5 mm
- E
- 5,8 mm
- L - Length
- 79,7 mm
- B - Flange width
- 35 mm
- J
- 35 mm
- MQ
- M 6
- l
- 9 mm
- L1
- 57,5 mm
- H2
- M 6
- T1
- 10,2 mm
- N
- 12,2 mm
- T2
- 9,4 mm
- L2
- 4,65 mm
- H3
- M 6
- Lx
- 5 mm
- Mass
- 0,4 kg
PRODUCT PERFORMANCE
- C50
- 20440000 mN
- C100
- 16220000 mN
- C0
- 41730000 mN
- Mx
- 0,447 kN-m
- My
- 0,358 kN-m
- Mz
- 0,358 kN-m
