PRODUCT DEFINITION

Brand

SNR

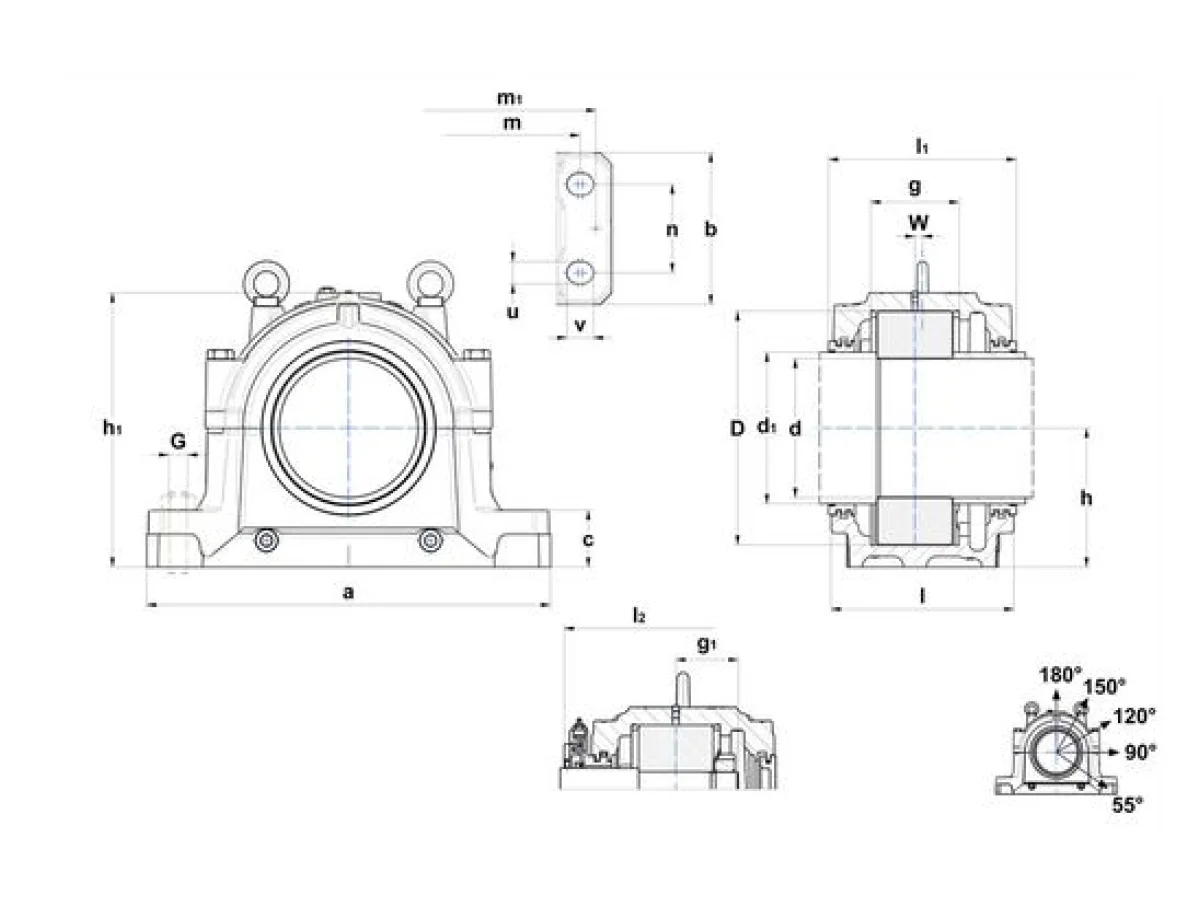

d - Shaft diameter

280 mm

d1 - Shaft diameter outlet large

300 mm

a - Housing length

790 mm

b - Housing foot width

280 mm

c - Housing foot height

105 mm

g - Bearing seat width

166 mm

h - Bearing center height

280 mm

h1 - Housing height

551 mm

l - Housing mid width

320 mm

l1 - Width over TS

330 mm

l2 - Width over TA

412 mm

m - Mounting hole/punches distance (length)

670 mm

m1 - Distance punches dowel pins

740 mm

n - Mounting hole distance (width)

160 mm

u - Mounting hole (width)

42 mm

v - Mounting hole (length)

50 mm

D - Bearing seat diameter

460 mm

g1 - Distance small shaft shoulder to bearing center

134 mm

W - Bearing distance

16 mm

Housing weight

235 kg

Material of Housing

ductile cast

Initial grease quantity

8,4 l

BOLTS

G - Fixing bolts

M36

Recommended torque fixing bolts

1750 N-m

Connection bolts

M30x220

Recommended torque connection bolts

870 N-m

Eye bolt(s)

M24

Maximum loads 120°

1300000000 mN

Maximum loads 150°

750000000 mN

Maximum loads 180°

650000000 mN

BREAKING LOADS

Breaking loads P 0°

7200000000 mN

Breaking loads P 55°

9000000000 mN

Breaking loads P 90°

4300000000 mN

Breaking loads P 120°

3200000000 mN

Breaking loads P 150°

2800000000 mN

Breaking loads P 180°

3600000000 mN

ASSOCIATED COMPONENTS - GENERAL

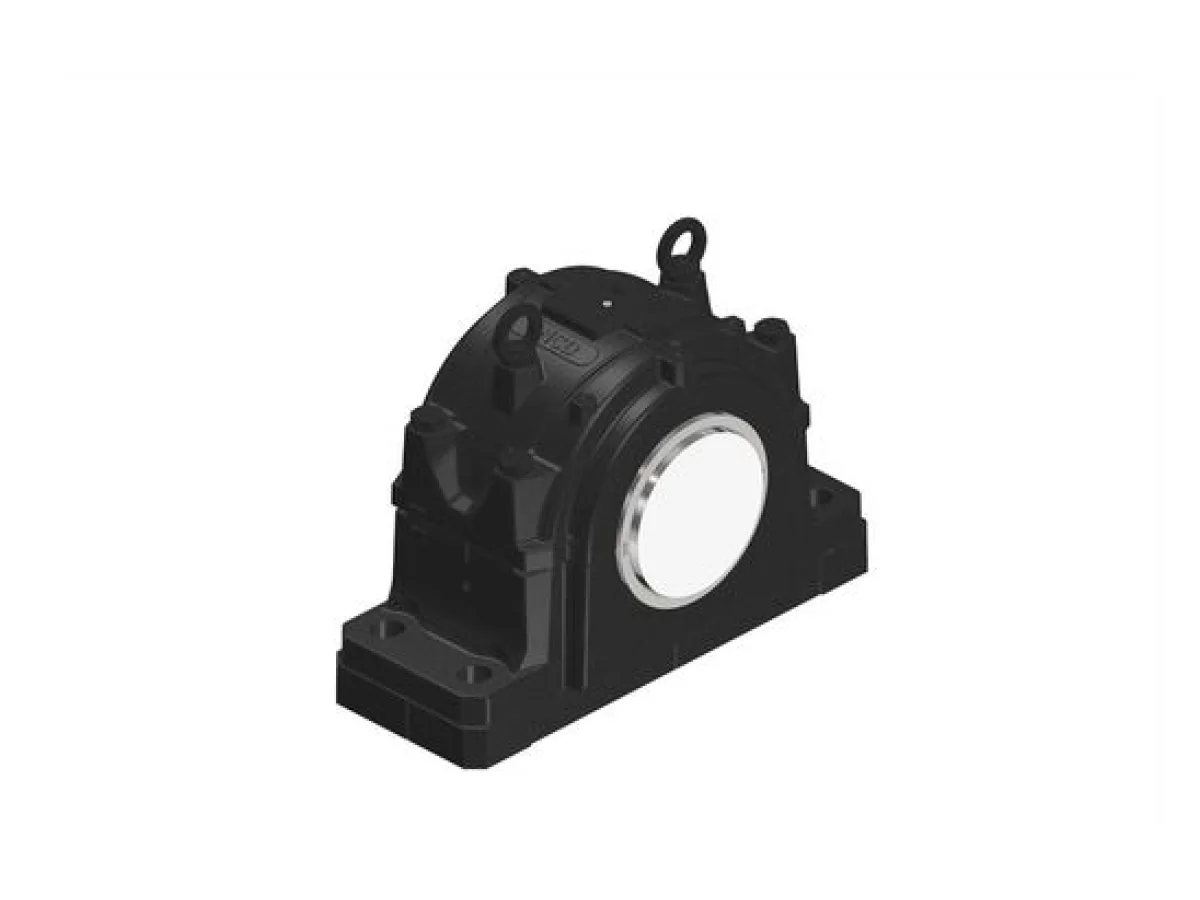

Designation of housing

SNCD3156R

Bearing

23156

Fixing rings

2 x FR460x10x10

Labyrinth sealing TS

TS-64

Taconite Sealing TA

TA-64

End cover TE

TE-64
