PRODUCT DEFINITION

Brand

SNR

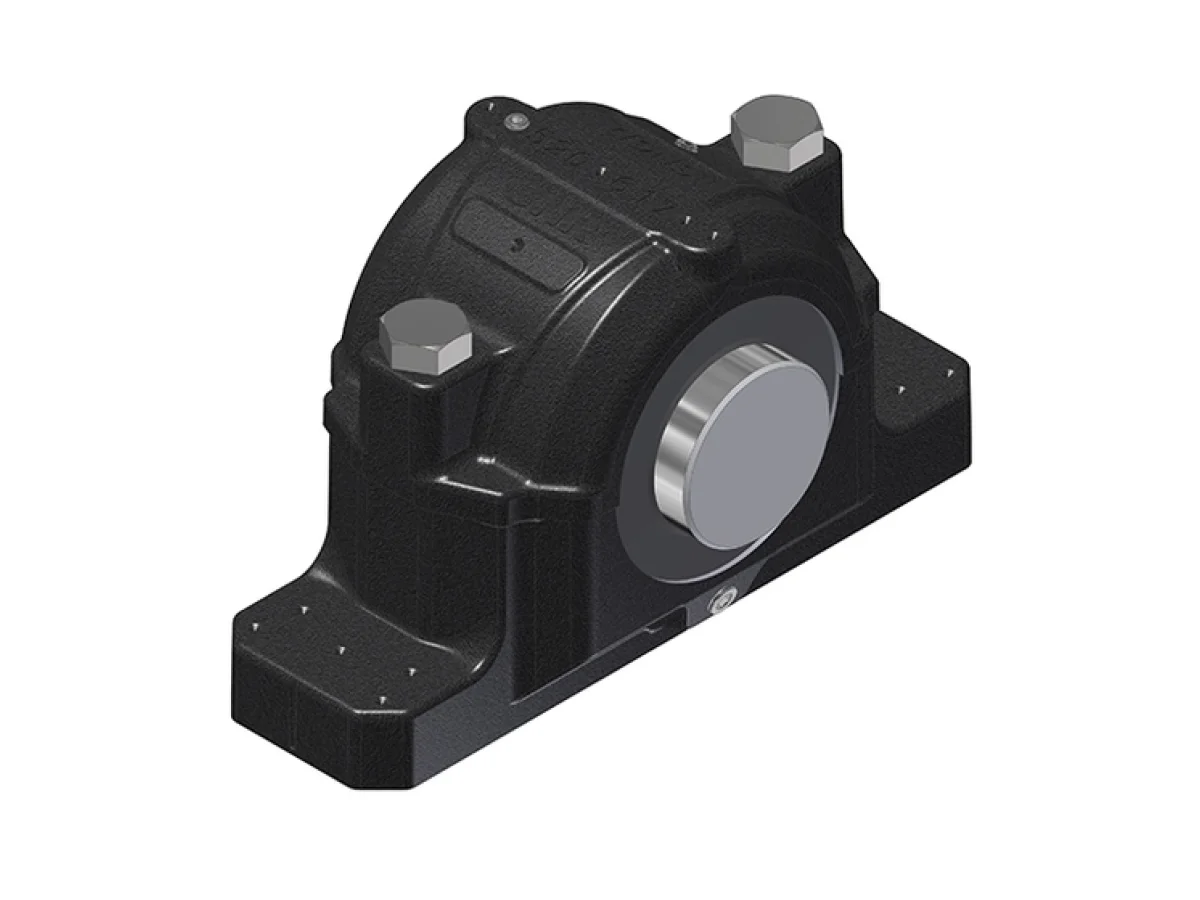

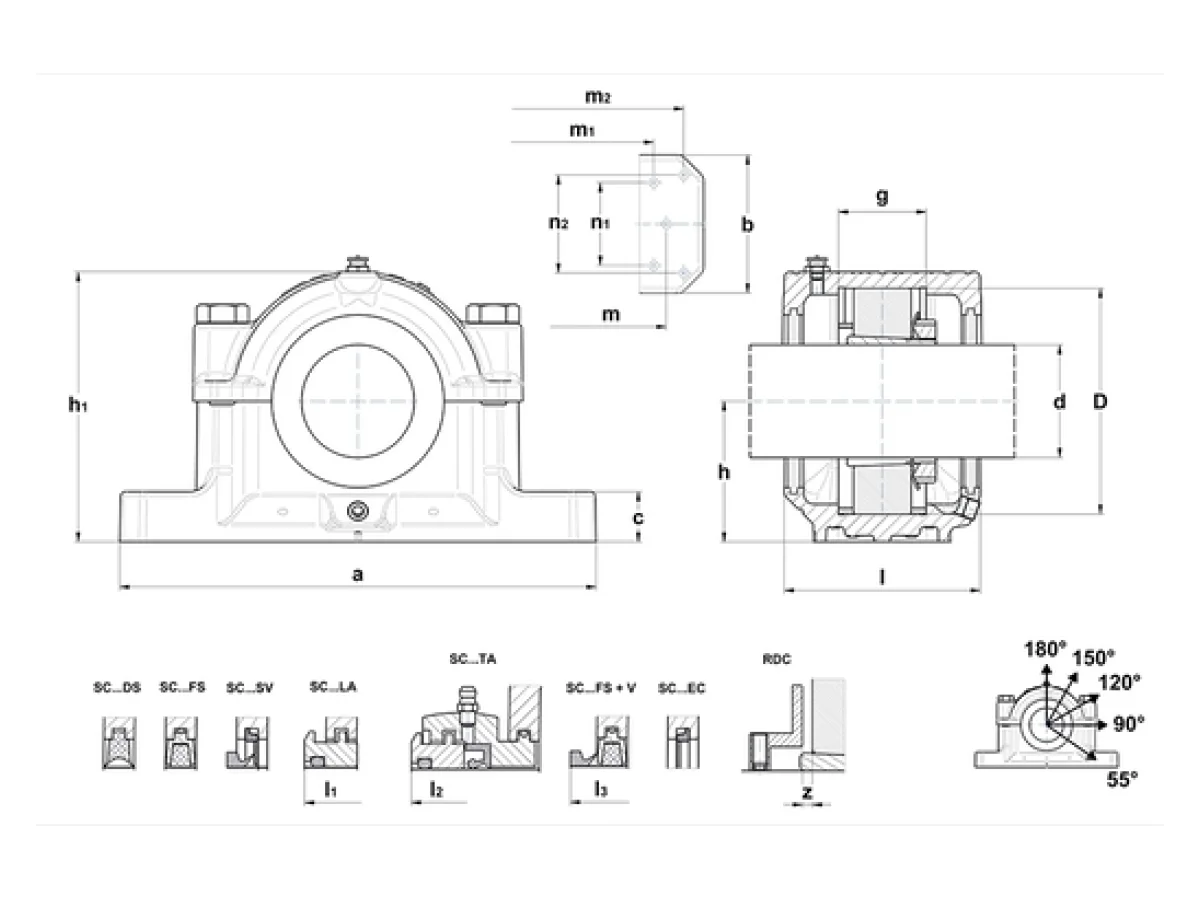

d - Shaft diameter

125 mm

D1 - Fixation holes MH1

35 mm

D2 - Fixation holes MH2

26 mm

a - Housing length

500 mm

b - Housing foot width

150 mm

c - Housing foot height

50 mm

g - Bearing seat width

98 mm

h - Bearing center height

150 mm

h1 - Housing height

302 mm

l - Housing mid width

205 mm

l1 - Width over TS

222 mm

l2 - Width over TA

284 mm

l3 - Width over V-ring

236

m - Mounting hole/punches distance (length)

420 mm

m1 - Distance punches (additional holes)

400 mm

n1 - Distance punches for additional holes (width)

92 mm

m2 - Distance punches (dowel pins)

458 mm

n2 - Distance punches for dowel pins (width)

108 mm

D - Bearing seat diameter

250 mm

z - RDC/bearing distance

4 mm

Initial grease quantity

2 l

Diameter dowel pins

8 mm

m3 - Distance blind hole bottom pins

327 mm

SEALINGS AND COVER

Sealing DS

SC 528 DS

Sealing LA

SC 528 LA

Sealing FS

SC 528 FSS

Sealing TA

SC 528 TA

Sealing SV

SC 528 SV

end cover EC

SC228-528EC

V-ring option

V130A

BOLTS

Connection bolts

M24x140

Recommended torque connection bolts

500 N-m

Maximum loads 120°

360000000 mN

Maximum loads 150°

210000000 mN

Maximum loads 180°

180000000 mN

BREAKING LOADS

Breaking loads P 0°

2250000000 mN

Breaking loads P 55°

1908000000 mN

Breaking loads P 90°

1134000000 mN

Breaking loads P 120°

855000000 mN

Breaking loads P 150°

774000000 mN

Breaking loads P 180°

954000000 mN

ASSOCIATED COMPONENTS - GENERAL

Regulation disc

RDC528

ASSOCIATED COMPONENTS - OPTION 1

Bearing

22228K

Adapter sleeve

H 3128

Fixing ring (x2)

FR250x15x6

ASSOCIATED COMPONENTS - OPTION 2

Bearing

23228K

Adapter sleeve

H 2328

Fixing ring (x2)

FR250x5x6
