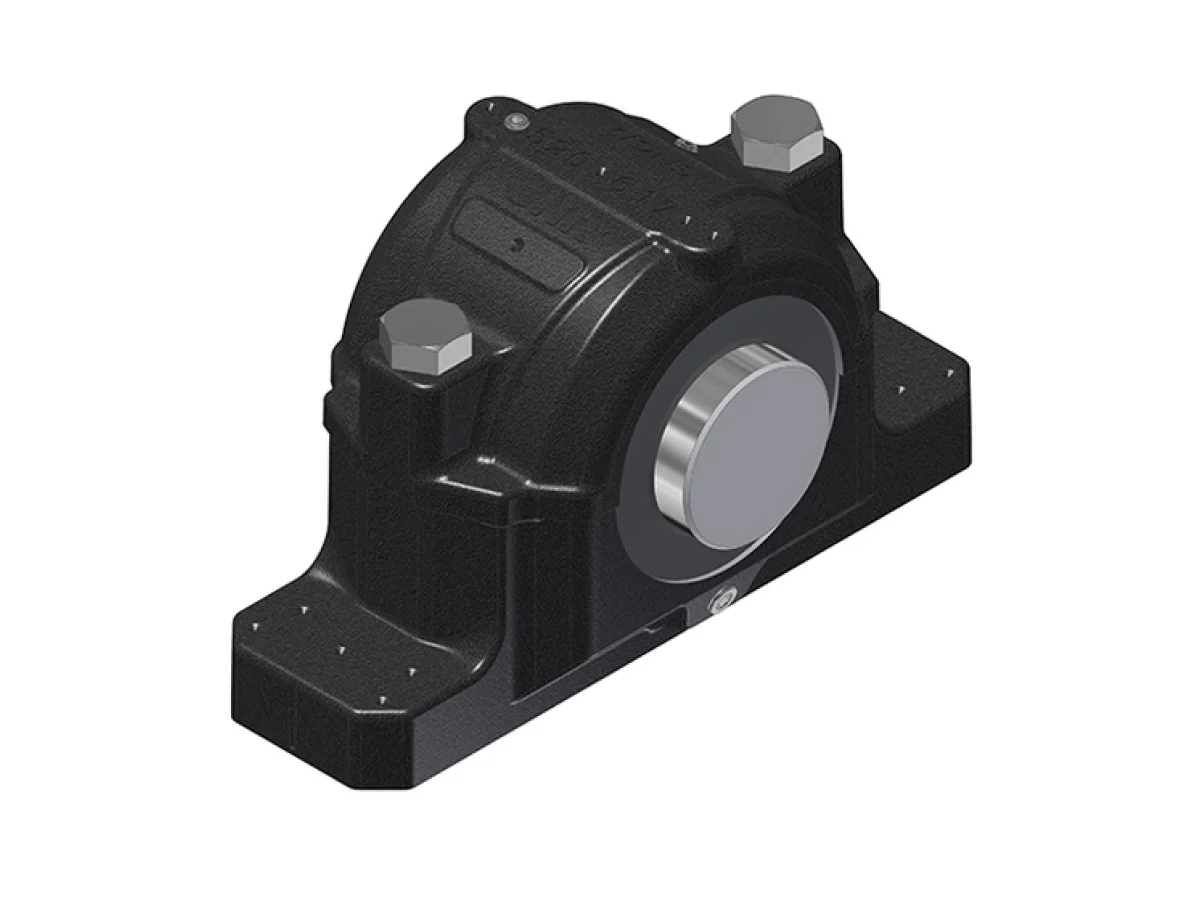

PRODUCT DEFINITION

Brand

SNR

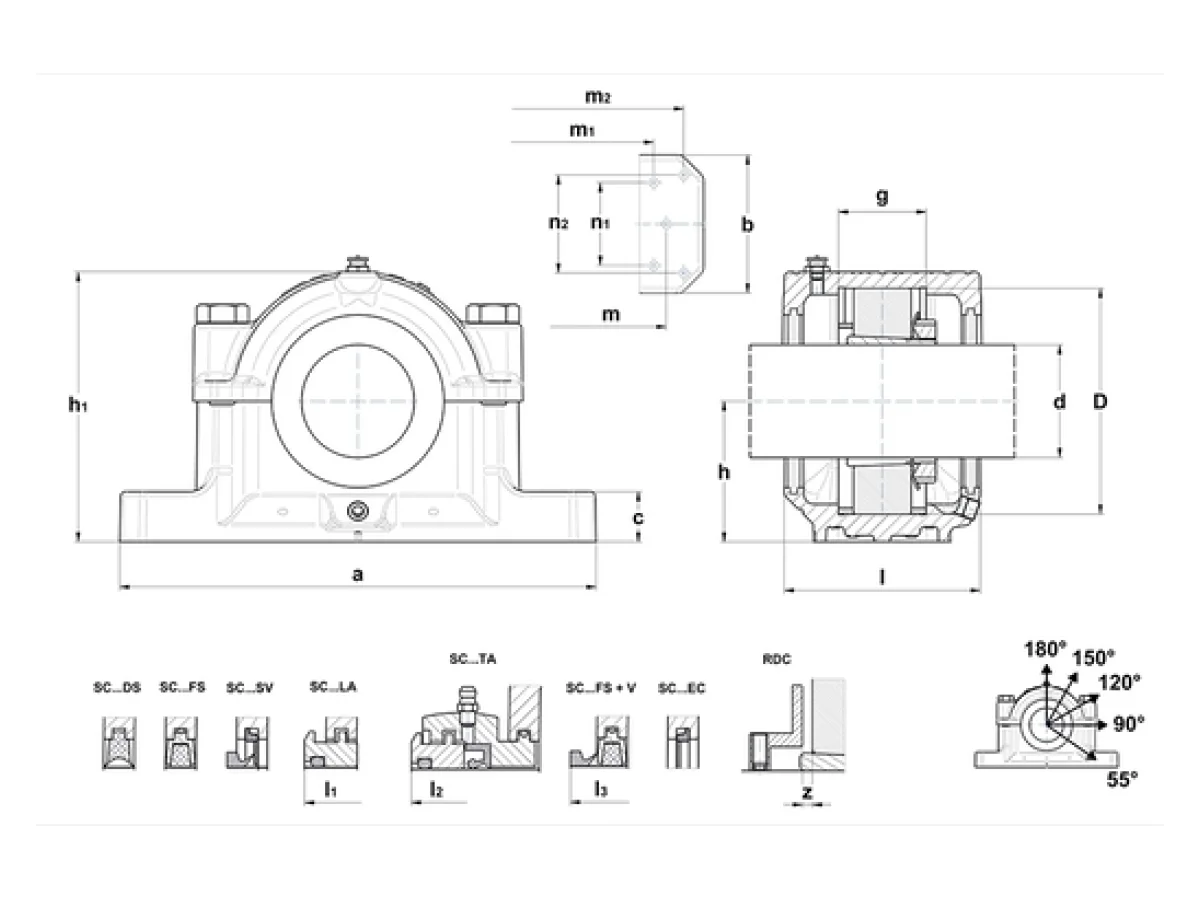

d - Shaft diameter

135 mm

a - Housing length

530 mm

b - Housing foot width

160 mm

c - Housing foot height

60 mm

g - Bearing seat width

106 mm

h - Bearing center height

160 mm

h1 - Housing height

323 mm

l - Housing mid width

220 mm

l1 - Width over TS

236 mm

l2 - Width over TA

301 mm

l3 - Width over V-ring

251

m - Mounting hole/punches distance (length)

450 mm

m1 - Distance punches (additional holes)

430 mm

n1 - Distance punches for additional holes (width)

100 mm

m2 - Distance punches (dowel pins)

486 mm

n2 - Distance punches for dowel pins (width)

116 mm

u - Mounting hole (width)

35 mm

v - Mounting hole (length)

42 mm

D - Bearing seat diameter

270 mm

z - RDC/bearing distance

4 mm

Initial grease quantity

2,5 l

Diameter dowel pins

8 mm

m3 - Distance blind hole bottom pins

352 mm

SEALINGS AND COVER

Sealing DS

SC 530 DS

Sealing LA

SC 530 LA

Sealing FS

SC 530 FSS

Sealing TA

SC 530 TA

Sealing SV

SC 530 SV

end cover EC

SC230-530EC

V-ring option

V140A

BOLTS

G - Fixing bolts

M30

Recommended torque fixing bolts

1005 N-m

Connection bolts

M24x150

Recommended torque connection bolts

500 N-m

Maximum loads 120°

360000000 mN

Maximum loads 150°

210000000 mN

Maximum loads 180°

180000000 mN

BREAKING LOADS

Breaking loads P 0°

1400000000 mN

Breaking loads P 55°

1200000000 mN

Breaking loads P 90°

730000000 mN

Breaking loads P 120°

540000000 mN

Breaking loads P 150°

480000000 mN

Breaking loads P 180°

600000000 mN

ASSOCIATED COMPONENTS - GENERAL

Regulation disc

RDC530

ASSOCIATED COMPONENTS - OPTION 1

Bearing

22230K

Adapter sleeve

H 3130

Fixing ring (x2)

FR270x16,5x6

ASSOCIATED COMPONENTS - OPTION 2

Bearing

23230K

Adapter sleeve

H 2330

Fixing ring (x2)

FR270x5x6
