PRODUCT INFORMATION
Description and selection guidance
Multiple bearing housings, that allow the usage of different bearing combinations.

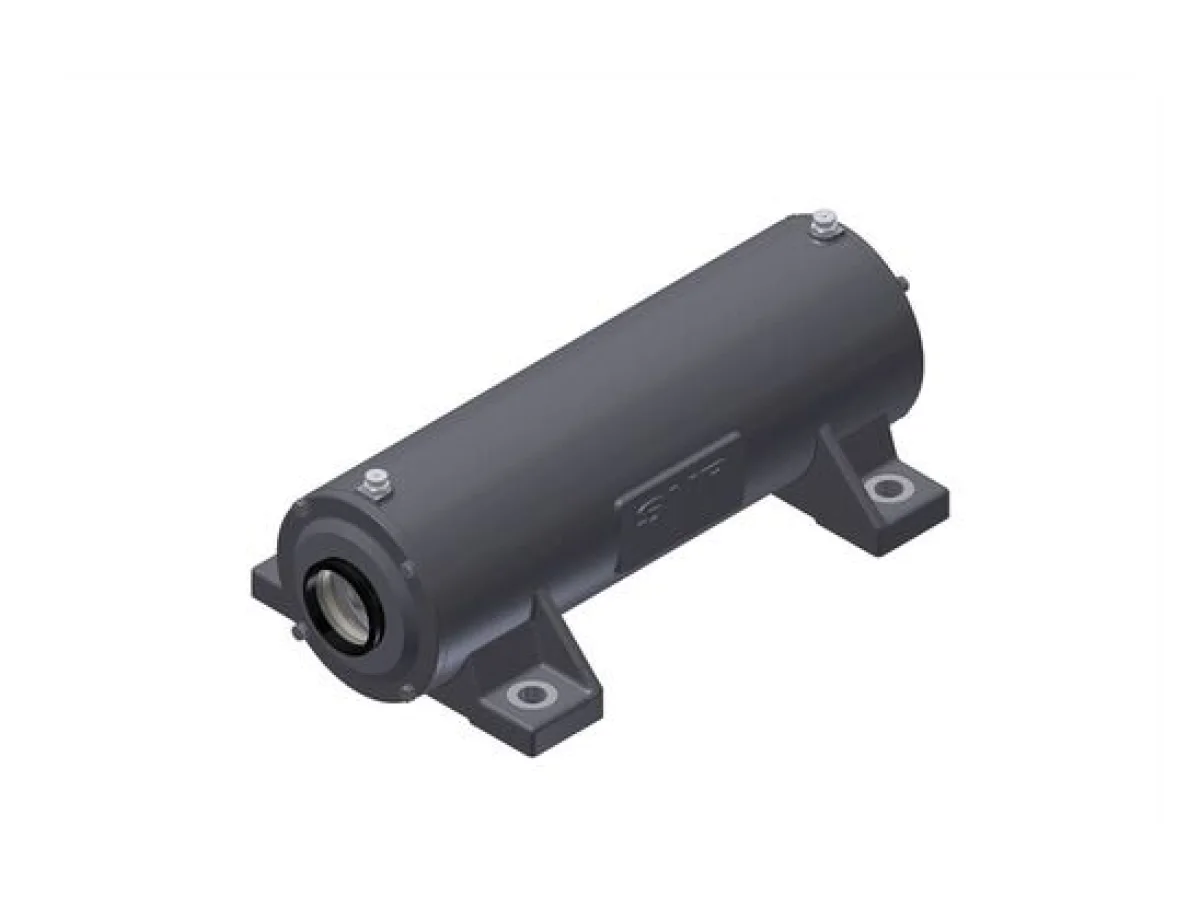

ZLG 309 AC specifications
PRODUCT DEFINITION
- Brand
- SNR

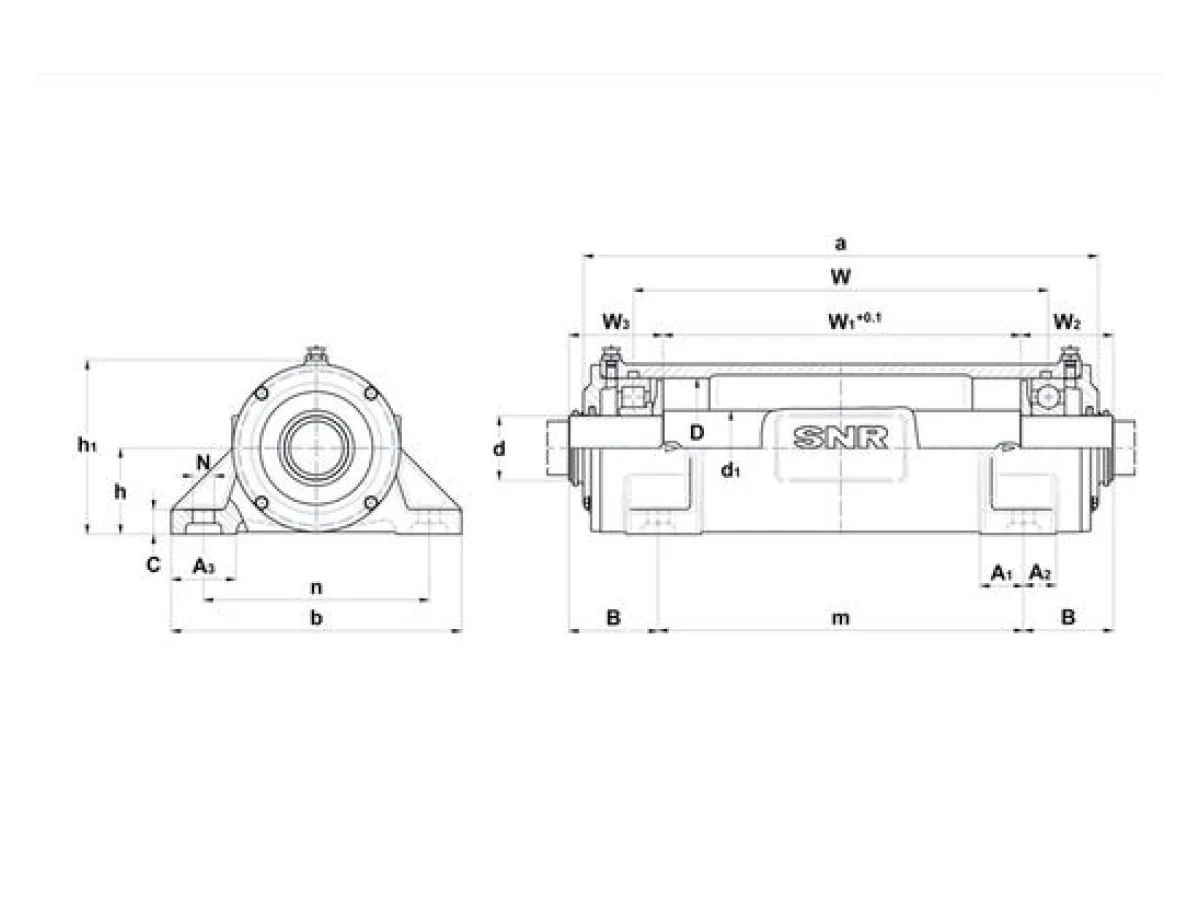

- d - Shaft diameter
- 45 mm
- d1 - Shaft diameter between bearings
- 55 mm
- a - Housing length
- 370 mm
- b - Housing foot width
- 210 mm
- c - Housing foot height
- 20 mm
- h - Bearing center height
- 70 mm
- h1 - Housing height
- 139 mm
- m - Mounting hole/punches distance (length)
- 250 mm
- n - Mounting hole distance (width)
- 170 mm
- N - Mounting hole diameter
- 15 mm
- B - Distance mounting hole to shaft step
- 72,5 mm
- W - Bearing distance
- 282,5 mm
- W1 - Central shaft length
- 236,5 mm
- W2 - Right shaft end length
- 78,5 mm
- A1
- 36 mm
- A2
- 26 mm
- A3 - ZLG foot width
- 45 mm
- D - Bearing seat diameter
- 100 mm
- Mass
- 16 kg
- Material of Housing
- grey cast
- Initial grease quantity
- 0,133 l
ASSOCIATED COMPONENTS - OPTION
- O-ring (optional)
- 100x4
BOLTS
- G - Fixing bolts
- M12
- Recommended torque fixing bolts
- 65 N-m
- Cover bolts
- M6x25
- Recommended torque cover bolts
- 7 N-m
