PRODUCT INFORMATION
Description and selection guidance

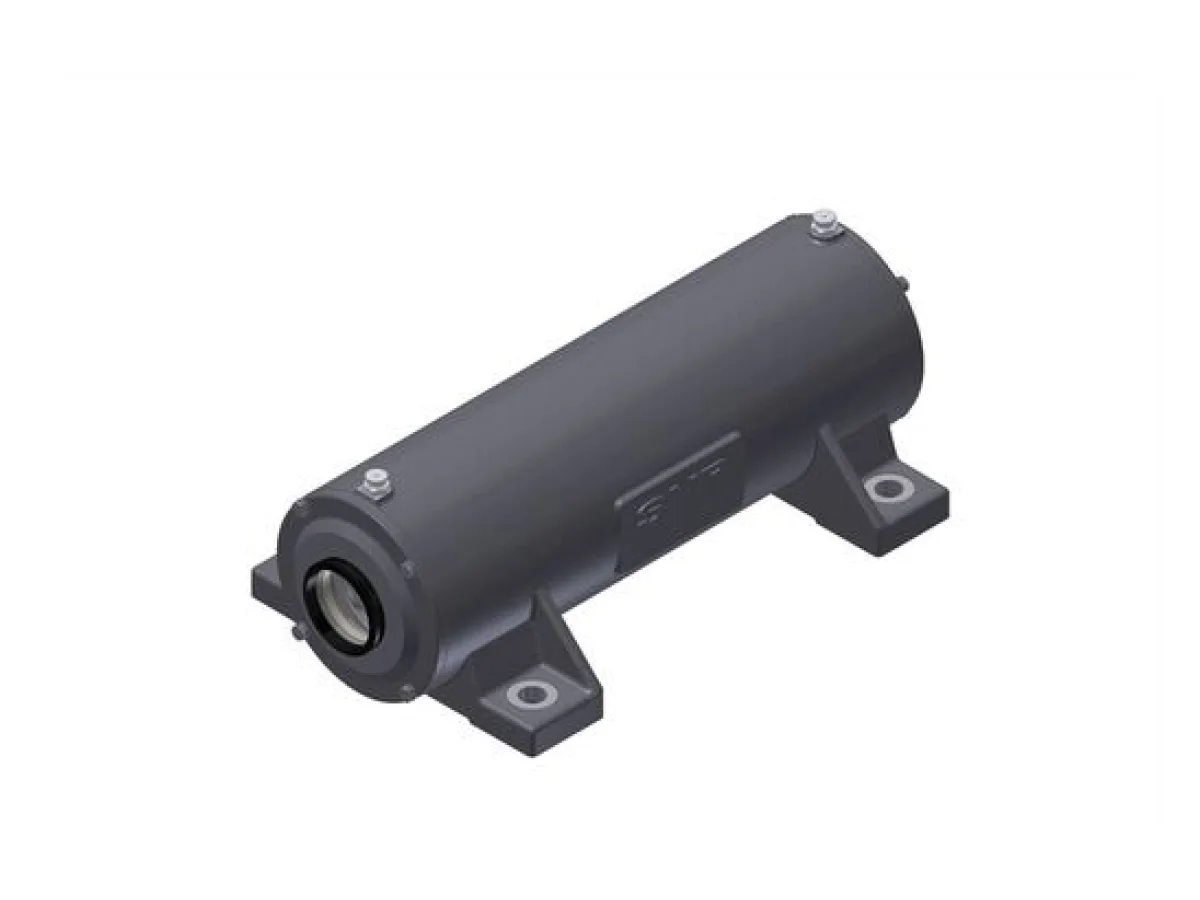

Multiple bearing housings, that allow the usage of different bearing combinations.

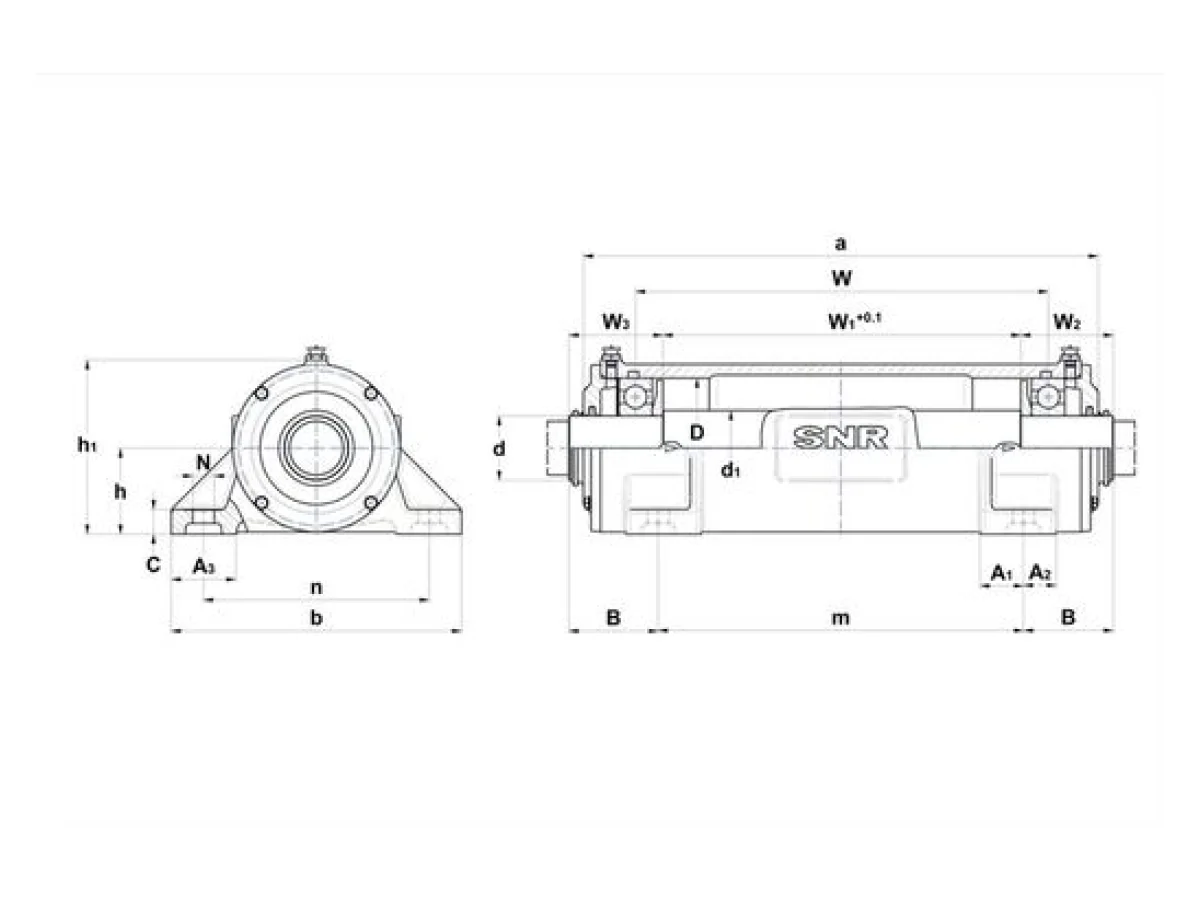

ZLG 310 AA specifications
PRODUCT DEFINITION
- Brand
- SNR
- d - Shaft diameter
- 50 mm
- d1 - Shaft diameter between bearings
- 60 mm
- a - Housing length
- 405 mm
- b - Housing foot width
- 210 mm
- c - Housing foot height
- 20 mm
- h - Bearing center height
- 70 mm
- h1 - Housing height
- 142 mm
- m - Mounting hole/punches distance (length)
- 275 mm
- n - Mounting hole distance (width)
- 170 mm
- N - Mounting hole diameter
- 15 mm
- B - Distance mounting hole to shaft step
- 77,5 mm
- W - Bearing distance
- 314,5 mm
- W1 - Central shaft length
- 265,5 mm
- W2 - Right shaft end length
- 81 mm
- A1
- 40 mm
- A2
- 30 mm
- A3 - ZLG foot width
- 45 mm
- D - Bearing seat diameter
- 110 mm
- Mass
- 19 kg
- Material of Housing
- grey cast
- Initial grease quantity
- 0,168 l
ASSOCIATED COMPONENTS - OPTION
- O-ring (optional)
- 110x4
BOLTS
- G - Fixing bolts
- M12
- Recommended torque fixing bolts
- 65 N-m
- Cover bolts
- M6x25
- Recommended torque cover bolts
- 7 N-m
