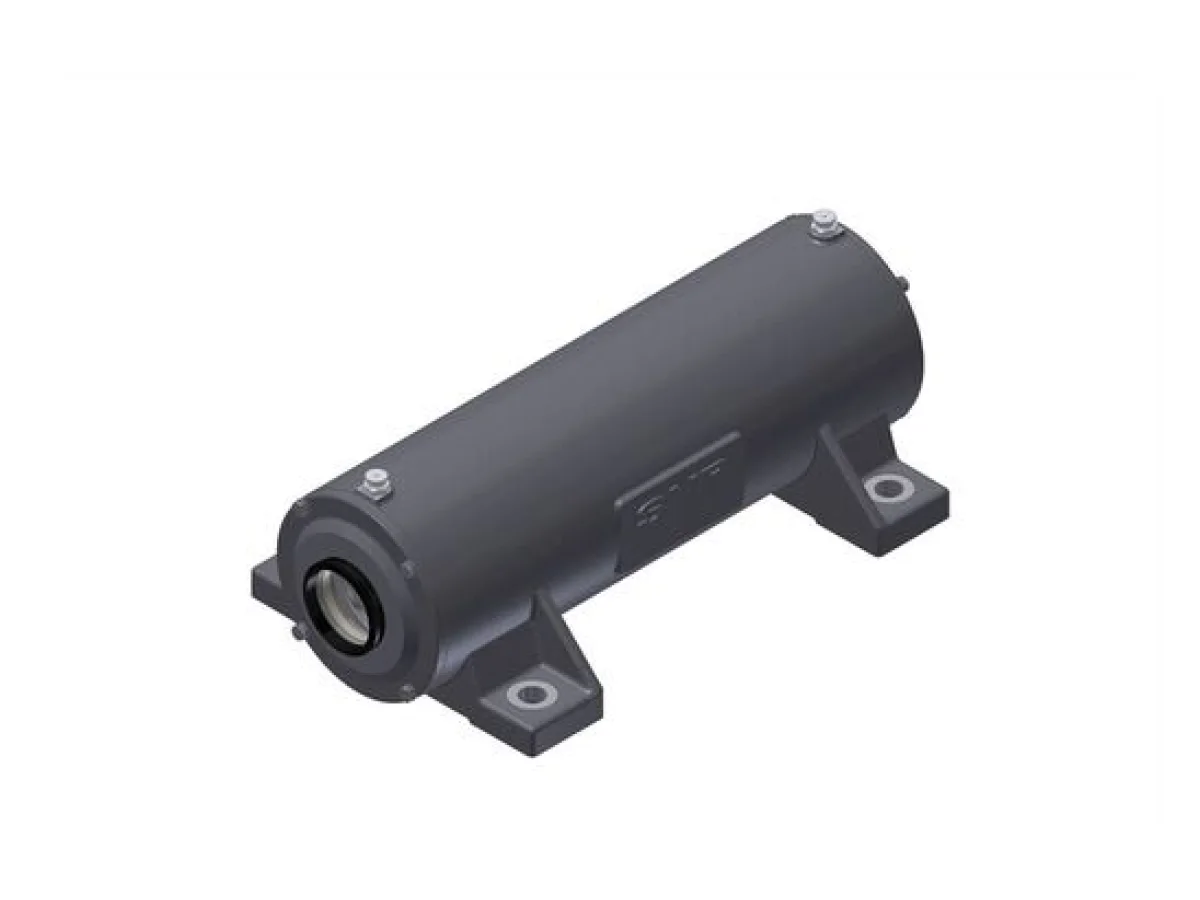

Multiple bearing housings, that allow the usage of different bearing combinations.

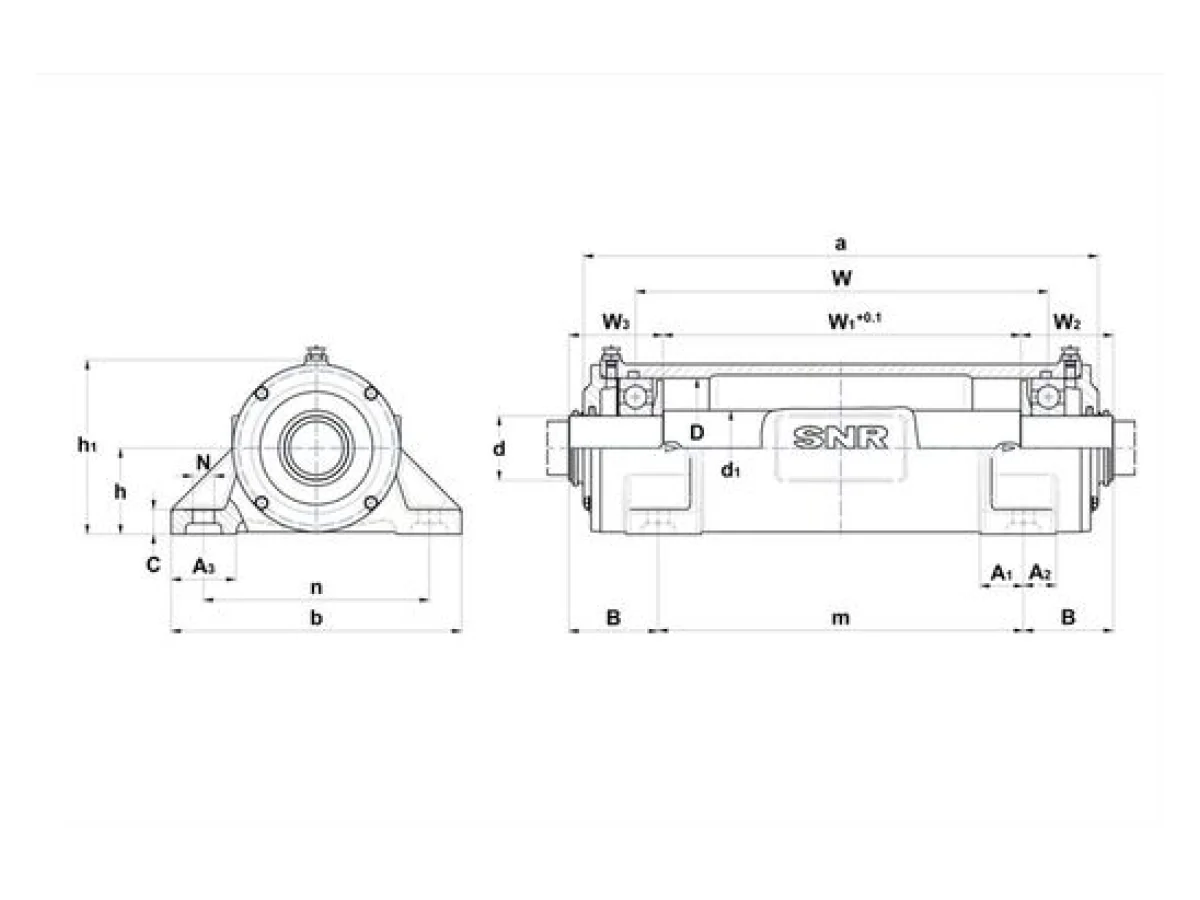

ZLG 324 AA specifications
PRODUCT DEFINITION
- Brand
- SNR
- d - Shaft diameter
- 120 mm
- d1 - Shaft diameter between bearings
- 140 mm
- a - Housing length
- 705 mm
- b - Housing foot width
- 500 mm
- c - Housing foot height
- 40 mm
- h - Bearing center height
- 160 mm
- h1 - Housing height
- 320 mm
- m - Mounting hole/punches distance (length)
- 540 mm
- n - Mounting hole distance (width)
- 410 mm
- N - Mounting hole diameter
- 35 mm
- B - Distance mounting hole to shaft step
- 100 mm
- W - Bearing distance
- 599,5 mm
- W1 - Central shaft length
- 521,5 mm
- W2 - Right shaft end length
- 107,5 mm
- A1
- 78 mm
- A2
- 60 mm
- A3 - ZLG foot width
- 115 mm
- D - Bearing seat diameter
- 260 mm
- Mass
- 150 kg
- Material of Housing
- grey cast
- Initial grease quantity
- 0,966 l
ASSOCIATED COMPONENTS - OPTION
- O-ring (optional)
- 260x7
BOLTS
- G - Fixing bolts
- M30
- Recommended torque fixing bolts
- 1005 N-m
- Cover bolts
- M10x30
- Recommended torque cover bolts
- 35 N-m
